Description
Specifications:
– Max. Current: 3A
– Max. Voltage: 250V
– Material: Durable plastic
– Structure: Mechanical, Electronic, Electromagnetic
– Terminal Type: Pin terminal
– IP Level: IP40
– Switch Combination: 1NO1NC, 2NO2NC
– Contact Resistance: ≤50mΩ
– Dielectric Strength: 1500V
– Operating Temperature: -25℃ to +55℃ (-13℉ to 131℉)
– Certification: CQC, CE
Advantages:
– Factory Direct Supply: As a reliable supplier, we offer competitive wholesale prices and ensure high-quality products.
– Durable and Reliable: With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, this switch is built to last.
– Versatile Application: Ideal for electric, home appliance, and industrial control applications.
– Customizable Options: Choose from multiple colors and switch combinations to fit your specific requirements.
After-Sales Service:
We are committed to providing excellent customer service. If you have any questions or concerns, our team is ready to assist you promptly.
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
-25℃ to +55℃
|
Why Choose Our 17mm Square Push Button Switch?
Our 17mm Square Push Button Switch stands out for its durability, reliability, and versatility. With a factory-direct supply, we offer competitive wholesale prices without compromising on quality. The switch's mechanical and electronic life cycles ensure long-lasting performance, making it ideal for various applications.
Key Features and Benefits

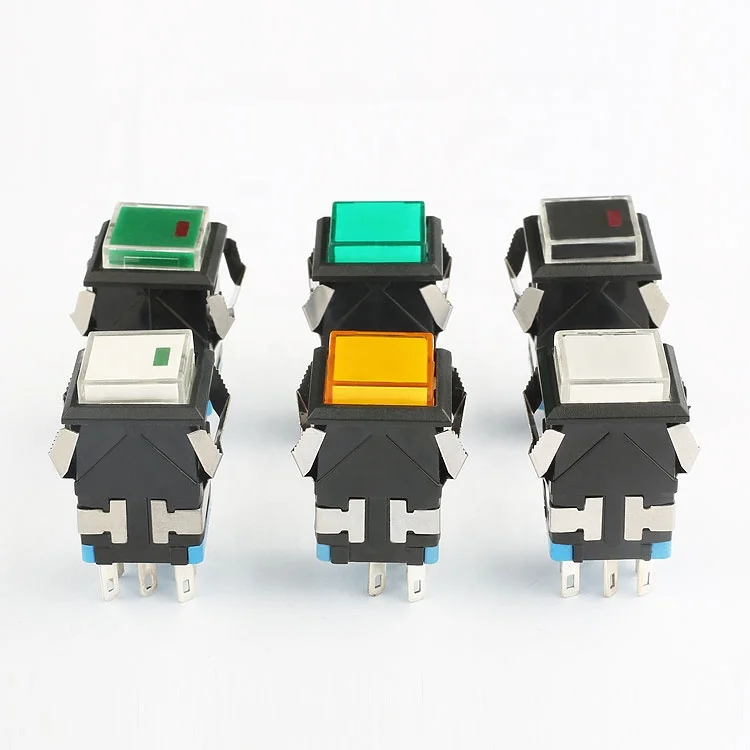

The switch features an illuminated dot, available in multiple colors, providing visual feedback and enhancing user experience. Its durable plastic construction and IP40 level of protection make it suitable for harsh environments. Additionally, the switch's 1NO1NC and 2NO2NC combinations offer flexibility in circuit design.
Applications and Customization
Our push button switch is widely used in electric, home appliance, and industrial control applications. With customizable color options and switch combinations, it can be tailored to meet your specific needs. Choose our factory-direct wholesale product for a reliable and cost-effective solution.
