Description

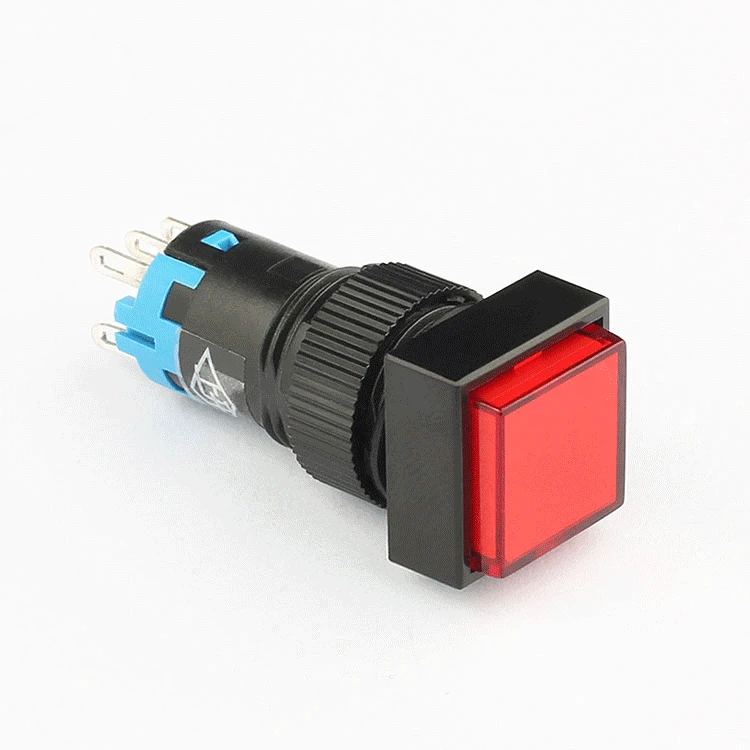

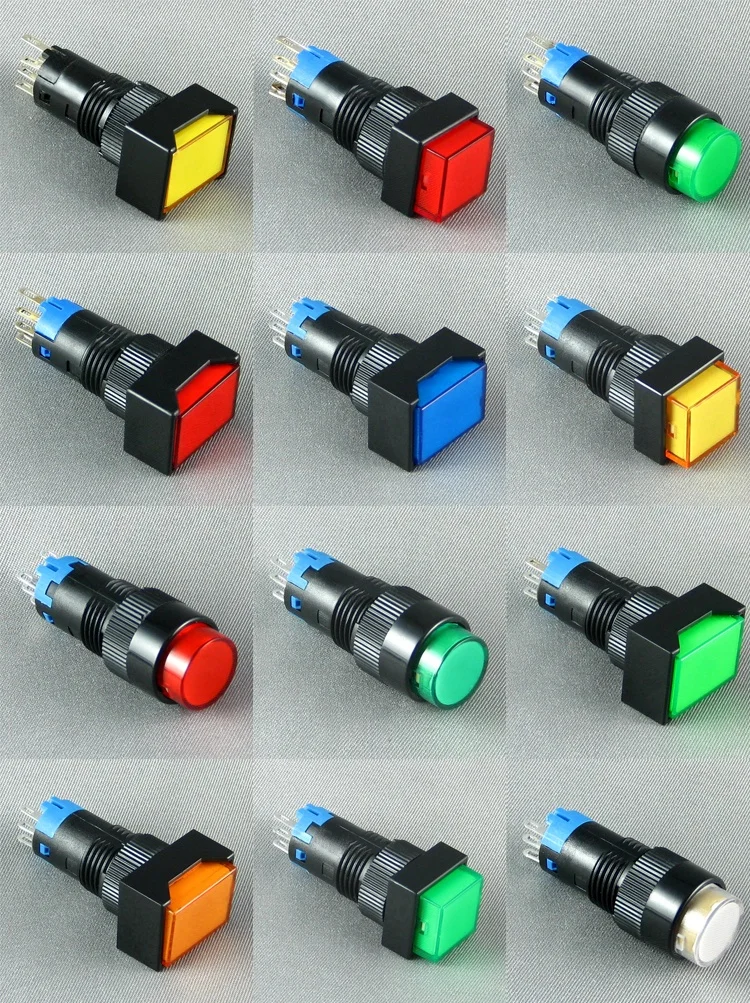

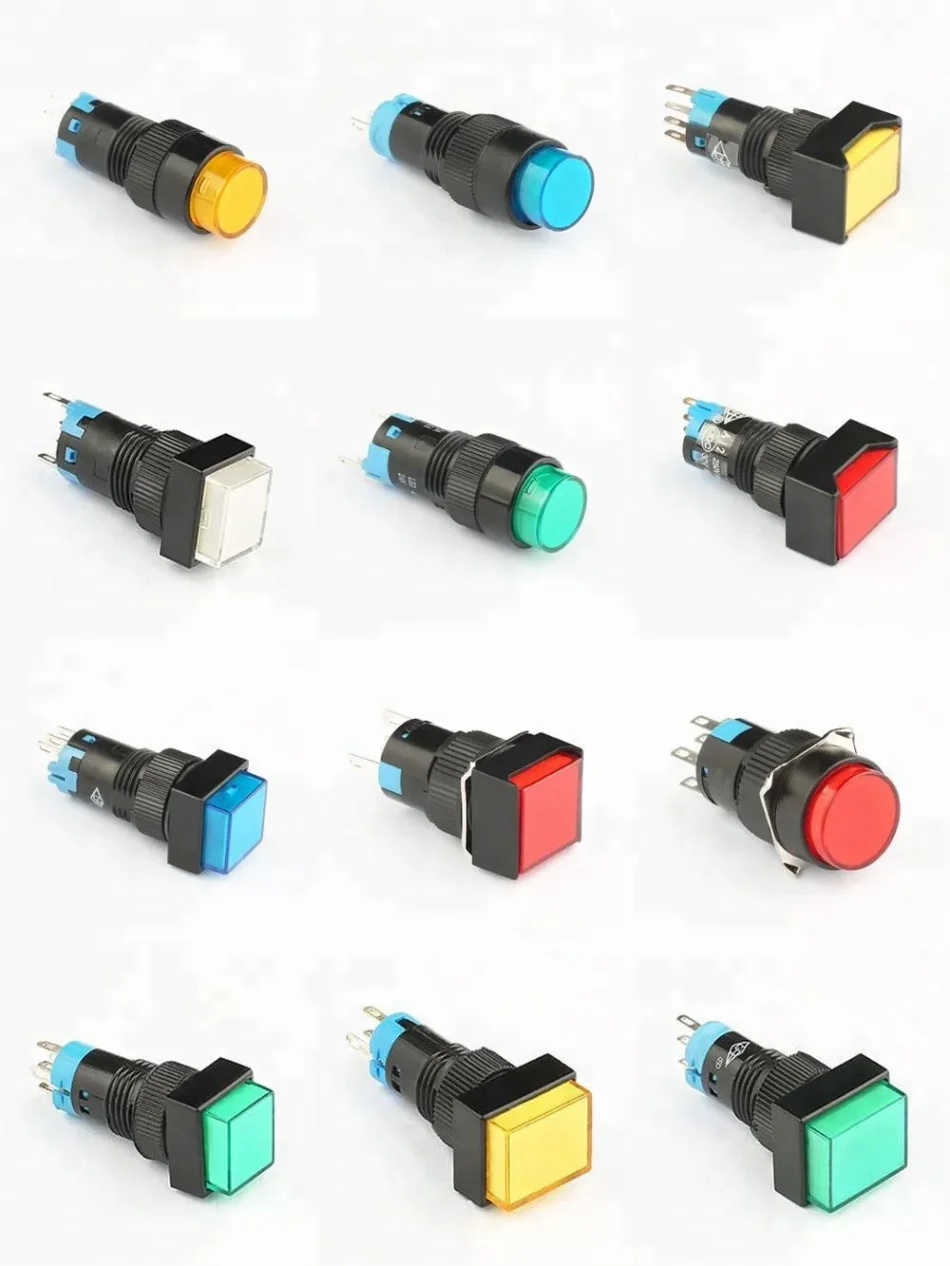

Our Factory Wholesale 1NO1NC 12mm LED Momentary Push Button Switch is a high-quality product designed for various industrial and commercial applications. As a direct supplier, we offer competitive pricing and bulk purchasing options. This switch features a 12mm panel cutout, making it suitable for compact installations. The built-in LED light provides clear visual indication of the switch status, available in multiple colors including Red, Yellow, Green, Blue, White, and Black. Made from durable plastic, it ensures long-lasting performance. With a max. rating current of 3A and voltage of 250V AC, it meets the demands of heavy-duty use. The switch has a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric strength of 1500V, ensuring safety and reliability. It operates within a temperature range of -5℃ to 75℃ and has an IP40 protection level, suitable for indoor use. Our switch is CQC and CE certified, guaranteeing quality and compliance. Choose our factory-direct switch for cost-effective, reliable, and efficient solutions.
|

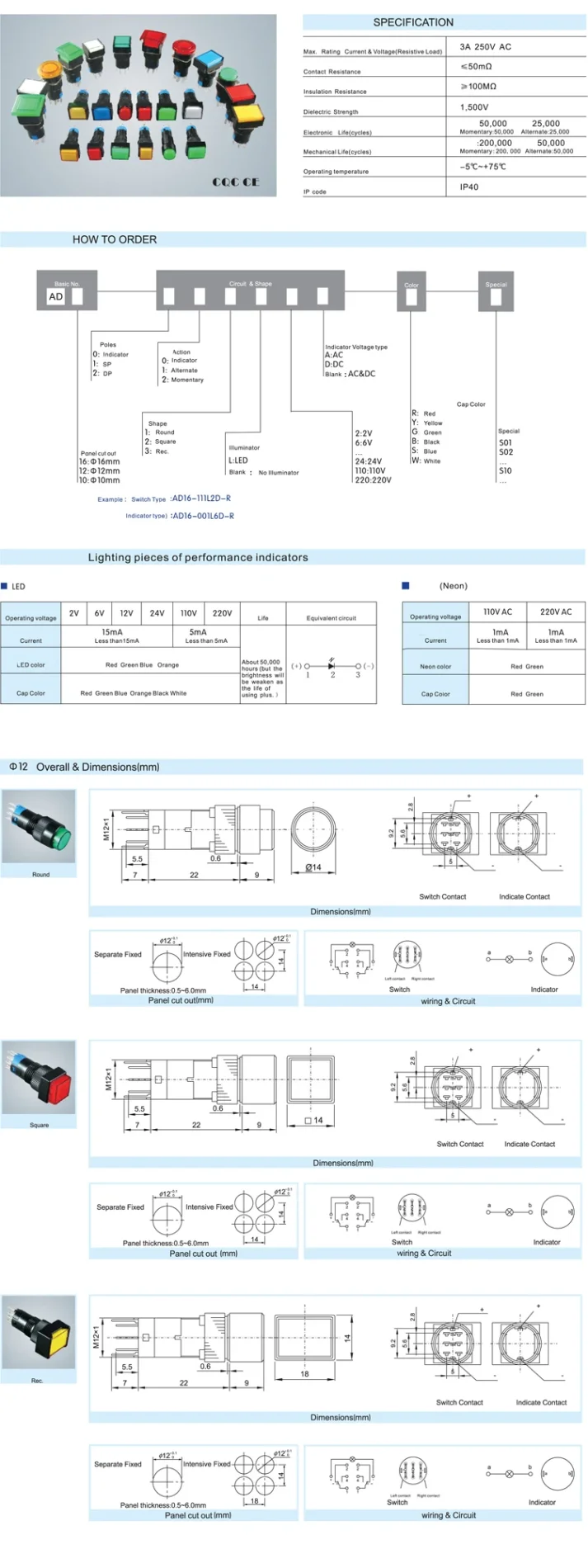

contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
alternate：25000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
alternate：50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
5T75
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|
Key Features
Our 12mm LED Momentary Push Button Switch stands out with its compact design, durable plastic construction, and clear LED indication. It's perfect for industrial and commercial use, offering reliable performance and easy installation.
Why Choose Us?
As a factory supplier, we offer wholesale pricing and bulk discounts. Our switch is CQC and CE certified, ensuring quality and safety. With a long mechanical life and high dielectric strength, it's built to last.
Applications
This switch is ideal for industrial control panels, commercial equipment, and machinery operation. Its clear LED indication makes it easy to monitor the switch status, enhancing safety and efficiency.
