Description

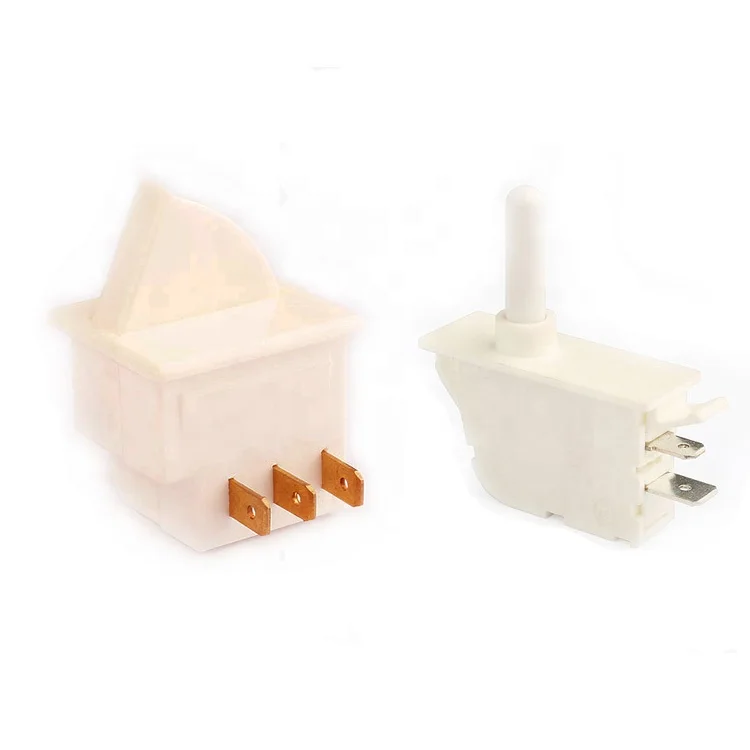

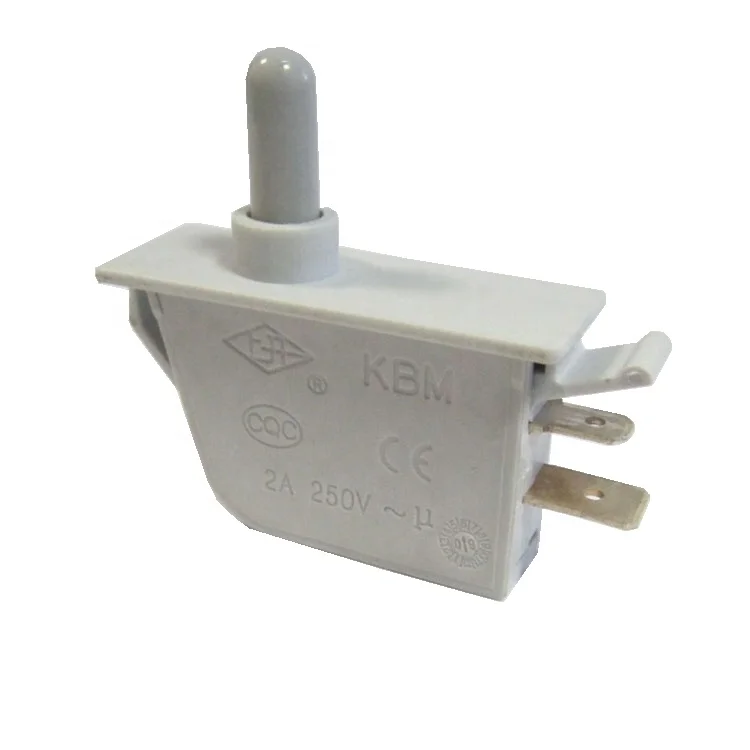

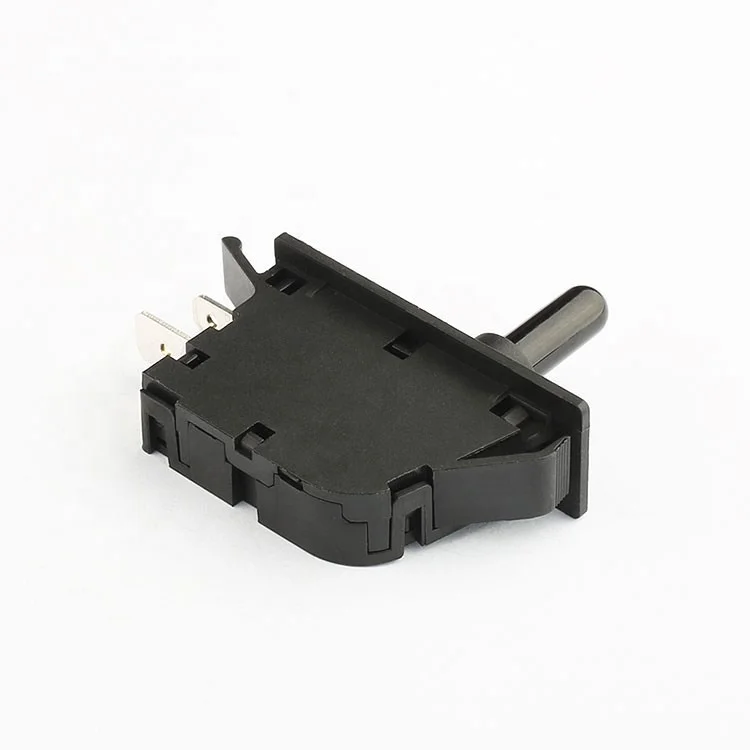

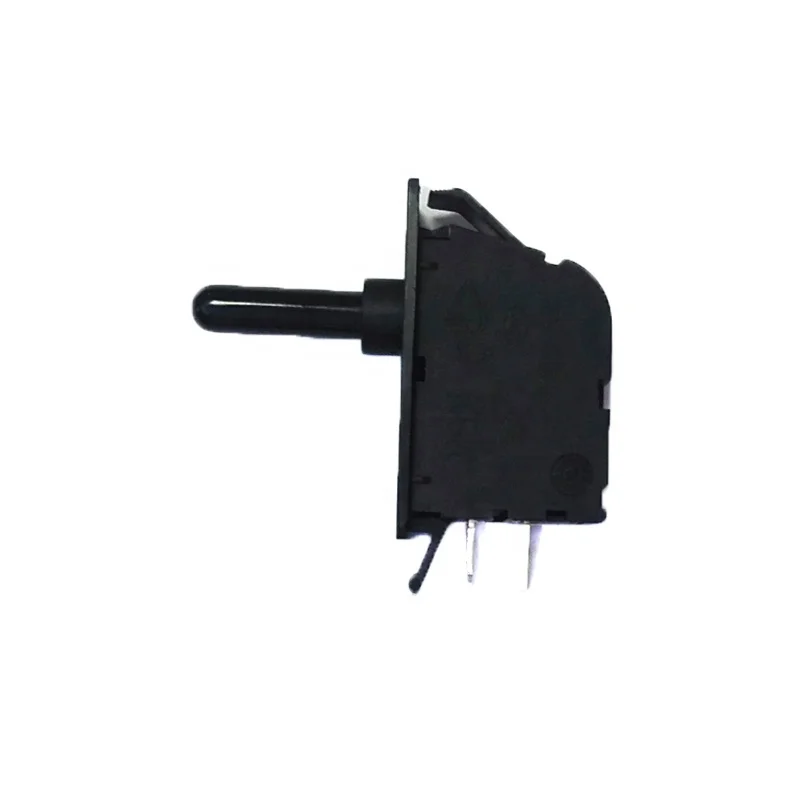

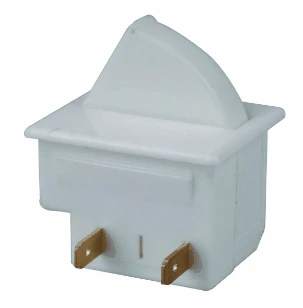

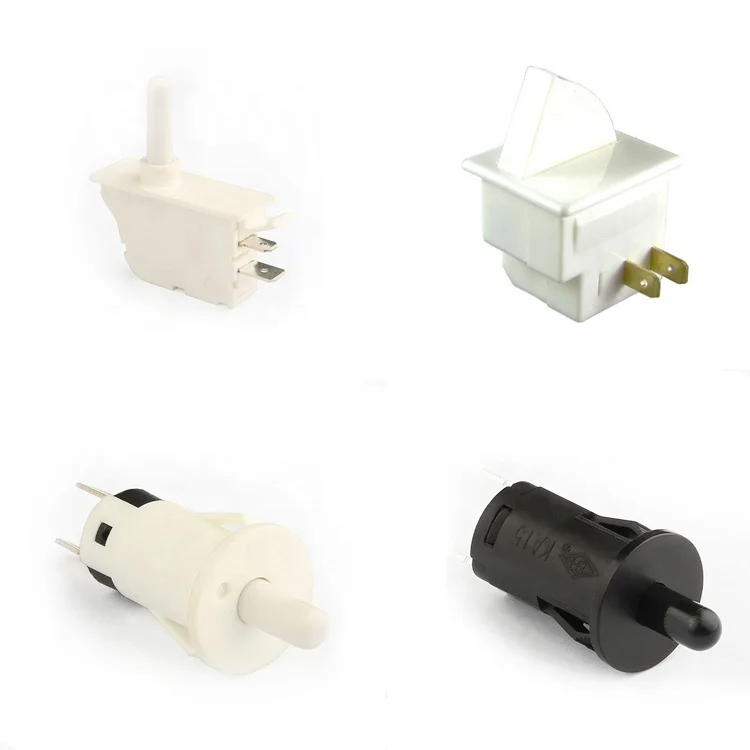

Looking for a reliable push button switch for your refrigerator door? Look no further! Our factory-direct Momentary 1NO1NC 3 Pin 2A Push Button Switch is the perfect solution. Designed specifically for refrigerator door switches, this switch boasts a maximum rating of 2A at 250V AC, ensuring durability and efficiency. With a contact resistance of less than 50mΩ and insulation resistance greater than 100MΩ, it guarantees optimal performance. The switch also features a dielectric strength of 1500V, a mechanical life of 50,000 cycles, and an electrical life of 10,000 cycles, making it highly durable and reliable. Operating temperature ranges from -25℃ to 55℃, accommodating various environmental conditions. Certified with CQC and CE, it meets international safety standards. As a direct supplier and factory, we offer competitive wholesale prices and customization options to meet your specific needs. With our advanced production facilities and over 60 senior engineers, we ensure the highest quality standards. Choose our push button switch for a reliable and cost-effective solution for your refrigerator door.
|
max.rating cnrrent&voltage
|
2a 250vac
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>100mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
mechanical ife
|
50000
|
||
|
electronic life
|
10000
|
||
|
operating temperature
|
-25℃ to +55℃
|
||
|
CQC,CE
|
Why Choose Our Push Button Switch?
Our push button switch is designed specifically for refrigerator doors, offering durability, reliability, and customization options. With a factory-direct supply, we ensure competitive pricing and high-quality standards.
What Are the Key Features?
Key features include a 2A 250V AC rating, less than 50mΩ contact resistance, greater than 100MΩ insulation resistance, and a 1500V dielectric strength. It also boasts a long mechanical life of 50,000 cycles and an electrical life of 10,000 cycles.
Can We Customize the Switch?
Yes, as a direct supplier and factory, we offer customization options to meet your specific requirements. Whether it's a different pin configuration, voltage rating, or other specifications, we can tailor the switch to your needs.
