Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AD12-113L24-R
|
|
IP(ingress protection)
|
IP40
|
|
Max.Current
|
3A
|
|
Max.Voltage
|
250V
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
5T75
|
|
Mechanical Life
|
50000
|
|
Electrical Life
|
25000
|
|
Voltage of indicator
|
24 v
|
|
Current of indicator
|
＜15mA
|

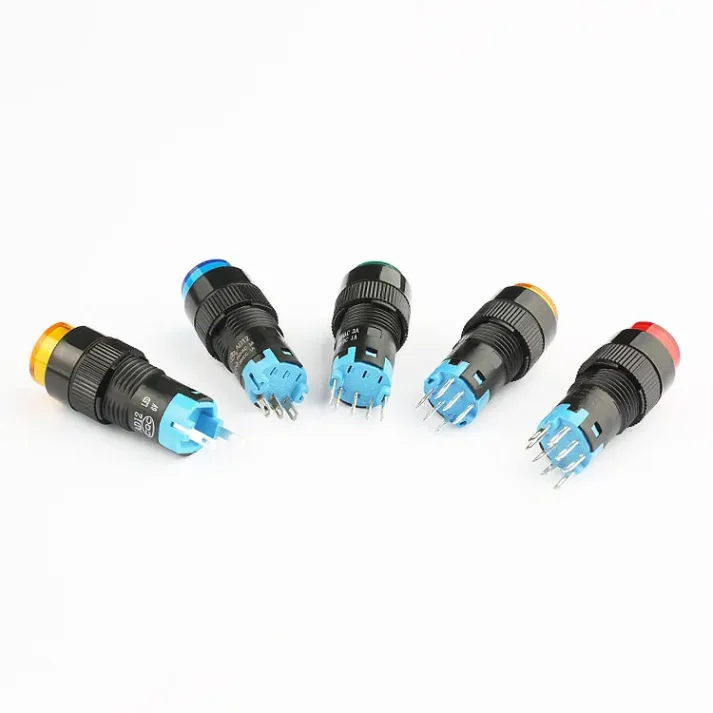

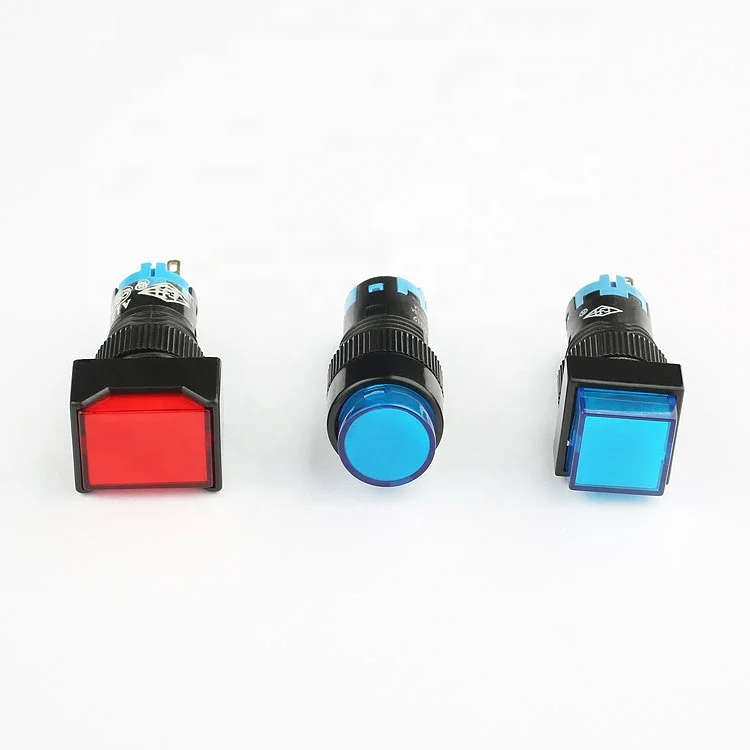

Why Choose Our 1NO1NC Momentary Rectangular Plastic Push Button Switch?
Our switch stands out due to its durable plastic construction, ensuring long-lasting performance. With a maximum current of 3A and voltage of 250V, it's suitable for a wide range of applications. The low contact resistance and high insulation resistance guarantee optimal electrical performance.
What Makes Our Switch Different from Others?
Unlike many competitors, our switch includes an indicator light with a voltage of 24V and a current of ≤15mA, available in multiple colors. It also boasts a mechanical life of 50,000 cycles and an electrical life of 25,000 cycles, ensuring reliability and durability.
Can I Buy in Bulk and Get a Discount?
Yes! As a factory supplier, we offer competitive pricing and bulk order discounts. Whether you're a small business or a large corporation, we can accommodate your needs and provide you with the best value for your money.
