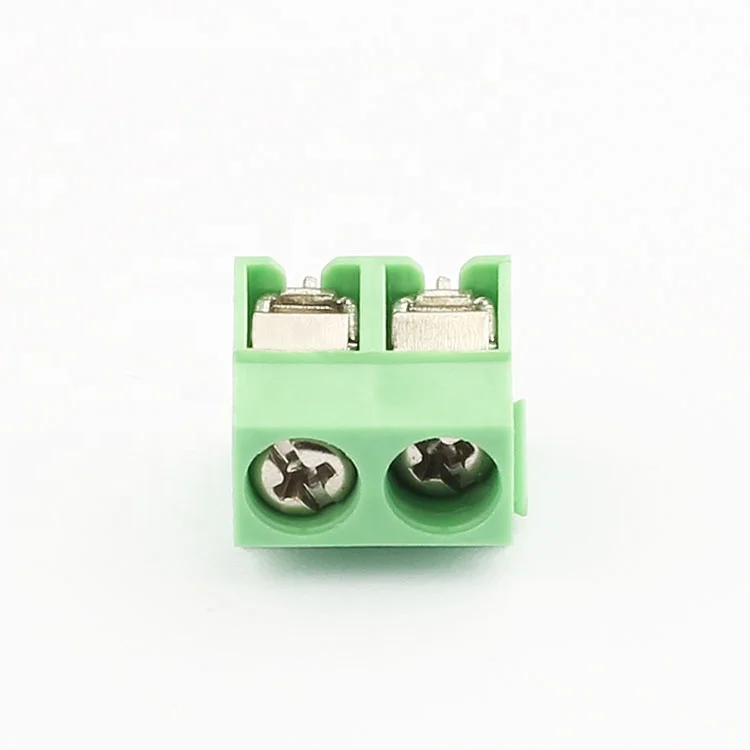

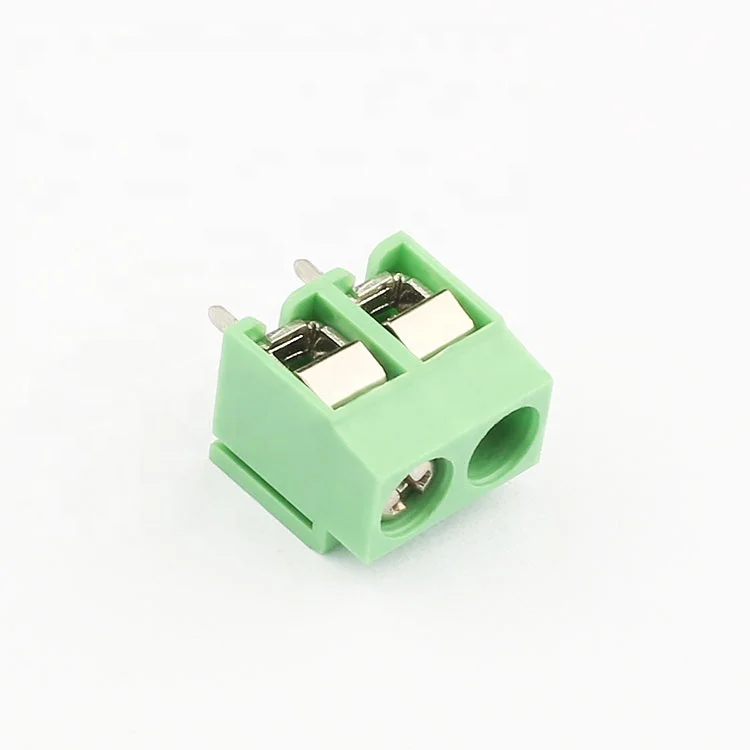

High-Quality 2 Pin 3.50/3.81mm Brass Screw Terminal Blocks – Wholesale Supplier
Introducing our premium 2 pin brass screw terminal blocks, available for wholesale purchase directly from our factory. As a trusted supplier, we offer top-notch quality at competitive prices.
Product Specifications:
- Place of Origin: Shanghai, China
- Brand Name: SK (Shangkai)
- Model Number: YB
- Number of Contacts: 2-27
- Conductor Size: 26-14 AWG
- Type: PCB
- Color: Green
- Pitch: 3.5mm/3.81mm
- Material: Contact: Brass, Tin Plated; Housing: PA66, UL94V-0
- Rated Voltage: 300V
- Rated Current: 16A
- Contact Resistance: 20mΩ
- Insulation Resistance: >5000MΩ DC500V
- Withstanding Voltage: AC2000V/Min
- Operating Temperature: -40°C ~ 150°C
- Short-time Temperature: +250°C
Product Advantages:
- Durable brass contacts with tin plating for excellent conductivity and corrosion resistance.
- High-quality PA66 housing with UL94V-0 flame retardancy rating for enhanced safety.
- Wide operating temperature range, suitable for various environments.
- Low contact resistance and high insulation resistance ensure reliable electrical performance.
- Factory direct wholesale pricing, offering significant cost savings.
After-Sales Service:
We stand behind the quality of our products and offer comprehensive after-sales service. If you encounter any issues, our dedicated support team is ready to assist you promptly.
Choose us as your supplier for reliable, high-quality terminal blocks at wholesale prices. Contact us today to discuss your needs!
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C electrical busbar connectors |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 16A terminal block |
| Contact resistance | 20mΩ 2 pin 12v connectors |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/Min |
Why Choose Our 2 Pin Brass Screw Terminal Blocks?
Our 2 pin brass screw terminal blocks are designed for durability and reliability. With brass contacts and tin plating, they offer excellent conductivity and corrosion resistance, ensuring long-lasting performance in various environments.
What Makes Our Terminal Blocks Stand Out?
Our terminal blocks feature a high-quality PA66 housing with a UL94V-0 flame retardancy rating, providing enhanced safety. They also have a wide operating temperature range, making them suitable for industrial applications. Additionally, our factory direct wholesale pricing offers significant cost savings compared to other suppliers.
How Can We Help You?
As a trusted supplier, we offer comprehensive after-sales service and support. If you have any questions or need assistance with your order, our dedicated team is here to help. Contact us today to learn more about our 2 pin brass screw terminal blocks and how they can benefit your business.
