Description
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green pa66 terminal connector |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V connector blocks |
| Rated current | 16A 2 pins connector |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/1Min |

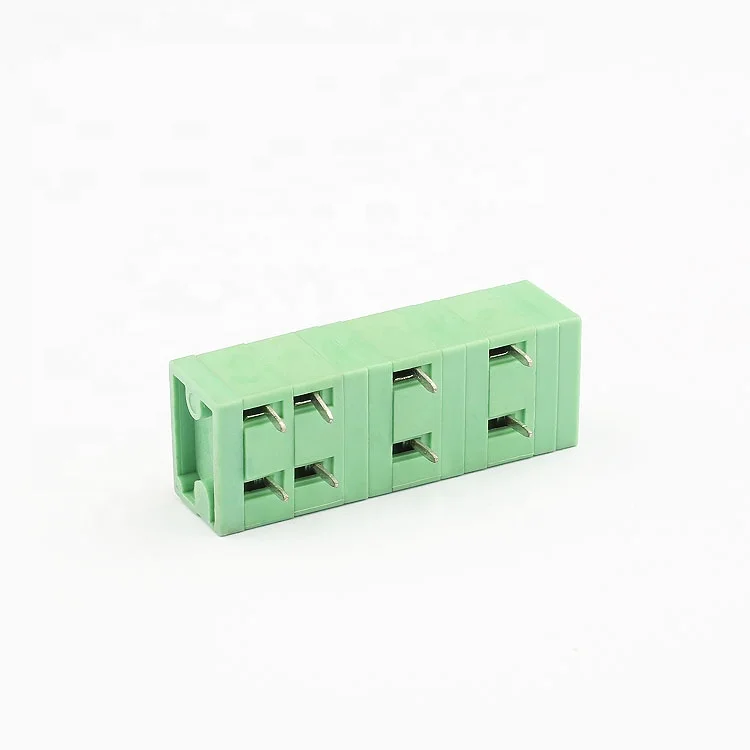

Why Choose Our 2-Pin Terminal Block?
Our 2-Pin Terminal Block stands out due to its superior quality, durability, and reliability. Made with brass, tin-plated contacts and a PA66, UL94V-0 housing, it ensures excellent conductivity and safety. With a wide operating temperature range and high insulation resistance, it's perfect for industrial and automotive applications.
What Are the Key Features?
Key features include a rated voltage of 300V, a rated current of 16A, and a low contact resistance of 20mΩ. It also offers a high insulation resistance greater than 5000MΩ DC500V and can withstand high voltages up to AC2000V/1Min. These features make it ideal for demanding applications.
Why Buy from Us?
As a factory supplier, we offer competitive prices and excellent quality. We provide wholesale and bulk purchase options, making it easy for businesses to stock up. Our terminal blocks meet CQC certification standards, ensuring peace of mind. Choose us as your trusted supplier for all your terminal block needs.
