Description
| Contact Resistance | ≤50mΩ Waterproof Rocker Switch |
| Insulation Resistance | ≥1,000MΩ Sealed Rocker Switch |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles , Waterproof |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC |
| Max. Rating Current & Voltage (CQC , CE) |
10(3)A 250V AC T85 6(3)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
15R(3)A 125V AC , 10R(3)A 250V AC 1/3HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
10(3)A 250V AC T105,6(3)A 250V AC T105 6A 250V AC ,4A 250V AC T105 |

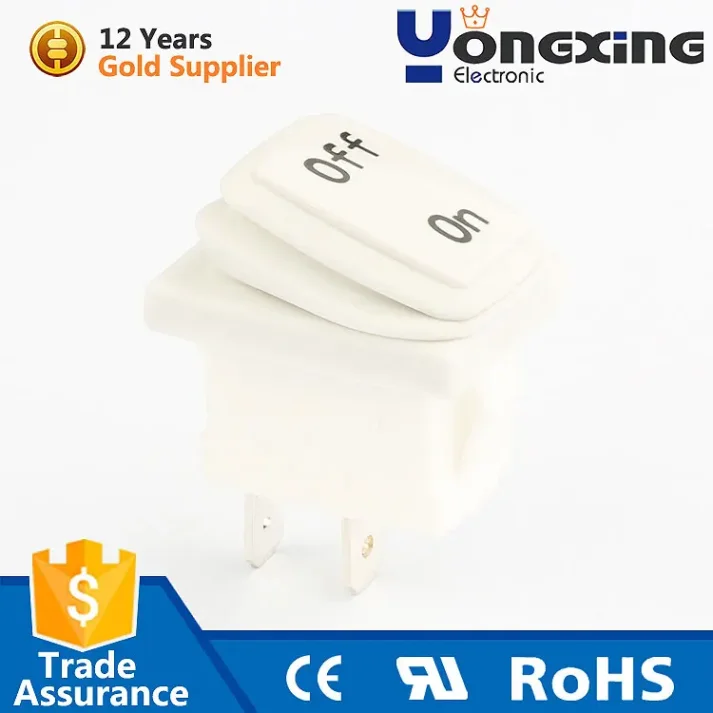

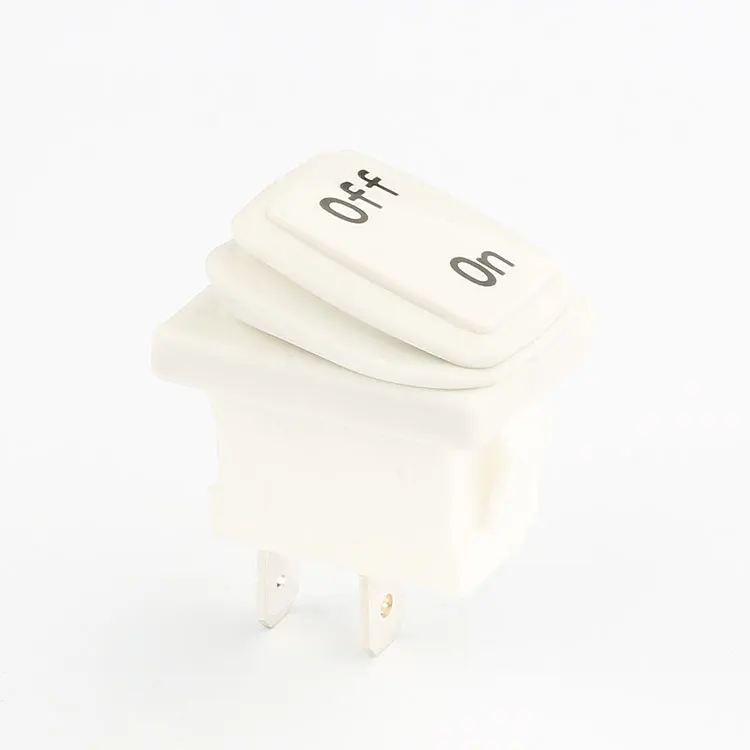

Why Choose Our KCD3 Waterproof Rocker Switch?
Our KCD3 Waterproof Rocker Switch is designed for superior performance in challenging environments. With its 2-pin configuration and robust 6A/10A, 250V AC ratings, it's perfect for a variety of applications, from industrial machinery to home appliances. The waterproof design ensures longevity and reliability, even in wet conditions.
What Are the Key Features?
Key features include a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500V AC for 1 minute. It offers a mechanical life of up to 100,000 cycles and an electronic life of 10,000 cycles, making it a durable choice for any project. Certified by multiple international standards, it ensures safety and quality.
How Can We Benefit You?
As a factory supplier, we offer wholesale pricing and bulk supply options, making it cost-effective for large-scale projects. Our switch is backed by exceptional after-sales service, ensuring your satisfaction. Choose us for reliable, high-quality switches that meet your needs and exceed your expectations.
