Factory Wholesale 2 Pin Red Waterproof Round Push Button Switch

50 - 999  pieces
$1.74

1,000 - 1,999  pieces
$1.70

>= 2,000  pieces
$1.64

0 reviews

Factory Wholesale 2 Pin Red Waterproof Push Button Switch

Description

Introducing our premium quality 2 Pin Red Waterproof Round Push Button Switch, a top-notch product from Yongxing, a trusted factory and supplier based in Shanghai, China. This switch is designed with a robust PA66 material, ensuring durability and longevity. With a maximum current of 3A and a maximum voltage of 250V, it is suitable for a wide range of applications including electric, industrial control, and home appliances.

Our switch features a full illuminated LED, making it easy to identify its status in low-light conditions. It also boasts an IP40 rating, providing excellent protection against dust and water ingress. With a mechanical life of 50,000 times and an electrical life of 25,000 times, it offers exceptional reliability and performance.

What sets our switch apart from the competition is its unique design, combining a round head with a square head option, and pin terminals for easy installation. We also offer competitive wholesale prices, making it an ideal choice for bulk purchases. As a factory direct supplier, we ensure high-quality standards and excellent after-sales service. Choose our 2 Pin Red Waterproof Round Push Button Switch for your next project and experience the difference!

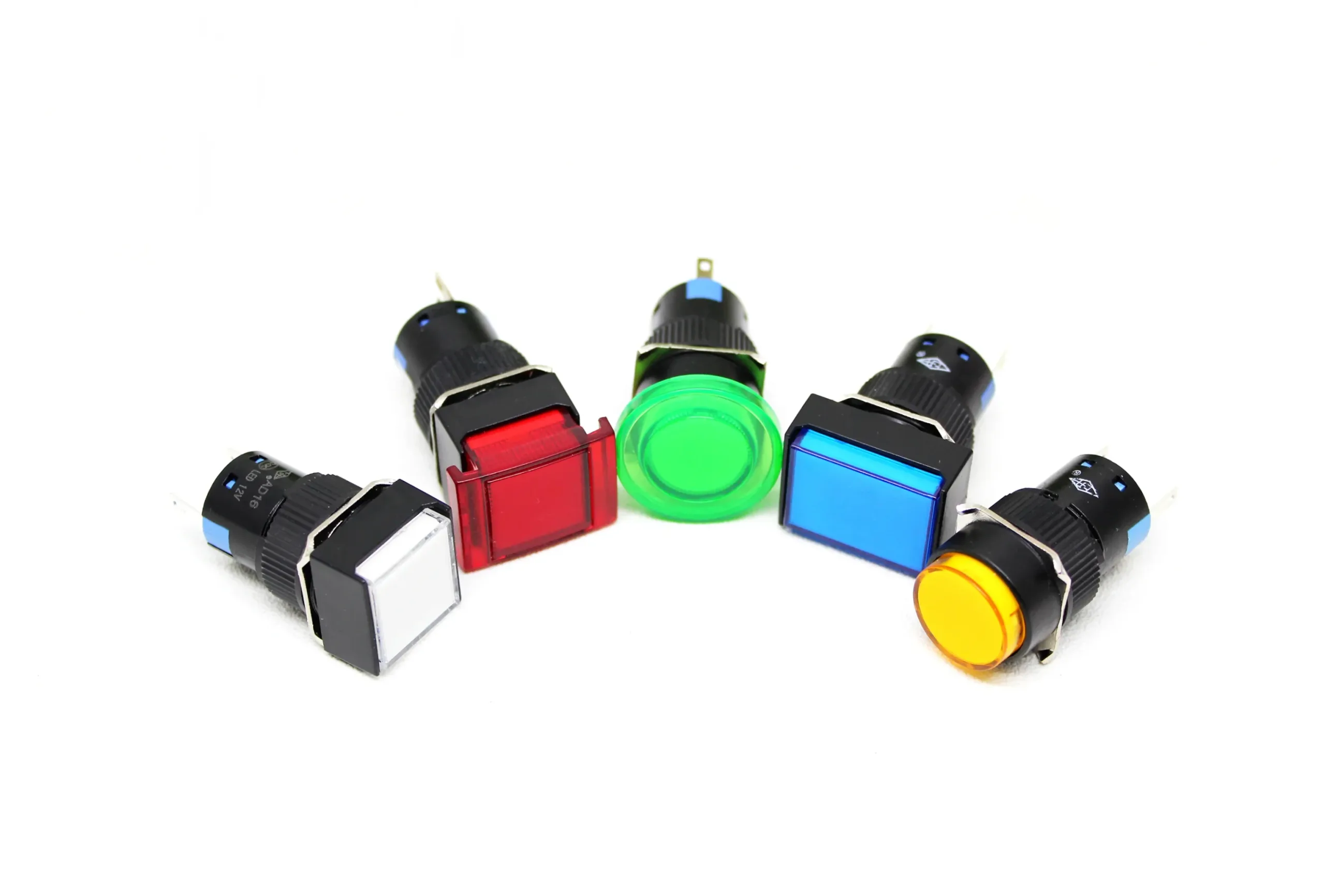

Electronic component product imageElectronic device product imageElectronic gadget product imageElectronic part product imageElectronic module product imageElectronic accessory product imageElectronic circuit product imageElectronic board product imageElectronic device detail image


Why Choose Our 2 Pin Red Waterproof Round Push Button Switch?

Our switch stands out due to its robust PA66 material construction, ensuring durability and longevity. With a maximum current of 3A and a maximum voltage of 250V, it is suitable for a wide range of applications, including electric, industrial control, and home appliances. The full illuminated LED makes it easy to identify its status in low-light conditions, while the IP40 rating provides excellent protection against dust and water ingress.

What Makes Our Switch Different?

Our switch combines a unique design with a round head and square head option, along with pin terminals for easy installation. We also offer competitive wholesale prices, making it an ideal choice for bulk purchases. As a factory direct supplier, we ensure high-quality standards and excellent after-sales service.

What Are the Key Features?

Key features include a high mechanical life of 50,000 times and an electrical life of 25,000 times, offering exceptional reliability and performance. The switch also features a full illuminated LED, IP40 rating, and is suitable for various applications, making it a versatile choice for your next project.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

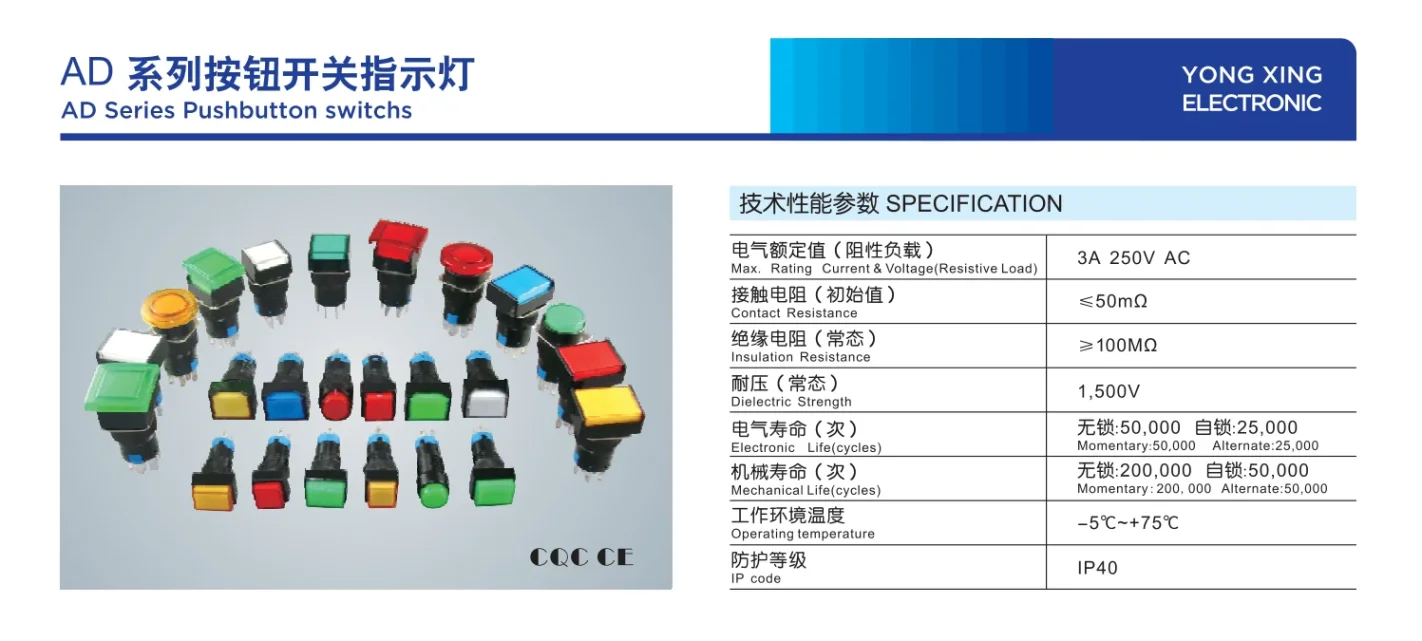

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

AD16-211L24D-Y

LED

Yes

Application

Electric, Industrial Control, Home Appliance

Material

PA66

Structure

Electronic

Head Type

Round Head, Square Head

Terminal Type

Pin terminal

Whether the smart

NO

illuminated Type

full illuminated

IP level

IP40

Switch Combination

2NO2NC

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

Dielectric Strength

1500V

Electrical Life (Alternate)

25000 Times

Mechanical Life (Alternate)

50000 Times

Operating Temperature

-5° T +75°
