Factory Wholesale 20mm 3Pin SPST Waterproof Rocker Switch Supplier

500 - 900  pieces
$0.23

>= 1,000  pieces
$0.21

0 reviews

Factory Wholesale 20mm 3Pin SPST Waterproof Rocker Switch Supplier. High Quality, Customizable, Industrial Grade.

Description

Welcome to our factory’s wholesale offerings! We are a direct supplier of high-quality 20mm 3Pin SPST waterproof rocker switches. Our switches are designed to meet the rigorous demands of industrial applications, offering exceptional durability and reliability. With a maximum current rating of 6A and a maximum voltage rating of 250V, these switches are built to handle heavy-duty tasks. They feature a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, ensuring long-lasting performance. Our switches are also IP67 rated, providing excellent waterproof protection. Available in customizable housing colors (white as standard, with other options available) and button colors (red as standard), you can tailor these switches to your specific needs. As a factory with over 60 senior engineers, independent plants, and advanced experimental equipment, we guarantee top-notch quality and competitive pricing. Benefit from our 5S and 5M management standards in all workshops, ensuring efficient production and strict quality control. We offer wholesale pricing and bulk order discounts, making it cost-effective for your business. Our switches come with CQC, CE, UL, CB, and ENEC certifications, giving you peace of mind regarding safety and compliance. Don’t miss out on this opportunity to stock up on high-quality rocker switches from a trusted factory supplier.
max.rating cnrrent 6A dielectrice resistance 1500V
max.rating voltage 250V electronic life 10000cycles
contact resistance 50mΩ operating temperature T55,T85,T105
insulation resistance 1000mΩ certifications CQC,CE,UL,CB,ENEC
housing color white(selective) button color red(selective)
PIN number 2 (2,3) lamp voltage 6V,12V,24V,110V,220V

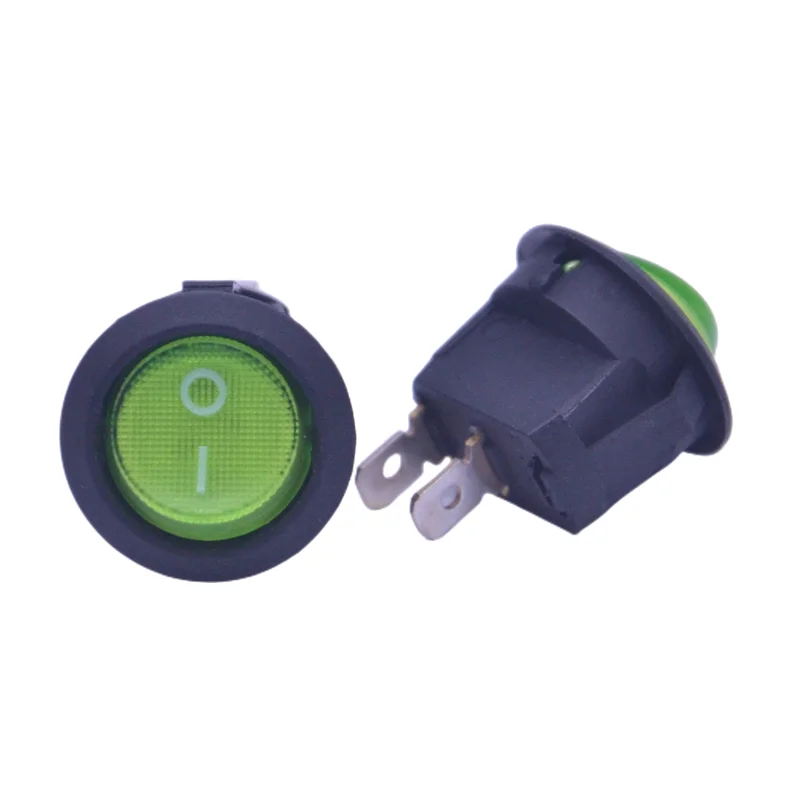

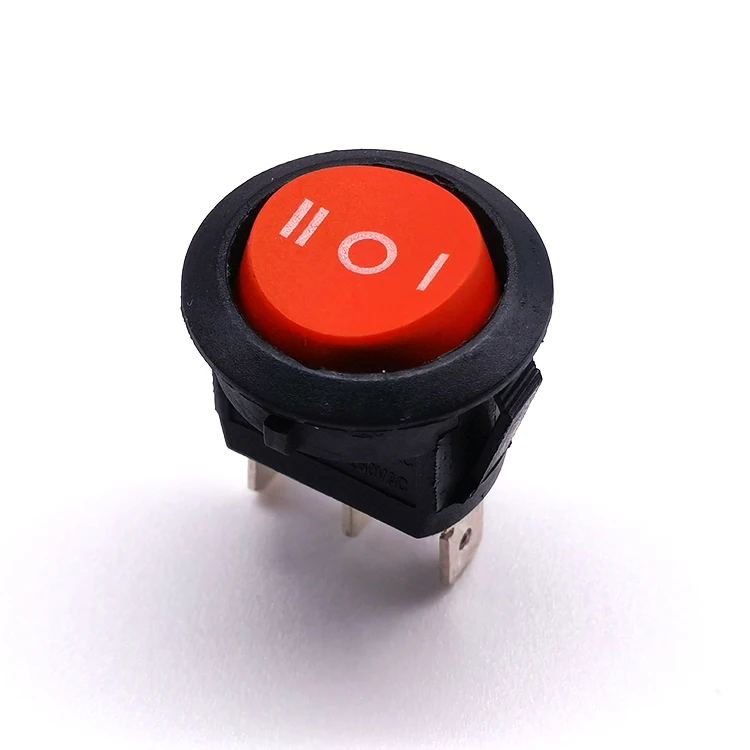

Electronic component product image for cross-border e-commerceElectronic device product image for cross-border e-commerce


Key Features and Benefits

Our 20mm 3Pin SPST waterproof rocker switch is designed for industrial use, offering a maximum current of 6A and a voltage of 250V. With a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, it ensures reliable performance in demanding environments. The IP67 rating provides excellent waterproof protection, making it suitable for various applications.

Customization Options

As a factory supplier, we offer customization options for housing and button colors. Choose from white (standard) or other available colors to match your specific requirements. This flexibility allows you to create a unique product that stands out in the market.

Why Choose Us?

We are a direct factory supplier with over 60 senior engineers and advanced production facilities. Our 5S and 5M management standards ensure efficient production and strict quality control. Benefit from competitive pricing, bulk order discounts, and top-notch customer service. Our switches come with multiple certifications, guaranteeing safety and compliance.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

6A

Max. Voltage

250V

Place of Origin

Zhejiang, China

Brand Name

SK

Model Number

KCD8-13-CB1A-B-B-112

Application

Industrial

Material

plastic

Pins

3p

Whether the smart

NO

Mechanical Life

100,000 cycles

IP level

ip67

Switch Action

ON-OFF

Termination Type

pin

Function

ON OFF ON 3 position

Electrical Life

10,000 cycles

Contact Resistance

50m

Insulation Resistance

100M Min

Dielectric Strength

1500VAC 1 Min

IP Rating

IP40

Certification

CQC CE ENEC UL CB
