Description
Product Specifications:
– **Current Rating**: 6A/10A
– **Voltage Rating**: 250V AC
– **Mechanical Life**: 50,000 Cycles
– **Electrical Life**: 10,000 Cycles
– **Contact Resistance**: ≤50mΩ
– **Insulation Resistance**: ≥1000MΩ
– **Dielectric Strength**: 1500VAC for 1 Minute
– **Ingress Protection**: IP65
– **Lamp Voltage Options**: 6V/12V/24V/110V/220V
Product Advantages:
Our waterproof rocker switches stand out from the competition with their superior IP65 rating, ensuring protection against dust and water ingress. The switches are crafted with high-quality materials, providing excellent contact resistance and insulation resistance, which guarantees long-lasting performance. Additionally, our factory-direct pricing allows us to offer competitive rates without compromising on quality.
Applications:
Ideal for use in automotive, marine, industrial, and home appliances, our switches are versatile and reliable. Whether you need a switch for a simple on/off function or for more complex applications, our rocker switches are up to the task.
After-Sales Service:
As a trusted supplier, we stand behind our products. We offer comprehensive after-sales service, including technical support and warranty coverage, to ensure your satisfaction.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-11-CB1A-B-R-01-waterproof cover
|
|
Current Rating
|
6A 10A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1
|
|
Contact Piece Code
|
A
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|

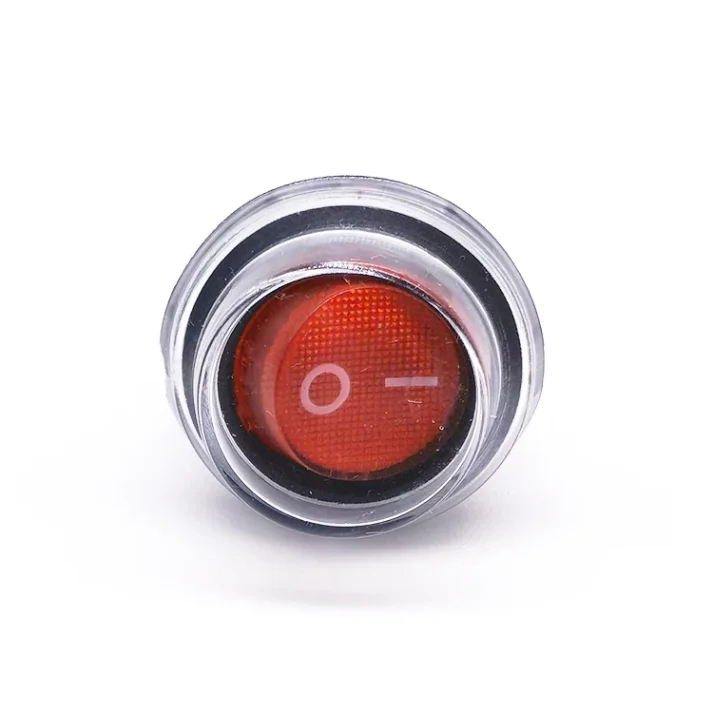

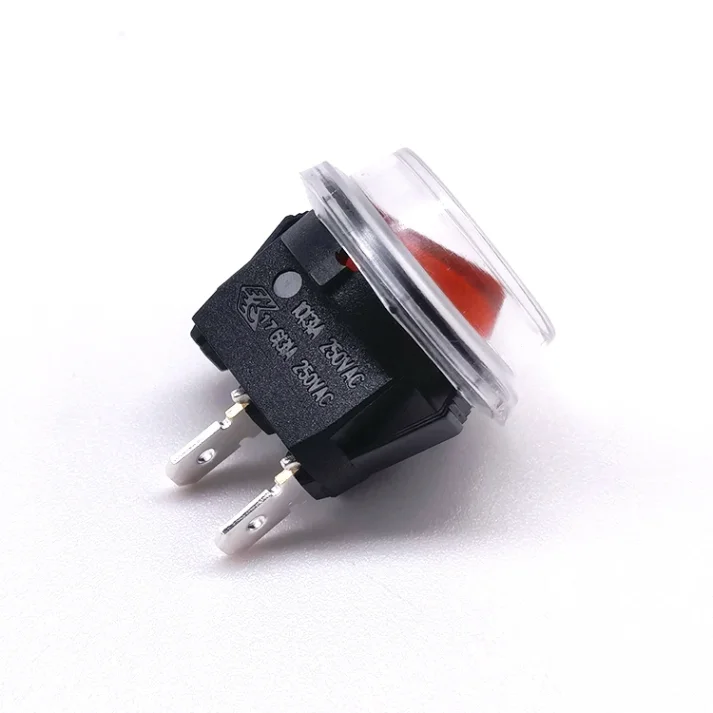

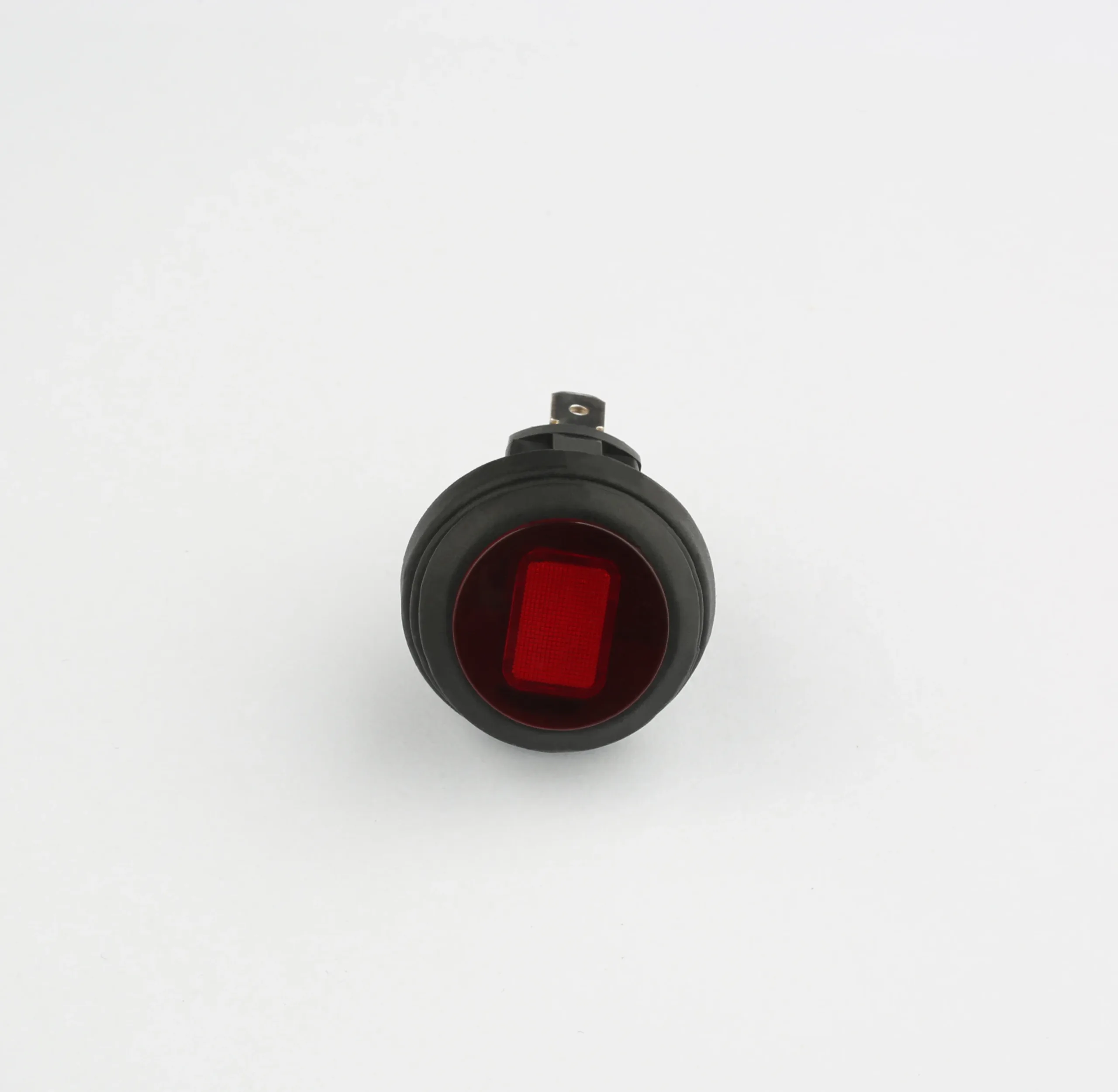

Why Choose Our 20mm Red Waterproof Rocker Switch?
Our 20mm red waterproof rocker switch is designed to withstand harsh environments, thanks to its IP65 rating. This ensures protection against dust and water, making it ideal for outdoor and marine applications. The switch's high-quality materials and precise engineering guarantee reliable performance and longevity.
What Are the Key Features of Our Switch?
Key features include a 6A/10A current rating, 250V AC voltage rating, and a mechanical life of 50,000 cycles. Additionally, it offers excellent contact and insulation resistance, ensuring stable operation. The switch also supports multiple lamp voltages, making it versatile for various applications.
How Does Our Switch Compare to Others on the Market?
Our switch stands out due to its superior IP65 rating, which provides better protection against the elements compared to many competitors. As a factory-direct supplier, we can offer competitive pricing without sacrificing quality. Our commitment to after-sales service ensures that you receive the support you need, making us a trusted choice for your switch needs.
