Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-FB1B-B-B-01
|
|
Current Rating
|
6A/10A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1 (21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Actuator Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Switch Function
|

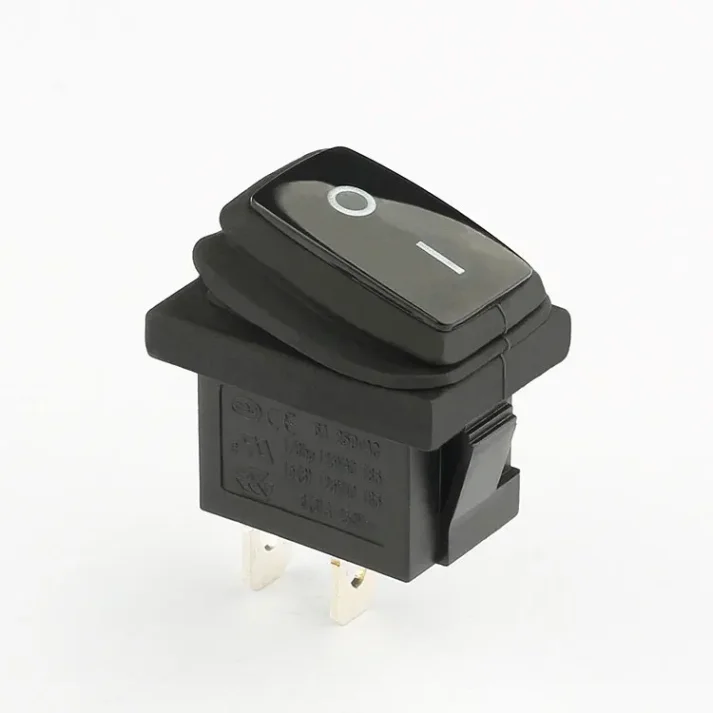

On Off Waterproof IP65
|
Why Choose Our 21x15mm Rocker Switch?
Our 21x15mm Rocker Switch stands out with its IP65 waterproof rating, ensuring it can withstand harsh conditions, making it perfect for marine and industrial applications. The high mechanical life of 50,000 cycles and low contact resistance guarantee long-lasting performance and efficiency.
What Are the Key Features of This Switch?
Key features include a 2-position, 2-pin design with a 6A/10A current rating and 250VAC voltage, making it versatile for various electrical needs. The switch is available in multiple colors to suit your design preferences and is certified with CB, ENEC17, ROHS, CQC, CE, and UL for safety and quality assurance.
How Can I Benefit from Buying Wholesale?
As a factory supplier, we offer competitive pricing and bulk order discounts, making it an economical choice for businesses. Buying wholesale ensures you have a steady supply of high-quality switches for your projects, reducing costs and increasing efficiency.
