Description
This switch is ideal for use in electric, home appliance, and industrial control applications. Its latching function ensures that the switch remains in the desired position, providing reliable operation. The switch has a mechanical life of 20,000 cycles and an electronic life of 10,000 cycles, demonstrating its long-lasting durability. With an operating temperature range of -25℃ to +85℃, it can withstand harsh environmental conditions.
One of the key differentiators of our product is its high insulation resistance of ≥100mΩ and dielectric strength of 1500V, ensuring safety and reliability. The IP40 rating provides protection against solid objects larger than 1mm. Additionally, the switch is CE, CQC, and CB certified, meeting international safety standards.
As a wholesale supplier, we offer competitive pricing and bulk order discounts. Our factory-direct approach ensures that you receive high-quality products at the best possible prices. We also provide excellent customer service and after-sales support, making us your trusted partner for all your electrical component needs.
|
contact resistance
|
≤50MΩ
|
electronic life
|
10000
|
|
insulation resistance
|
≥100MΩ
|
operating temperature
|
25T55
|
|
dielectric strength
|
1500V
|
IP code
|
IP40
|
Why Choose Our 22mm 10A Latched Push Button Switch?

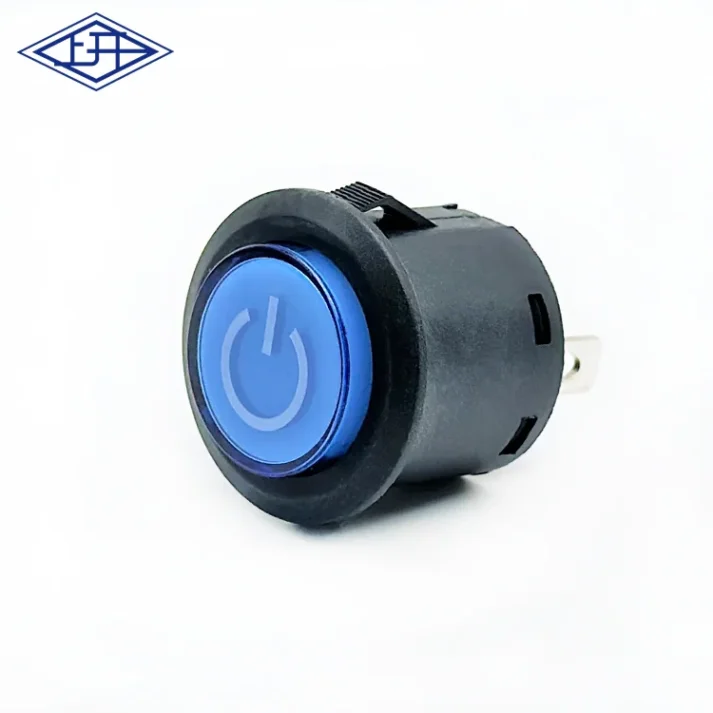

Our 22mm 10A latched push button switch with blue LED is designed for durability and reliability. With a plastic construction and high insulation resistance, it can withstand demanding electrical loads and harsh environmental conditions. The latching function ensures reliable operation, while the blue LED indicator provides clear status indication.
What Are the Key Features of Our Switch?
Our switch features a maximum current of 10A/16A, a maximum voltage of 250V AC, and a mechanical life of 20,000 cycles. It is CE, CQC, and CB certified, meeting international safety standards. The IP40 rating provides protection against solid objects, and the built-in 12VAC blue LED offers clear indication of the switch's status.
Why Buy from Us as a Wholesale Supplier?
As a factory-direct wholesale supplier, we offer competitive pricing and bulk order discounts. Our high-quality products are backed by excellent customer service and after-sales support. Choose us for your electrical component needs and experience the difference in quality and service.
