Description

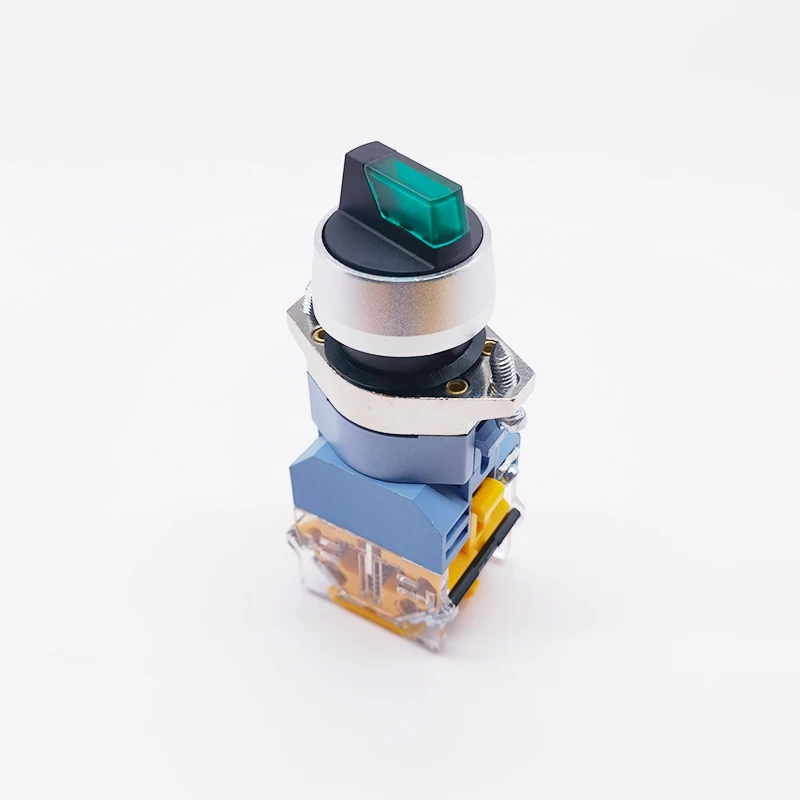

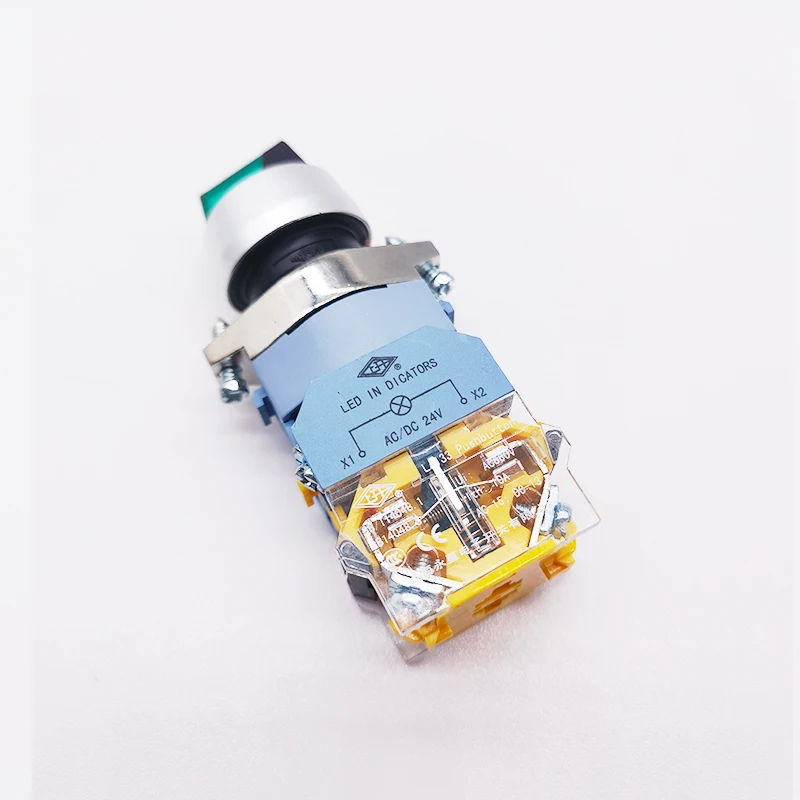

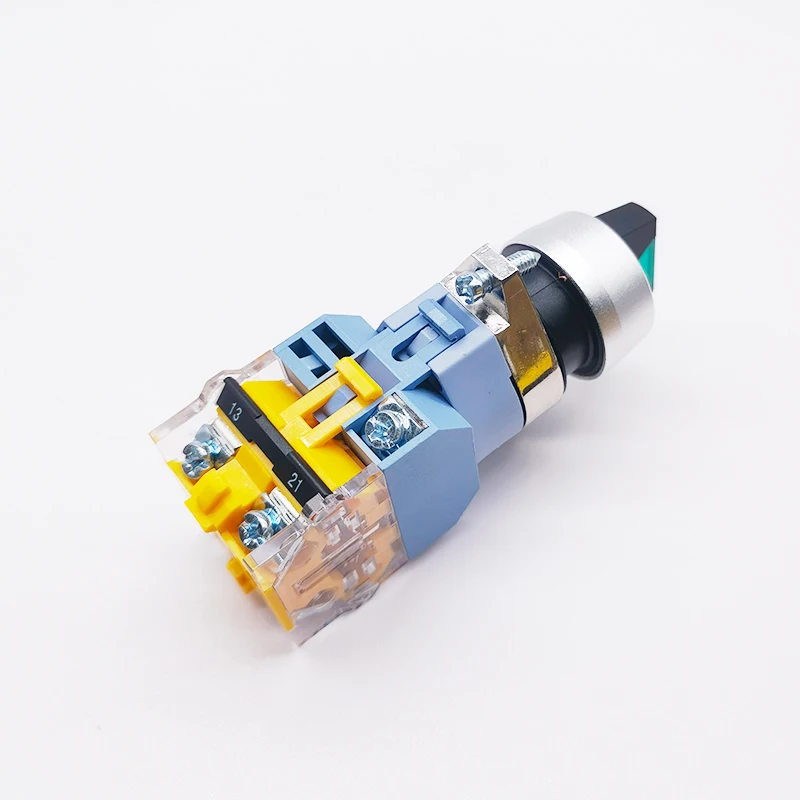

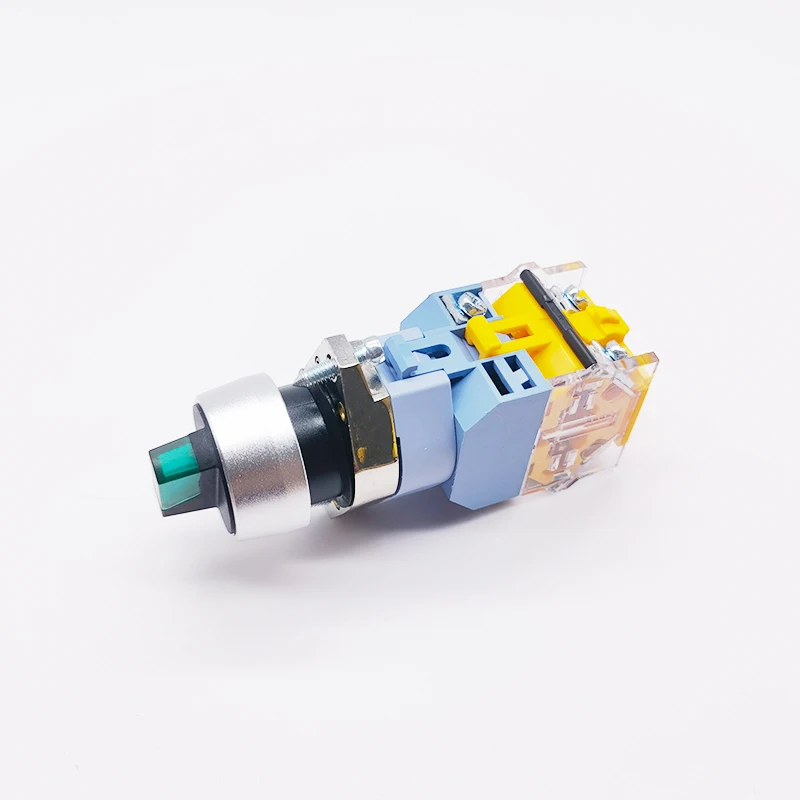

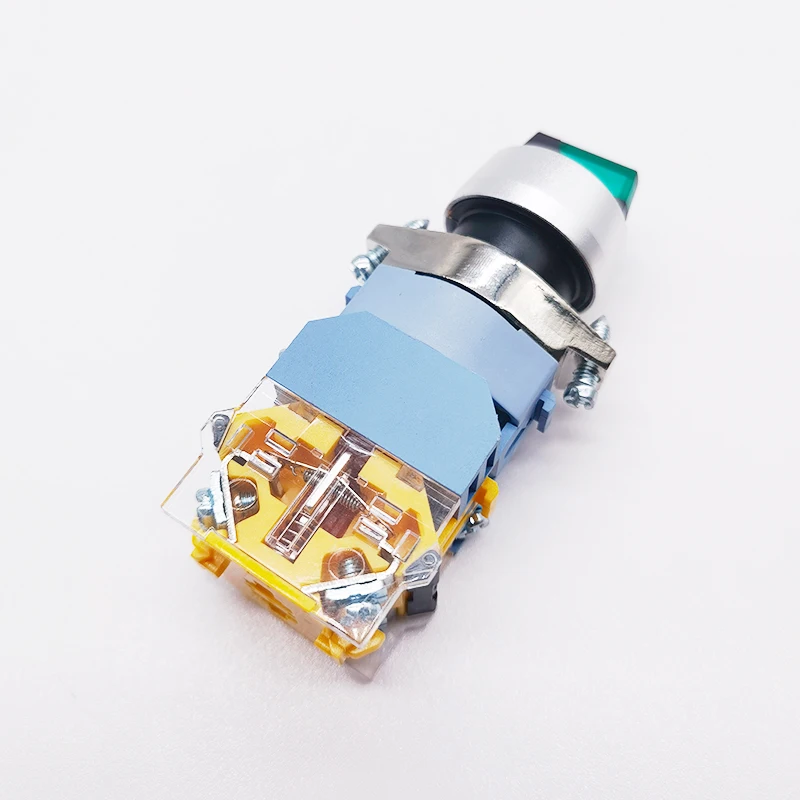

Introducing our Factory Direct Wholesale 22mm 1NO1NC LED Rotary Switch, a high-quality product designed for a wide range of applications. This switch, available in DC24V with a vibrant green light, is perfect for industrial and commercial use. As a trusted supplier, we offer competitive wholesale prices and ensure quick delivery.
Product Specifications
- Size: 22mm Diameter
- Switch Combination: 1NO1NC
- Max. Current: 10A
- Max. Voltage: 660 VAC
- LED Voltage Options: 6V, 12V, 24V, 36V, 48V, 110V, 220V, 380V
- Protection Level: IP40, IP65, IP67
- Usage Category: AC-15, DC-13
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 600,000 cycles for AC-15, 250,000 cycles for DC-13
Product Advantages
- Durable Construction: Built to withstand harsh industrial environments.
- Versatile LED Options: Multiple voltage options for the LED, ensuring compatibility with various systems.
- Long Lifespan: High mechanical and electrical life, reducing maintenance costs.
- Factory Direct: As a factory supplier, we offer competitive prices and custom solutions.
After-Sales Service
We stand behind our products with excellent after-sales service. If you encounter any issues, our dedicated support team is here to assist you.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|
|
Lamp Voltage
|
6v 12v 24v 36v 48v 110v 220v 380v
|
Why Choose Our 22mm LED Rotary Switch?
Our 22mm LED Rotary Switch stands out with its durable construction, versatile LED options, and long lifespan. It's perfect for industrial control, commercial equipment, and various electrical systems.
What Makes Our Switch Different?
Unlike other switches on the market, ours offers multiple LED voltage options, ensuring compatibility with a wide range of systems. Plus, as a factory supplier, we can provide custom solutions and competitive prices.
How Can We Assist You?
We offer excellent after-sales service and a dedicated support team to assist you with any issues. Choose us for your next project and experience the difference.
