Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|
|
Lamp Voltage
|
6v 12v 24v 36v 48v 110v 220v 380v
|

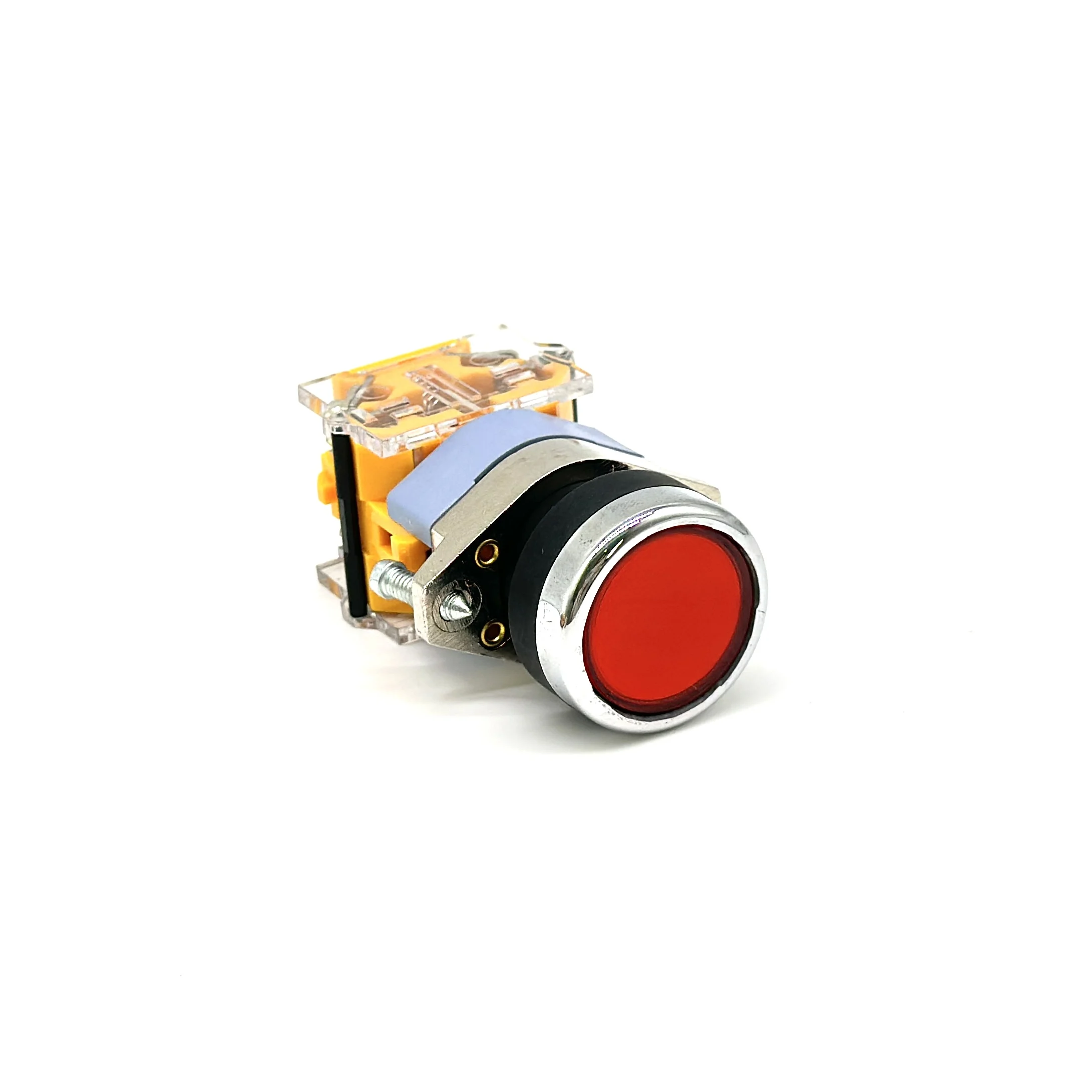

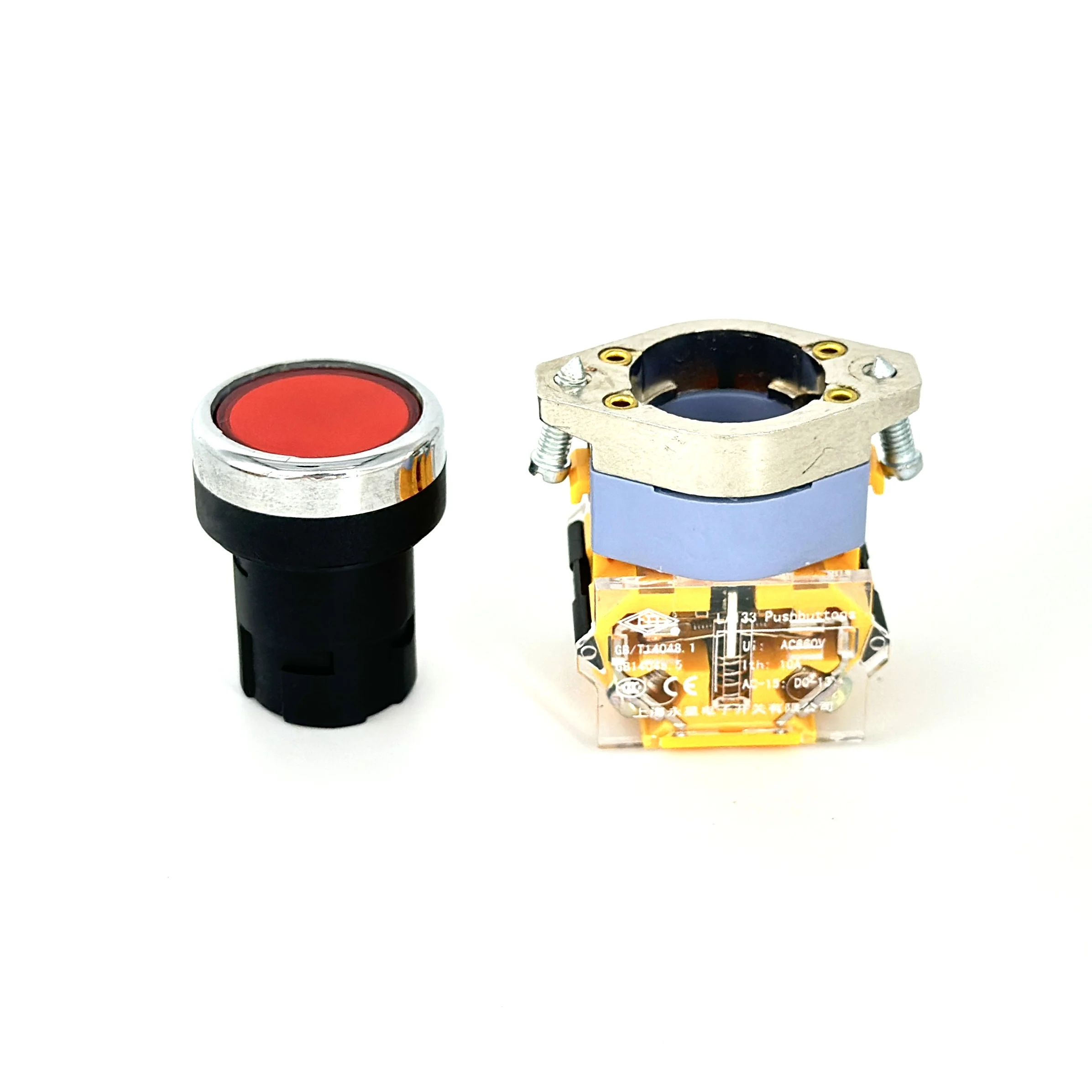

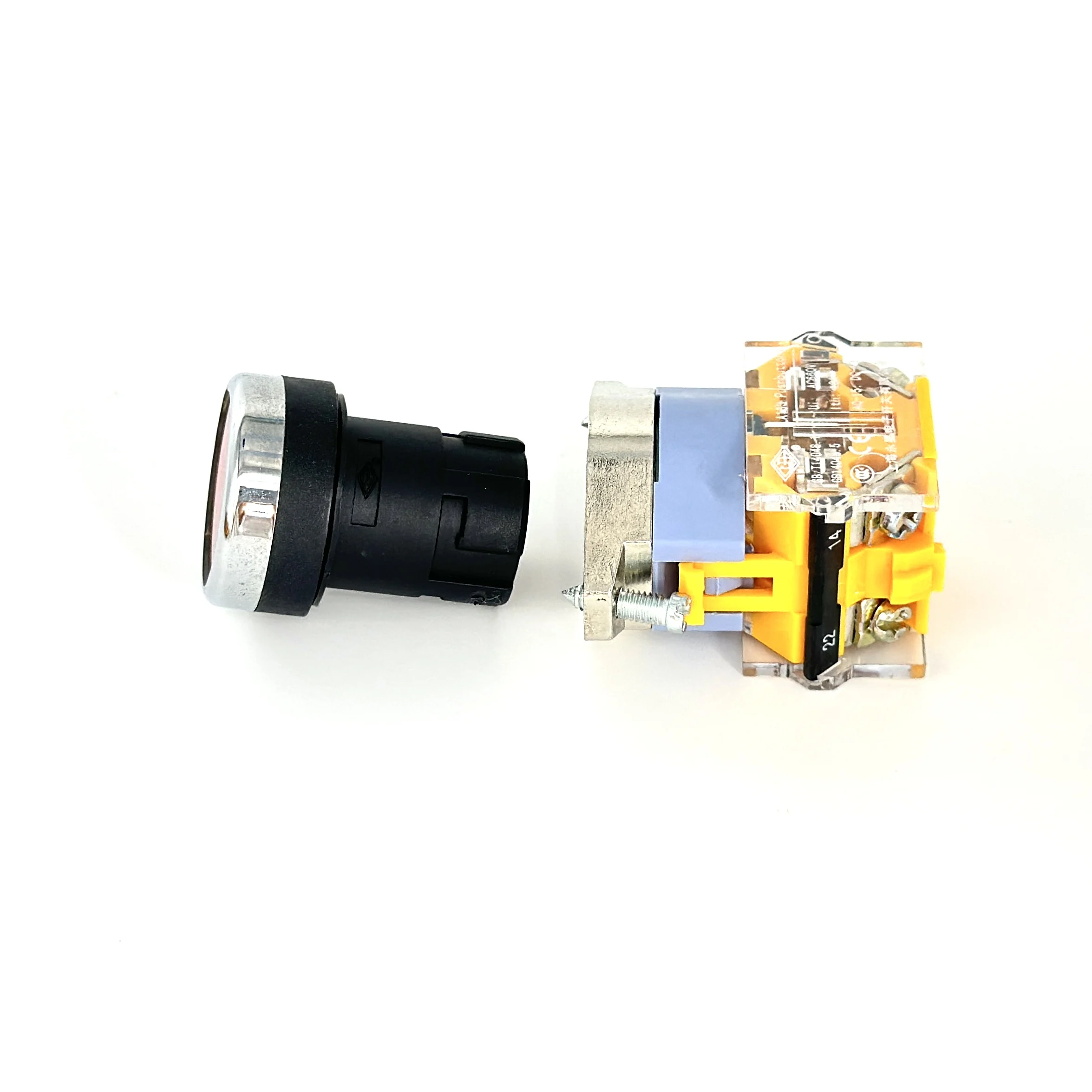

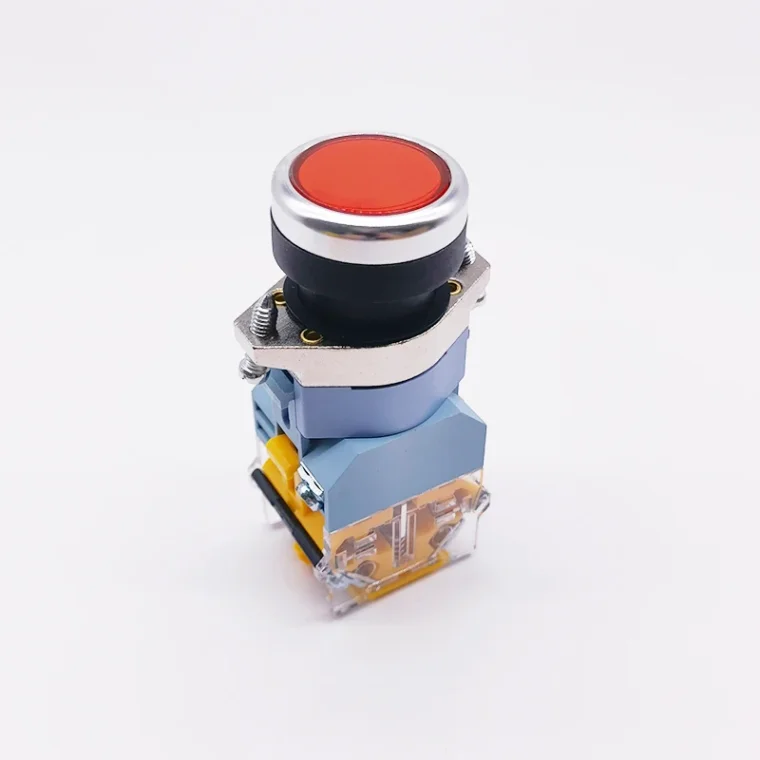

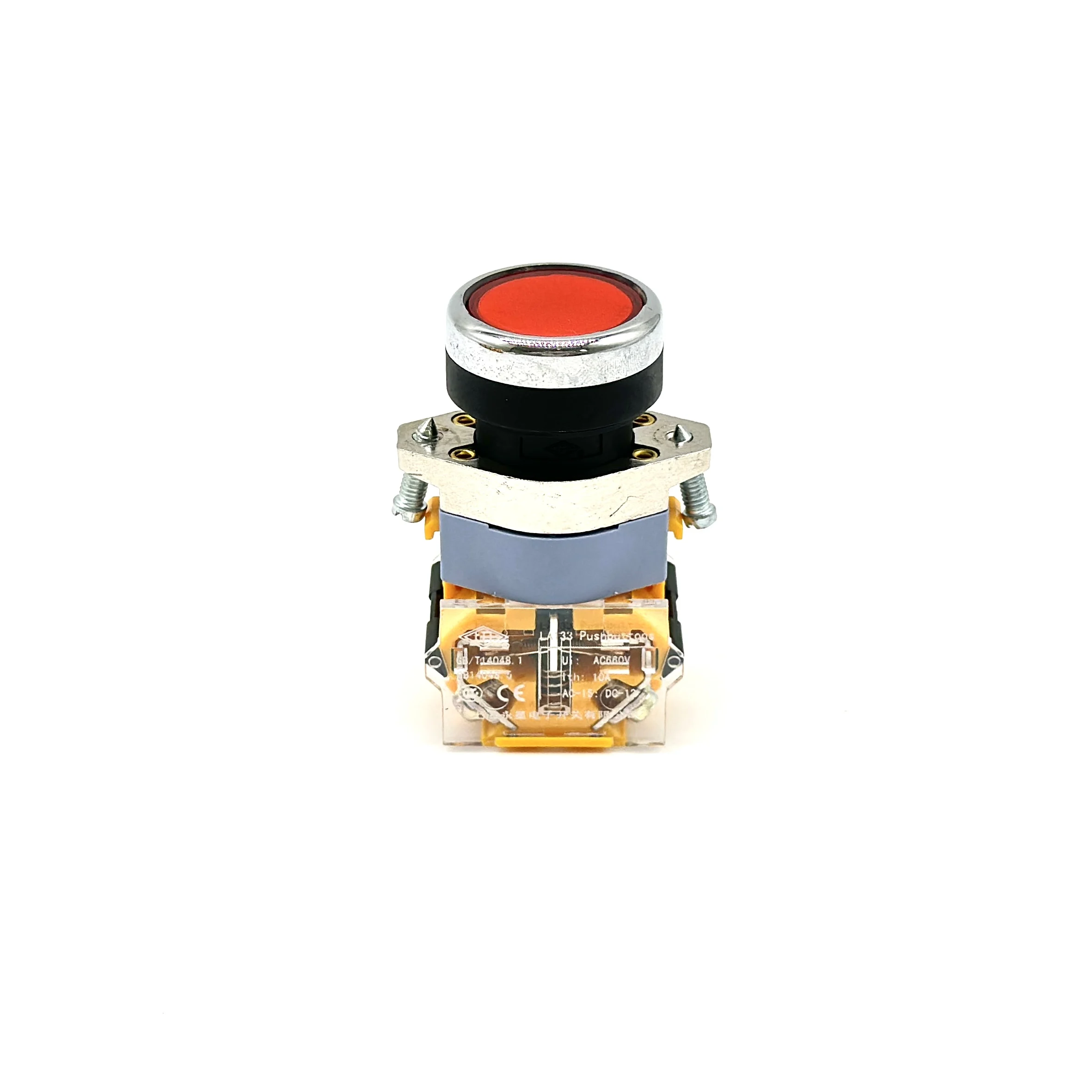

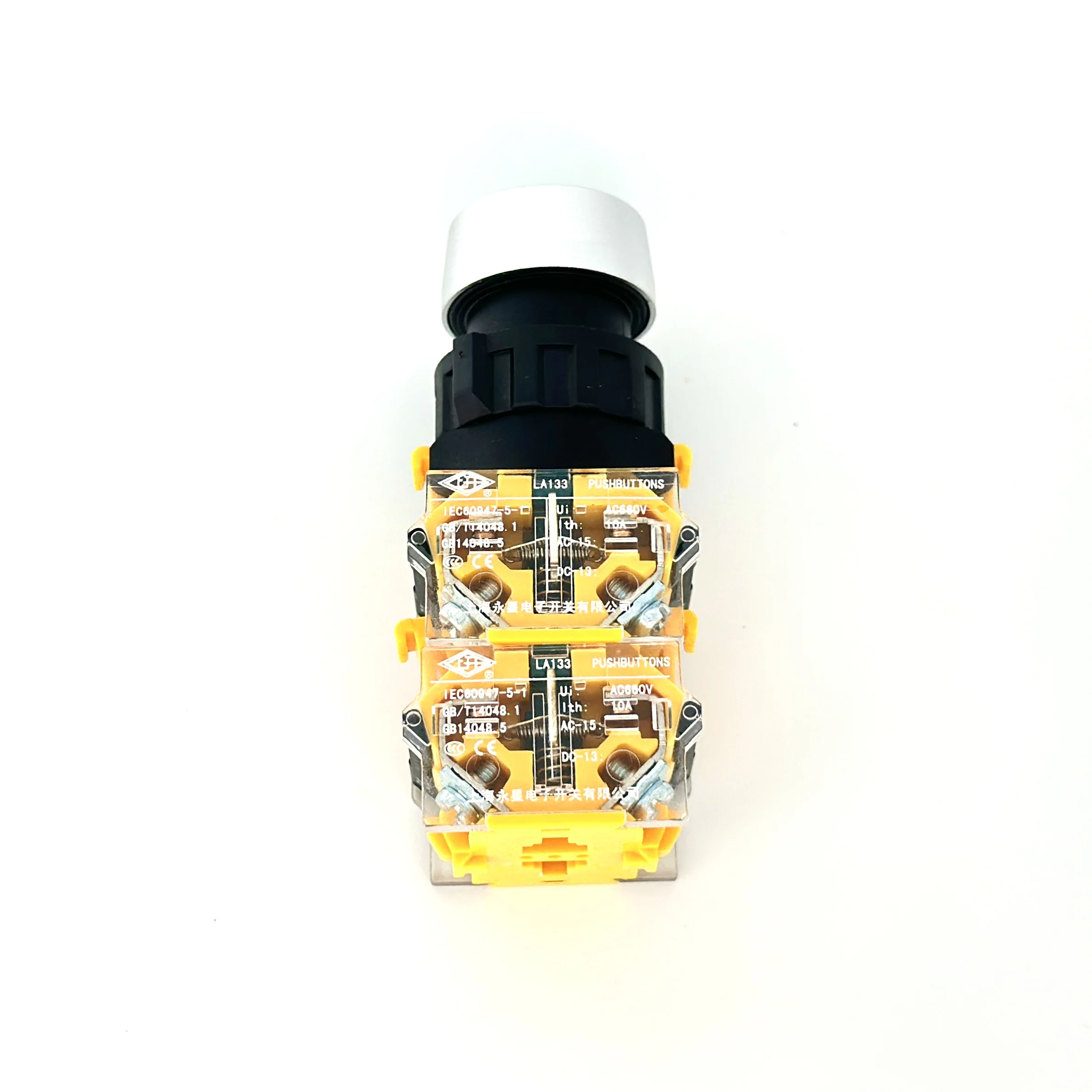

Why Choose Our 22mm 1NO1NC Momentary Push Button Switch?
Our switch is designed with durability and reliability in mind, making it ideal for industrial applications where performance is crucial. The unique self-reset flat head and metal plastic head design set it apart from competitors, offering a more ergonomic and visually appealing option. With a max current of 10A and max voltage of 660 VAC, it can handle demanding tasks with ease. The LED indicator provides clear visual feedback, enhancing user experience.
What Are the Key Features of Our Switch?
Our switch boasts a long mechanical life of 1 million cycles and an electrical life of 600,000 cycles for AC-15 and 250,000 cycles for DC-13, ensuring long-lasting performance. It also offers protection levels of IP40, IP65, and IP67, making it suitable for use in various environments. Additionally, we provide customization options to meet specific customer requirements, setting us apart from other suppliers.
Why Buy from Our Factory Direct Supplier?
As a factory direct supplier, we offer wholesale pricing, excellent customer service, and fast delivery times. We pride ourselves on our quality control processes, ensuring that each switch meets our high standards. By choosing us, you can be confident in the reliability and performance of your purchase, as well as the value for money it offers.
