Description

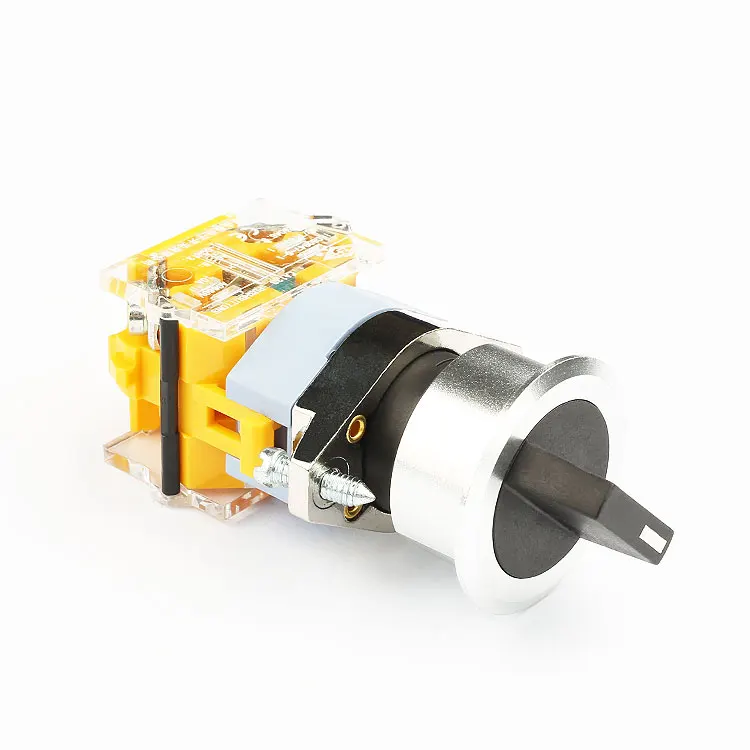

Our rotary switch stands out with its IP40, IP65, and IP67 protection levels, ensuring reliability even in harsh environments. The compact 22mm diameter mounting hole size makes it easy to install in various equipment. As a factory direct supplier, we offer competitive wholesale prices and excellent customer service, including a comprehensive warranty and after-sales support.
Choose our rotary switch for its superior quality, durability, and value for money. Perfect for industrial, commercial, and residential applications, it’s a must-have for anyone seeking a reliable and efficient switching solution.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(shangkai) yongxing
|
|
Model Number
|
LA133-E1.X3S-K11
|
|
Protection Level
|
IP40 IP65 IP67
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
660 VAC
|
|
Rated Insulation Voltage
|
660v ac
|
|
Rated Thermal Current
|
10A
|
|
Max.insulation voltage
|
2500 V/min
|
|
Usage Category
|
AC-15 DC-13
|
|
Mechanical Life
|
1000,000
|
|
Operation frequency
|
1200 cycles/h
|
|
Electrical life for AC-15
|
600000 cycles
|
|
Electrical life for DC-13
|
250000 cycles
|
|
Mounting Hole Size
|
22mm Diameter
|
Key Features and Advantages
Our 22mm 220V 3 Position Self Locking Rotary Switch offers unparalleled durability and performance. With a mechanical life of 1,000,000 cycles and electrical lives of 600,000 cycles for AC-15 and 250,000 cycles for DC-13, it ensures long-lasting reliability. The switch's IP40, IP65, and IP67 protection levels make it suitable for use in harsh environments, providing peace of mind in demanding applications.
Why Choose Our Rotary Switch?
As a factory direct supplier, we offer competitive wholesale prices without compromising on quality. Our switch is designed for easy installation with a 22mm diameter mounting hole size, and its 1NO1NC configuration provides versatile switching options. The high maximum current (10A) and voltage (660 VAC) ratings make it suitable for a wide range of applications, from industrial machinery to commercial equipment and residential use.
Our Commitment to You
We stand behind our products with a comprehensive warranty and excellent after-sales support. Our team is dedicated to ensuring your satisfaction, providing prompt assistance and solutions whenever needed. Choose our rotary switch for its superior quality, durability, and value for money, and experience the difference of working with a reliable factory supplier.
