Description
Product Specifications:
- Max. Rating Current & Voltage: 3A 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Resistance: 1,500V
- Electronic Life: Momentary: 50,000 cycles; Alternate: 25,000 cycles
- Mechanical Life: Momentary: 200,000 cycles; Alternate: 50,000 cycles
- Certification: CQC, CE
- Operating Temperature: -5°C to +75°C
- IP Code: IP40
- Additional Features: Brightness ≥100cd/m², CTI ≥100, Applying Frequency AC50~60Hz
Product Advantages:
- Customization: With our independent plant and advanced experimental equipment, we can develop switches tailored to your requirements.
- Quality Assurance: All workshops adhere to 5S and 5M management standards, ensuring consistent quality.
- Long Lifespan: High mechanical and electronic life cycles mean fewer replacements and lower maintenance costs.
- Certified Quality: CQC and CE certifications guarantee compliance with international standards.
After-Sales Service: We provide comprehensive after-sales support, including technical assistance and warranty services. Our dedicated customer service team is always ready to help.
Why Choose Us?
- We are a factory direct supplier, offering competitive wholesale prices.
- 60 senior engineers and a perfect development process ensure innovation and reliability.
- Our products are widely recognized for their quality and performance.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |

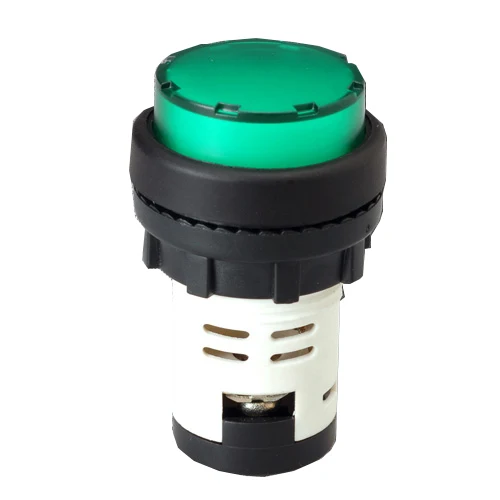

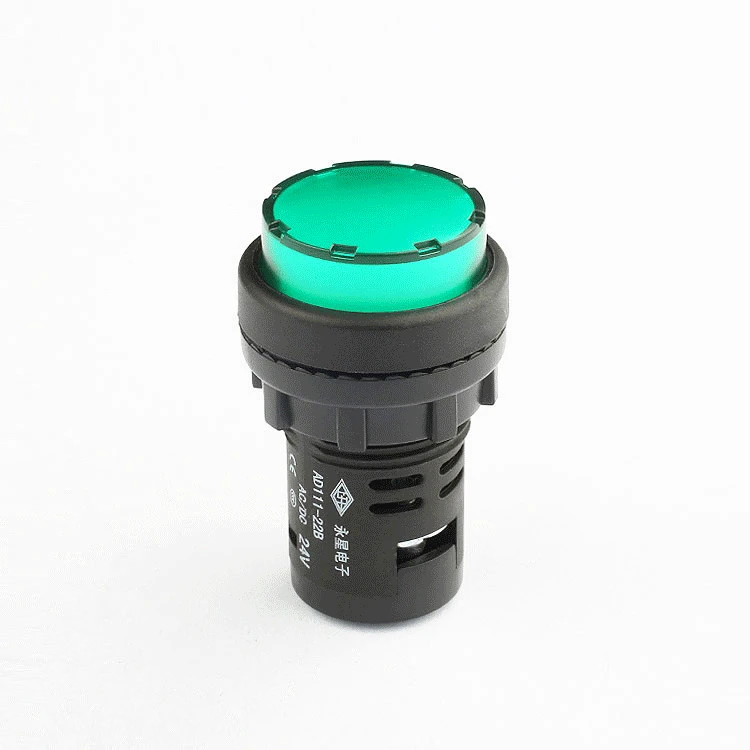

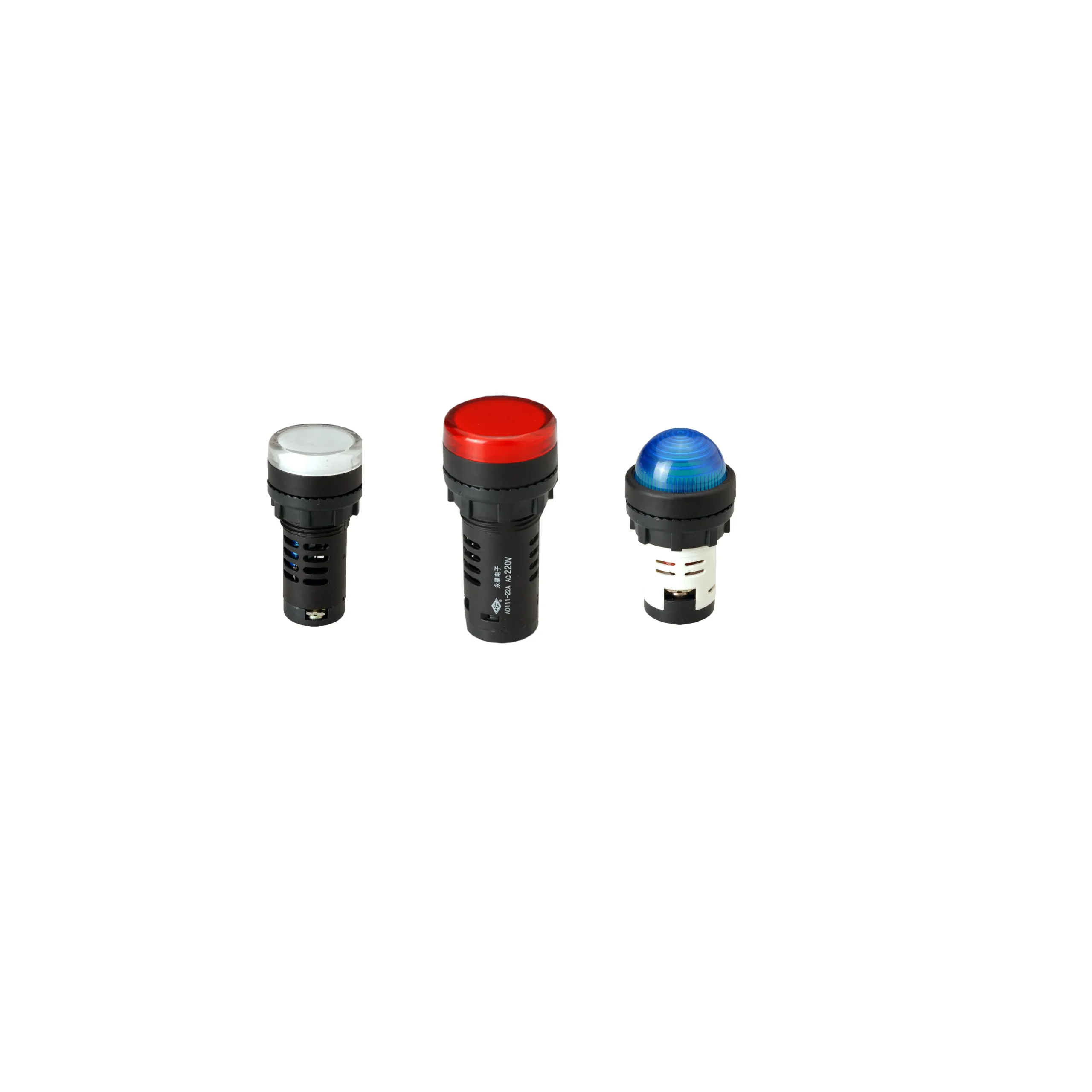

Why Choose Our 22mm LED Light Switch Indicator?
Our 22mm LED Light Switch Indicator stands out for its durability, customization options, and competitive pricing. As a factory direct supplier, we offer wholesale rates and can develop switches tailored to your specific needs. The indicator light is perfect for industrial control panels, machinery, and automotive dashboards, providing reliable indication and long lifespan.
What Are the Key Features of This Product?
Key features include a 3A 250V AC rating, ≤50mΩ contact resistance, ≥100MΩ insulation resistance, and 1,500V dielectric resistance. It also boasts a long electronic and mechanical life, with certifications from CQC and CE ensuring compliance with international standards.
How Can We Benefit from Your After-Sales Service?
We provide comprehensive after-sales support, including technical assistance and warranty services. Our dedicated customer service team is always ready to help, ensuring that you have a smooth and satisfying experience with our products.
