Description

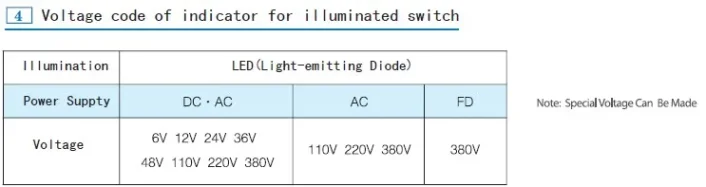

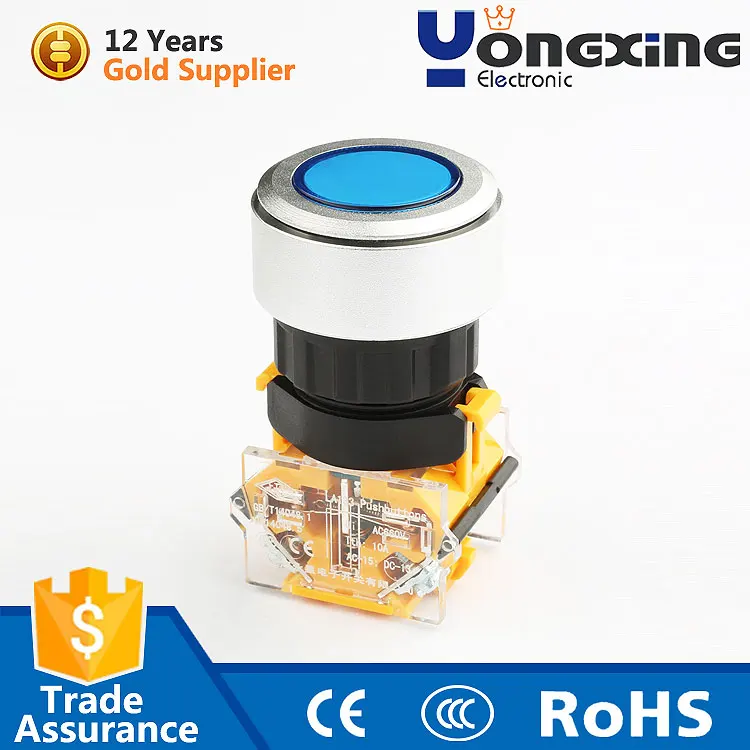

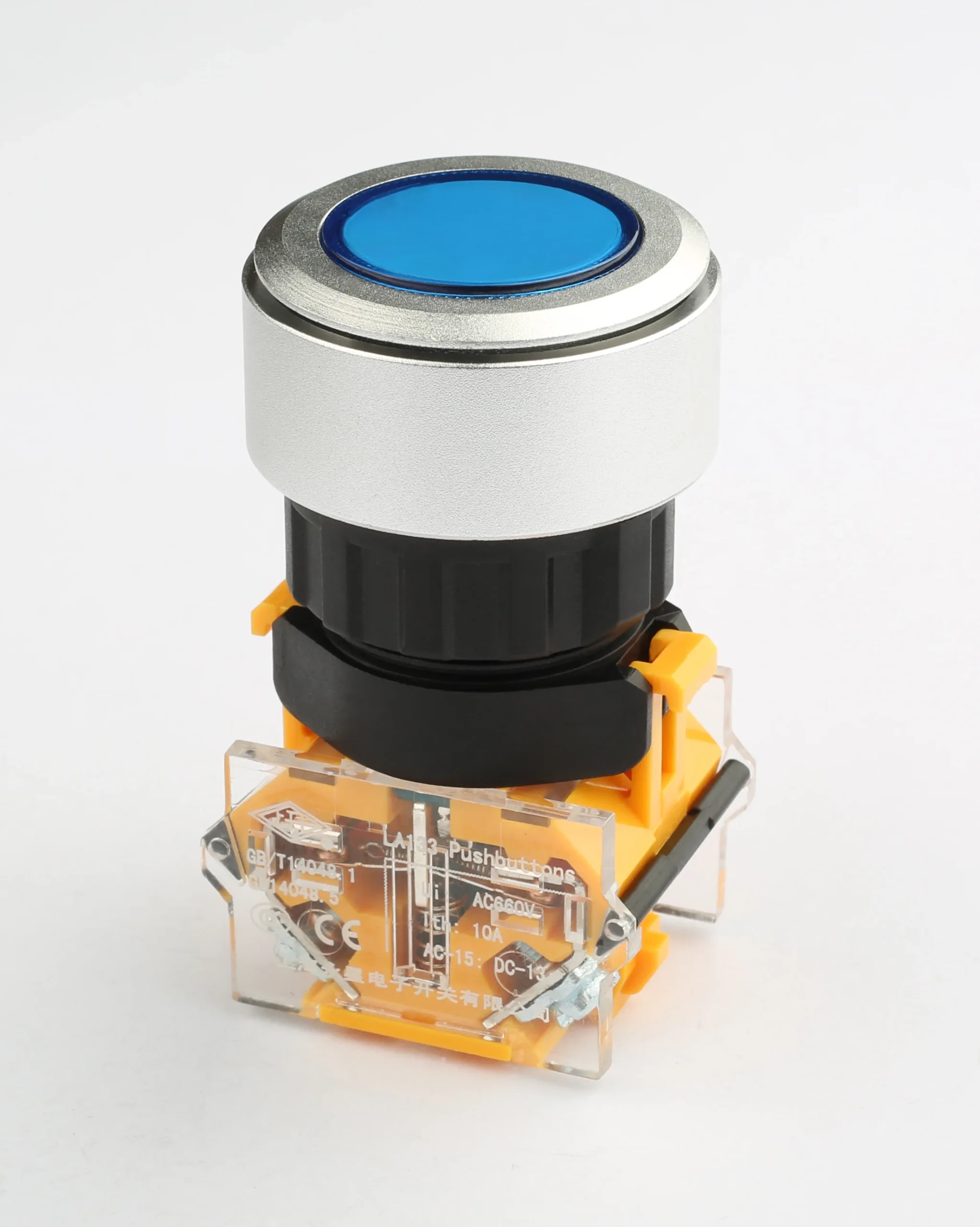

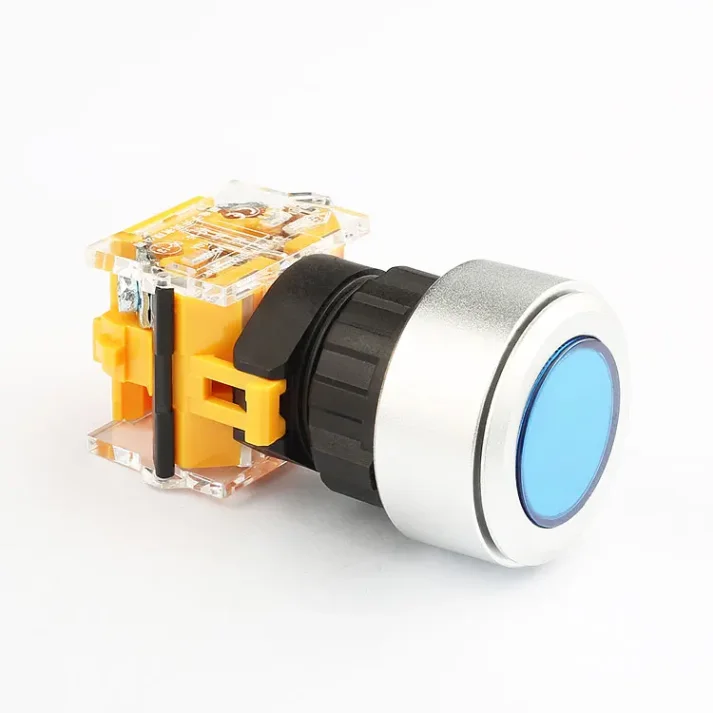

Welcome to Yongxing, a leading factory supplier specializing in high-quality pushbutton switches. Our LA133-E series round raised lens pushbutton switches are designed to meet the diverse needs of electric appliances. With a 12VDC blue light indicator, these switches not only provide a clear visual indication but also enhance the aesthetics of your devices.
Product Specifications:
- Operating temperature: -25°C to +55°C
- Installation group: Class III
- Degree of pollution: Level 3
- Installation height: ≤2000m
- Vibration resistance: 10~200HZ, 1mm, 15g
- Relative humidity: ≤98%
- Protection degree: IP40, IP65, or IP67
- Rated Insulation Voltage: AC660V
- Rated Thermal current: 10A
- Max insulation voltage: 2500V/min
- Usage Category: AC-15, DC-13
- Mechanical life: Push button: 1,000,000 cycles; Keylock: 300,000 cycles
Product Advantages:
Our pushbutton switches stand out from the competition with their exceptional durability and reliability. The long lever pushbutton head ensures easy operation, while the illuminated pushbutton actuator provides clear visibility even in low-light conditions. As a factory supplier, we offer competitive wholesale prices and can accommodate bulk orders, making us the ideal choice for businesses looking to save on costs without compromising on quality.
After-Sales Service:
We are committed to providing excellent after-sales service. If you have any questions or need further assistance, please don’t hesitate to contact our online customer service team. We are here to help you every step of the way.
| Operating temperature | -25°c~+55°c |
| Installation group | III Class |
| Degree of pollution | Level 3 |
| Installation height | ≤2000m |
| Vibration | 10~200HZ.1mm.15g |
| Relative humidity | ≤98% |
| Protection degree | IP40 or IP65 or IP67 |
| Rated Insulation Voltage | AC660V |
| Rated Thermal current | 10A |
| Max insulation voltage | 2500V/min |
| Usage Category | AC-15 DC-13 |

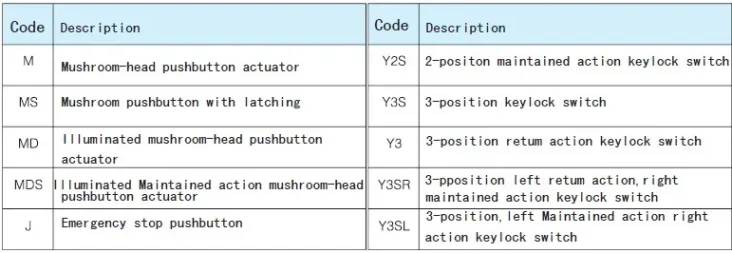

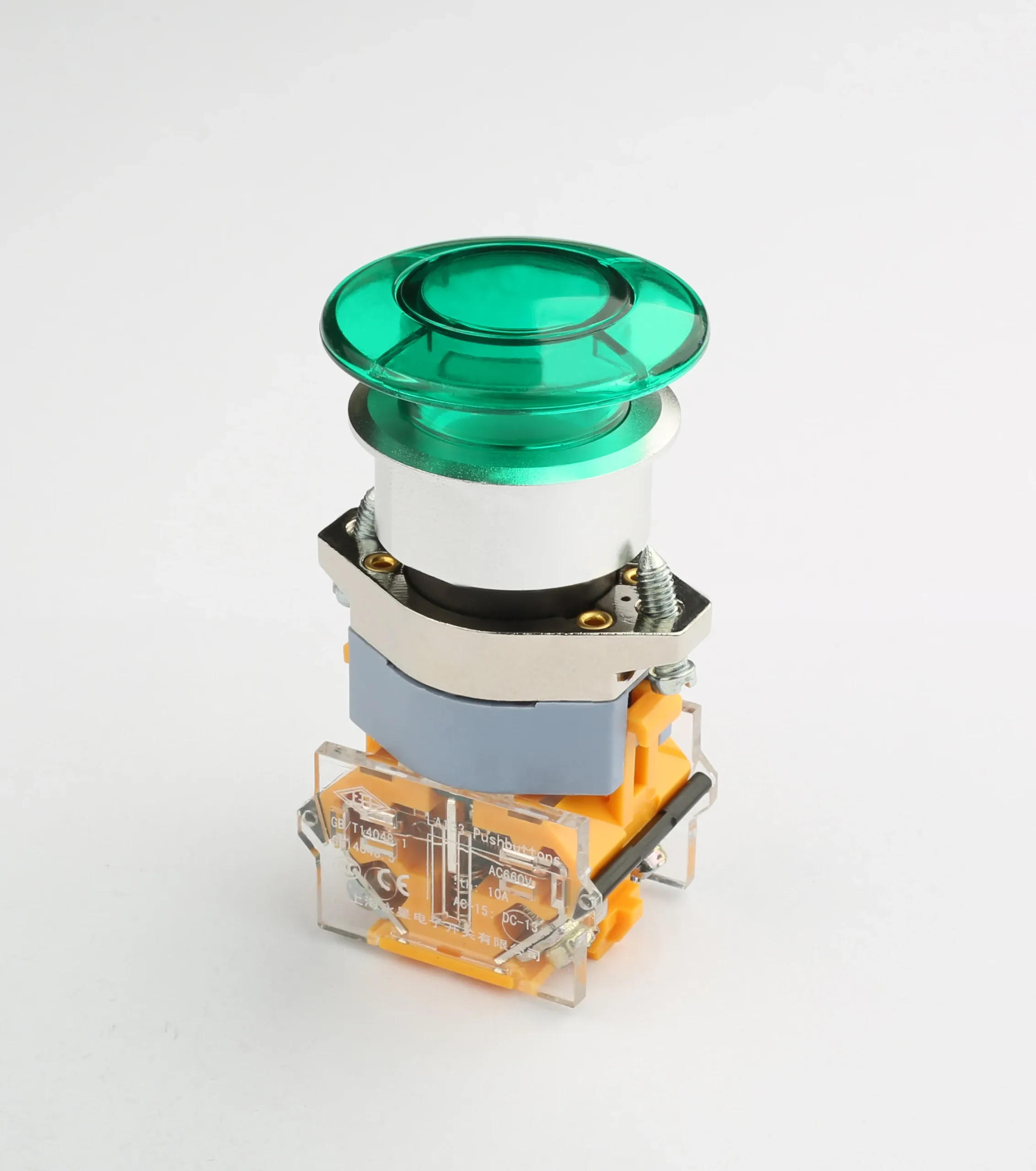

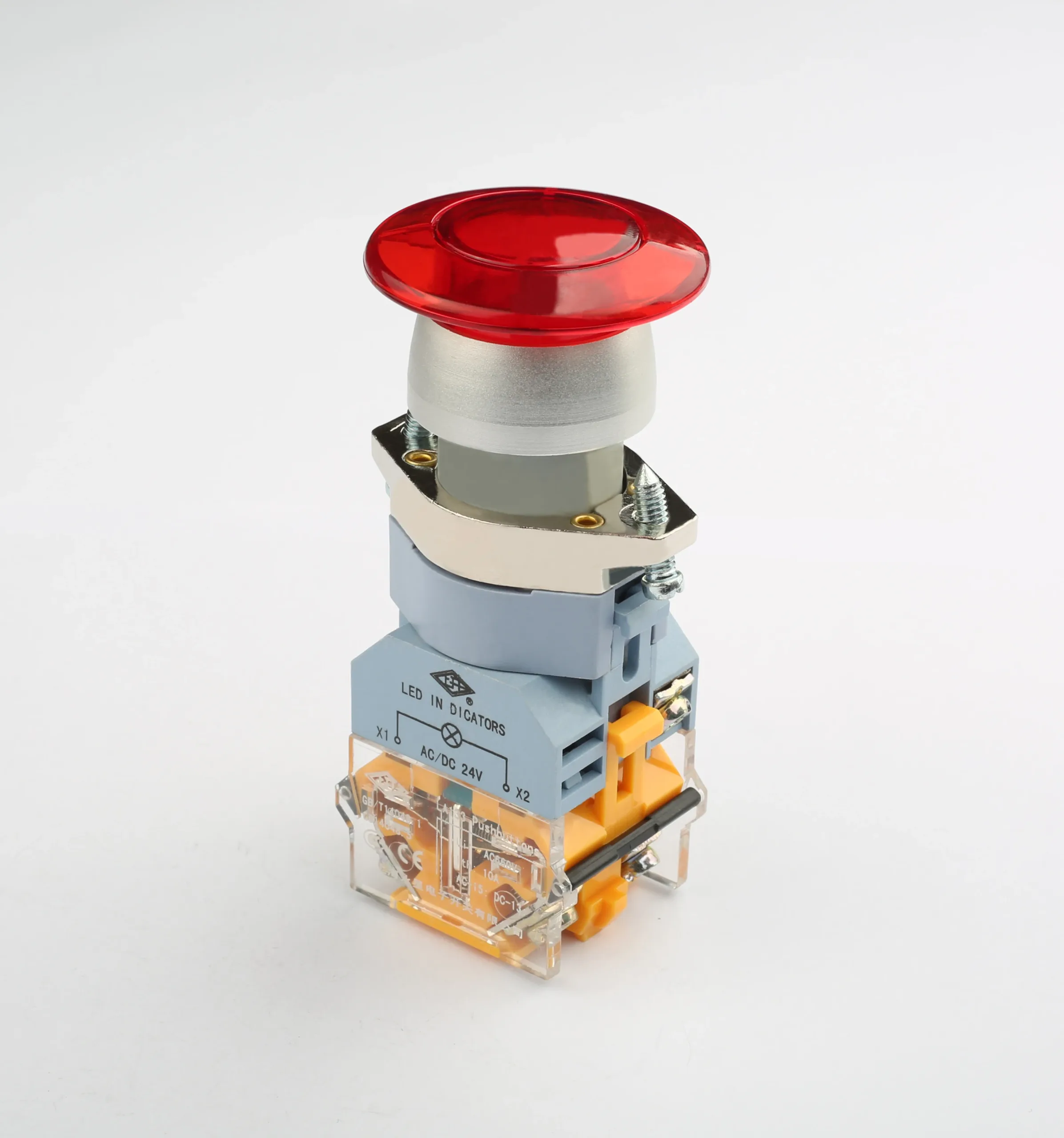

| Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator | 1 million |
| Rotary switch,Key switches&Maintained action actuator | 0.3 million |
Why Choose Our 22mm Pushbutton Switch?
Our 22mm pushbutton switch is designed for durability and reliability, making it the perfect choice for electric appliances, industrial control systems, and home automation. With a long lever pushbutton head and an illuminated actuator, it provides easy operation and clear visibility in any lighting condition.
What Makes Our Product Stand Out?
Our switch stands out from the competition with its high mechanical life (1,000,000 cycles for push buttons) and a wide range of protection degrees (IP40, IP65, IP67). As a factory supplier, we offer competitive wholesale prices and can accommodate bulk orders, ensuring you get the best value for your money.
How Can We Help You?
We are committed to providing excellent customer service. Whether you need assistance with product selection, have questions about our wholesale pricing, or require after-sales support, our team is here to help. Contact us today to learn more about how our 22mm pushbutton switch can benefit your business.
