Description
|
Certification
|
CQC
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
SK(ShiningKey)
|
|
Model Number
|
LA133
|
|
Protection Level
|
IP40/IP65
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250V
|
|
LED
|
Other
|
|
Name
|

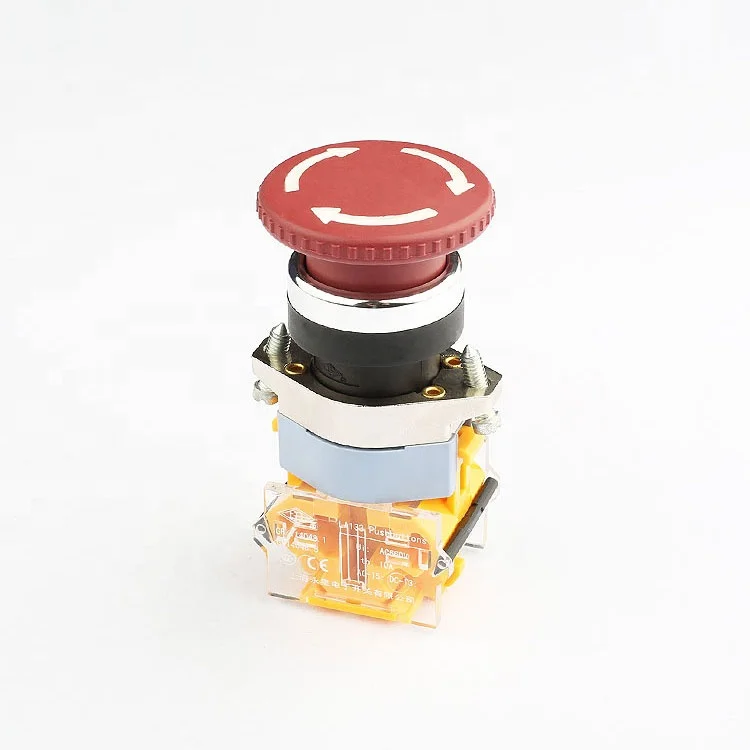

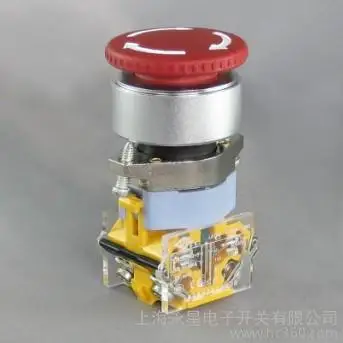

22 mm Big Round Head Emergency Stop Switch Red Button Switch
|
|
Shape
|
round mushroom button switch
|
|
Dielectric Strength
|
1500V push button switch
|
|
Size
|
22mm
|
|
Life
|
300,000 for latching, 1,000,000 for momentary
|
|
Contact resistance
|
<50mΩ
|
|
Insulation resistance
|
>100MΩ
|
|
Delectrice resistance
|
1500V
|
|
Mechanical life
|
50000
|
Key Features and Advantages
Our 22mm Big Round Head Emergency Stop Switch stands out with its striking red button, ensuring immediate visibility in emergency situations. As a factory supplier, we offer this high-quality switch at wholesale prices, making it an excellent value for industrial applications. The switch is CQC certified, guaranteeing its safety and reliability. With a maximum current of 16A and voltage of 250V, it's suitable for a wide range of machinery and equipment.
Durable and Reliable Performance
This emergency stop switch is built to last, with a mechanical life of 50,000 operations and an electrical life of 300,000 operations for latching and 1,000,000 for momentary use. Its high dielectric strength of 1500V ensures reliable performance even in harsh environments. Additionally, the switch offers excellent insulation and contact resistance, further enhancing its durability and reliability.
Versatile Applications and Wholesale Availability
Our emergency stop switch is ideal for various industrial safety applications, including machine control and emergency shutdown systems. As a factory supplier, we can provide bulk quantities at competitive prices, making it an ideal choice for businesses looking to stock up on this essential component. Choose our factory-direct emergency stop switch for unbeatable value, performance, and peace of mind.
