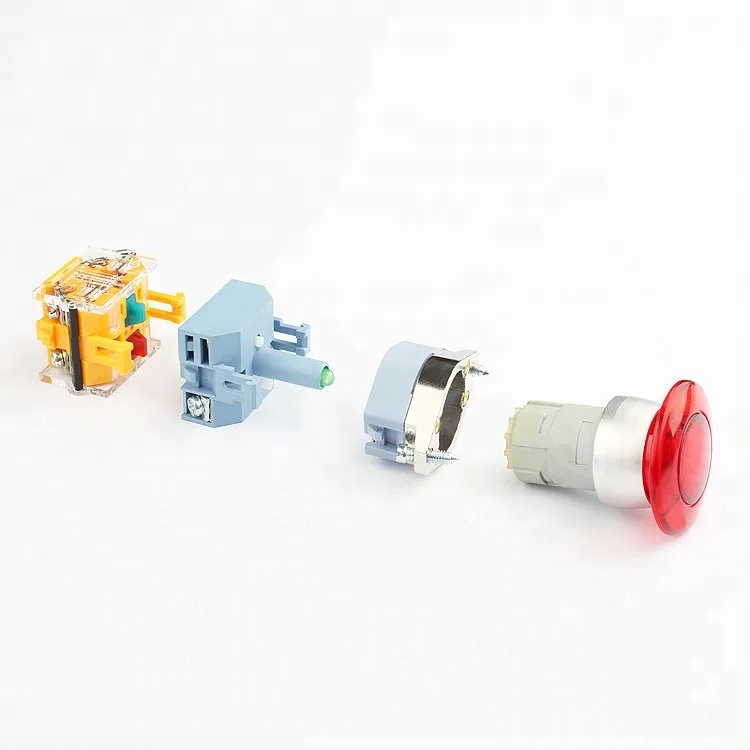

Factory Wholesale 22mm Self-locking Illuminated Mushroom Push Button Switch
As a direct factory supplier, we offer wholesale pricing on our high-quality 22mm self-locking illuminated mushroom push button switches. Our switches are designed to meet the needs of various industrial applications, offering durability, reliability, and customization options.
Product Specifications:
- Model Number: LA133-A1.MDS/K11 12V R
- Brand Name: Shangkai(SK)
- Place of Origin: Shanghai, China
- Max. Current: 6A
- Max. Voltage: 380V
- Mounting Hole Size: 22mm
- Color: Red
- Lamp Color: Red
- IP Level: IP40/IP65
- Switch Combination: 1NO1NC
- Function: 1NO 1NC
- Electrical Life: 250,000 cycles
- Mechanical Life: 250,000-600,000 cycles
- Operating Temperature: -25°C to 55°C
- Rated Insulation Voltage: AC660V
- Max. Insulation Voltage: 2500V/min
- Rated Thermal Current: 10A
- Anti-vibration: 10~2000Hz, 1mm, 15g
Product Advantages:
- Customization: We can customize switches to meet your specific requirements.
- Advanced Facilities: Our company has an independent plant, injection molding workshop, and advanced experimental equipment.
- Professional Team: We have over 60 senior engineers and implement 5S management in all workshops.
- Factory Direct Pricing: As a factory supplier, we offer competitive wholesale pricing.
After-sales Service: We provide comprehensive after-sales service to ensure your satisfaction.
Contact Us: Click to contact us for more information or to place an order.
| Rated insulation voltage | AC660V |
| Max. insulation voltage | 2500V/min |
| Rated thermal current | 10A |
| Anti vibration | 10~2000Hz.1mm.15g |
| Operating temperature | -25-55℃ |
| IP code | IP40/IP65/IP67 |
| Rating current | 6A |
| Mechanical life | 250,000-600,000 cycles |
| Rated insulation voltage | AC660V |
| Max. insulation voltage | 2500V/min |
| Rated thermal current | 10A |
| Anti vibration | 10~2000Hz.1mm.15g |
| Operating temperature | -25-55℃ |
| IP code | IP40/IP65/IP67 |
| Rating current | 6A |
| Mechanical life | 250,000-600,000 cycles |
Why Choose Our 22mm Self-locking Illuminated Mushroom Push Button Switch?
Our 22mm self-locking illuminated mushroom push button switch is designed for industrial applications, offering durability, reliability, and customization options. As a factory supplier, we provide wholesale pricing and comprehensive after-sales service.
Key Features:
Self-locking mechanism ensures stable operation, while the illuminated design provides clear visual indication. The switch is rated for 6A current and 380V voltage, with an IP40/IP65 protection level, making it suitable for various industrial environments.
Applications:
Ideal for industrial control, machinery, automation, equipment, and systems. Our switch can be customized to meet your specific requirements, ensuring a perfect fit for your application.
