Description
| Panel Thickness | 1-10mm |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ 4 pin push button switch |
| Torque | 5-14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.8mm |
| Mounting Hole Size | 22mm |
| Dielectric Strength | 2000VAC |
| Electronic Life | >1,000,000 times |
| Mechanical Life | >200,000 times |
| Operating temperature | -20°c~+55°c |
| IP code | IP67 IK09 |
| Switch Rating | 2A /36VAC emergency push button switch |
| Contact Configuration | 1NO |
| Operating Type | Momentary elevator push button switch |
| The Front Shape | High Round |
| The Crust Material | Stainless Stell,Nickel-plated Brass or Gold-Plated Brass |
|
Material |
Contact : Sliver Alloy (Can be made to order) |

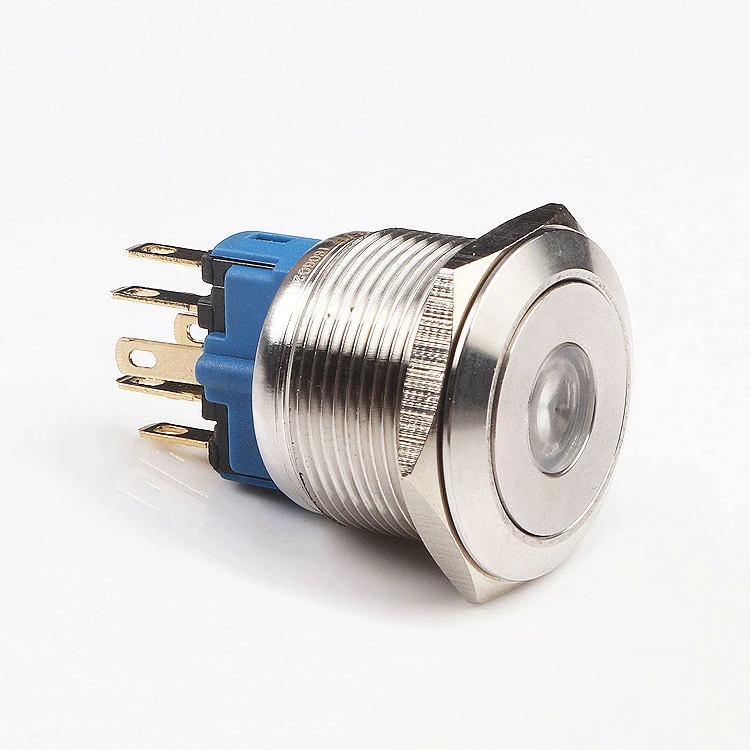

Why Choose Our 22mm Stainless Steel Push Button Switch?
Our 22mm stainless steel push button switch stands out due to its durability, reliability, and customization options. Crafted with high-quality materials like stainless steel, nickel-plated brass, and gold-plated brass, it ensures long-lasting performance even in harsh environments. The switch is rated for 2A/36VDC and can withstand up to 1,000,000 mechanical operations and 200,000 electrical operations, making it ideal for industrial controls, electrical panels, and automotive applications.
What Makes Our Switch Different?
Unlike other switches on the market, our product offers a high round front shape with a mirror surface and CD pattern, providing a sleek and professional look. Additionally, it comes with an LED indicator for easy visibility and can be customized to meet specific customer requirements. Our factory wholesale pricing ensures that you get the best value for your money.
How Can We Help You?
As a direct factory supplier, we offer excellent customer service and support. Whether you need technical assistance, product customization, or bulk order discounts, we are here to help. Our switches are designed to meet international standards and are backed by a warranty, giving you peace of mind with your purchase. Choose us for your push button switch needs and experience the difference in quality and service.
