Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
50000
|
|
insulation resistance
|
≥100MΩ
|
operating temperature
|
25T125
|
|
dielectric strength
|
1500V
|
max.rated current & voltage
|
5(1)A 250V AC
|
Why Choose Our Micro Switch?

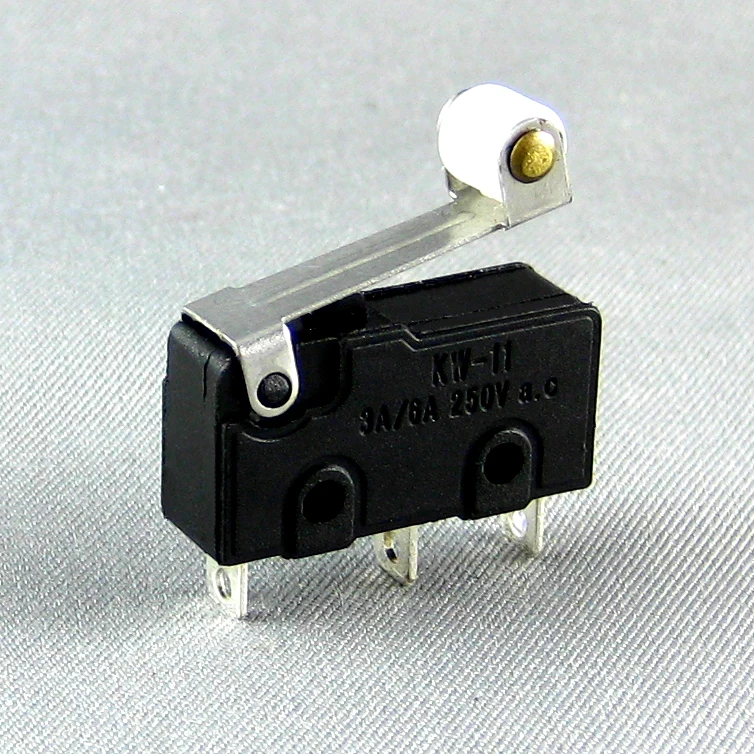

Our micro switch stands out for its durability and reliability. With a mechanical life of 100,000 times and an electronic life of 50,000 cycles, it ensures long-lasting performance. The roll lever design provides smooth operation, making it ideal for mouse applications.
What Are the Key Specifications?
The switch operates at 250V with a maximum current of 5(1)A. It features a contact resistance of ≤50MΩ and an insulation resistance of ≥100MΩ, ensuring safe and efficient operation. The black plastic housing adds a sleek look while providing durability.
Where Can It Be Used?
This micro switch is versatile and can be used in industrial settings, electric power applications, households, and telecommunication equipment. Its wide operating temperature range (-25℃ to 125℃) makes it suitable for various environments.
