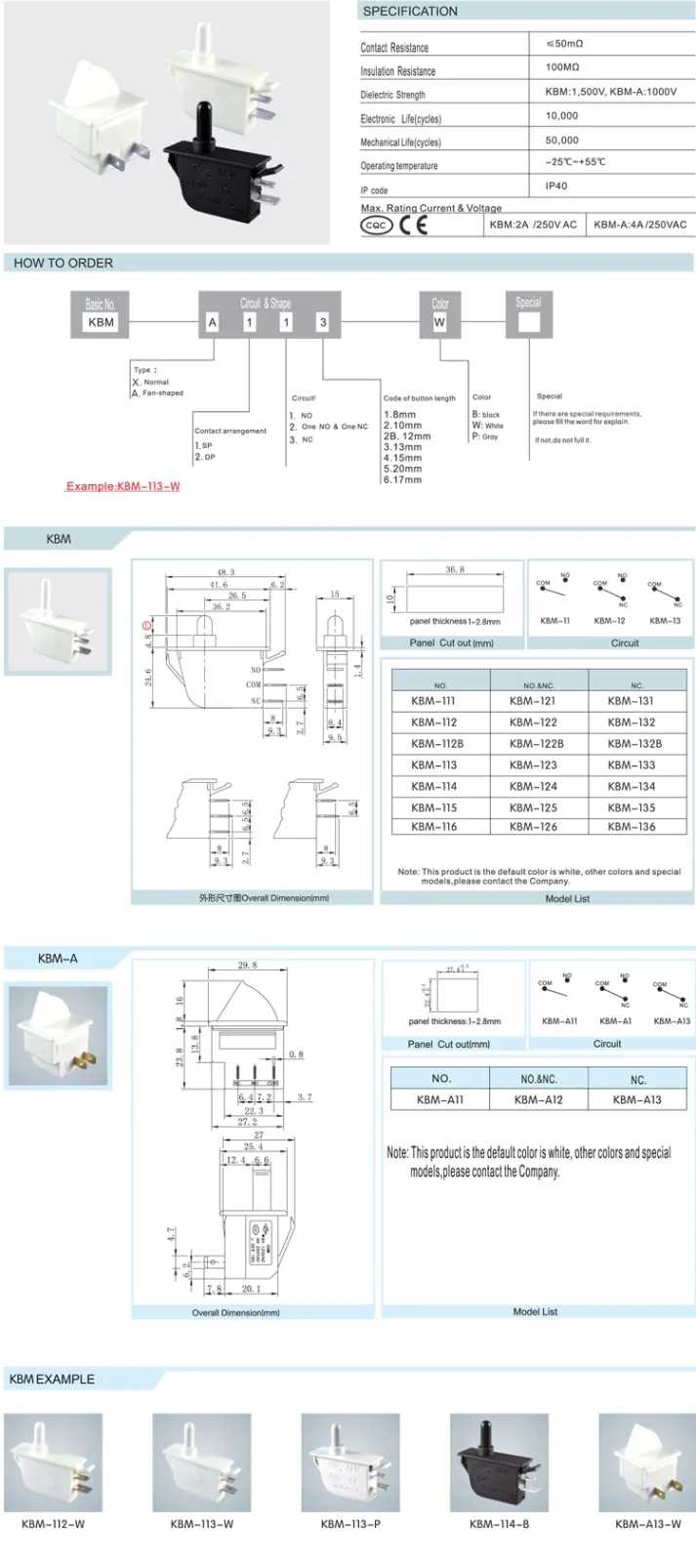

Description
Contact resistance |
≤50mΩ |
Insulation resistance |
100MΩ |
Dielectric strength |
KMB(normal):1500v KBM-A(sector):1000v |
Electronic life (cycles) |
10000 cycles |
Mechanical life (cycles) |
50000 cycles |
Operating temperature |
-25℃~+55℃ |
IP code |
IP40 |
Max.Rating Current&Voltage |
KMB(normal):2A/250V AC KBM-A(sector):4A/250V AC |
Certification |
CQC, CE |
Key Features

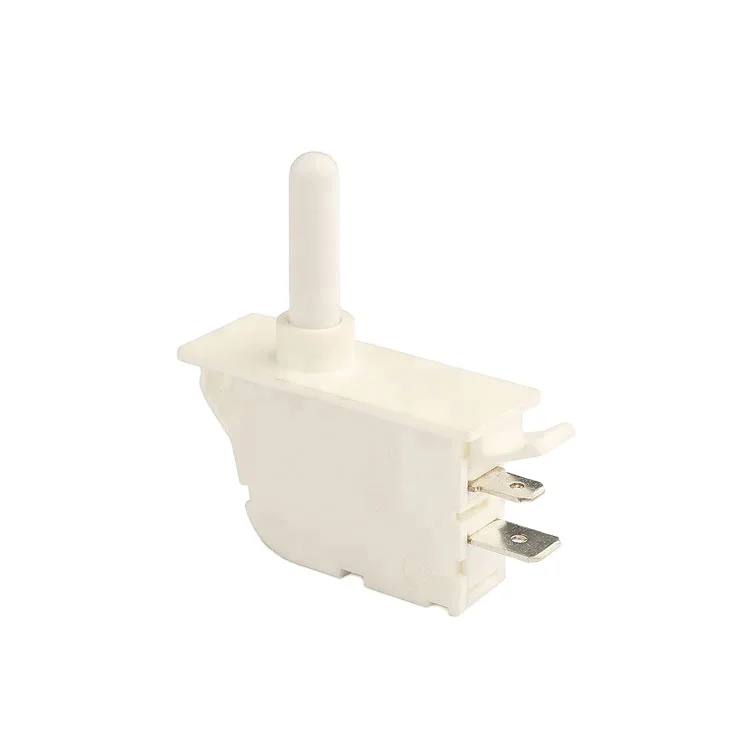

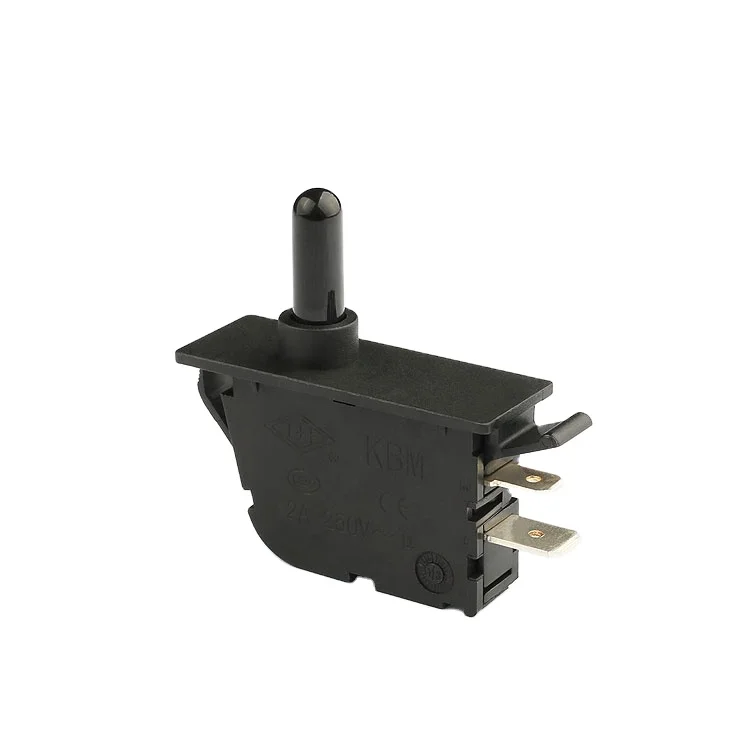

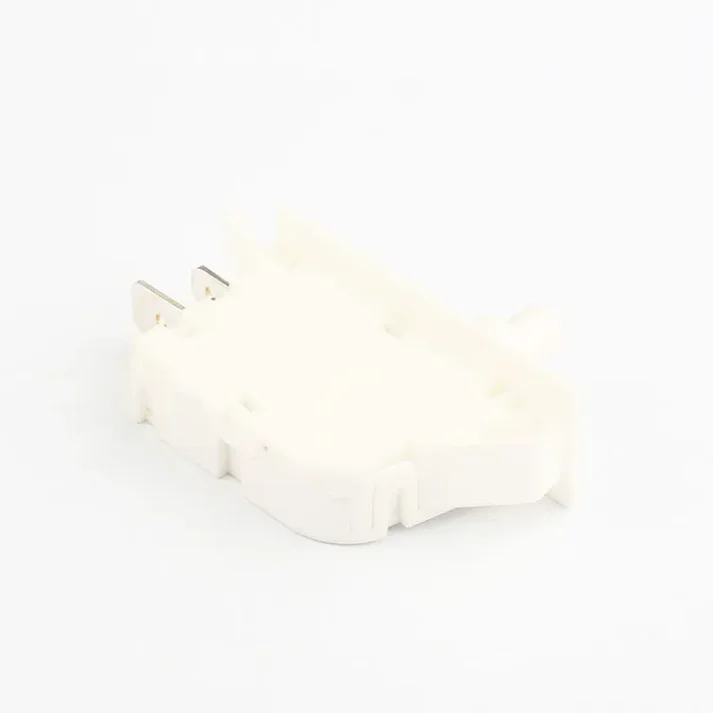

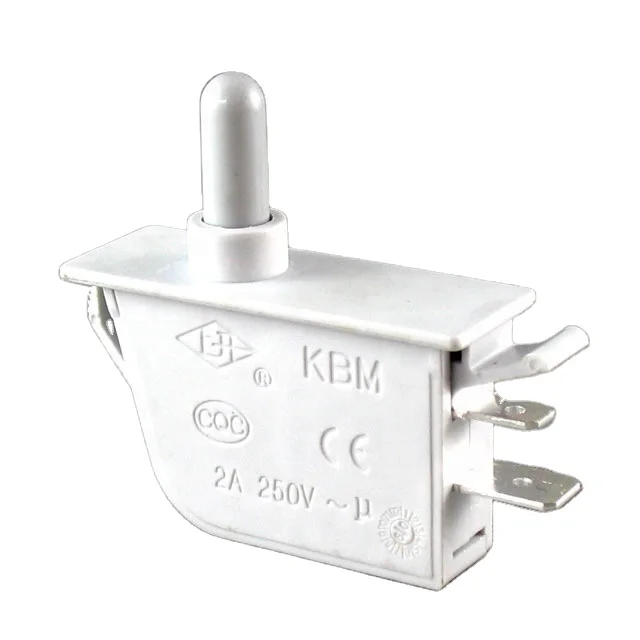

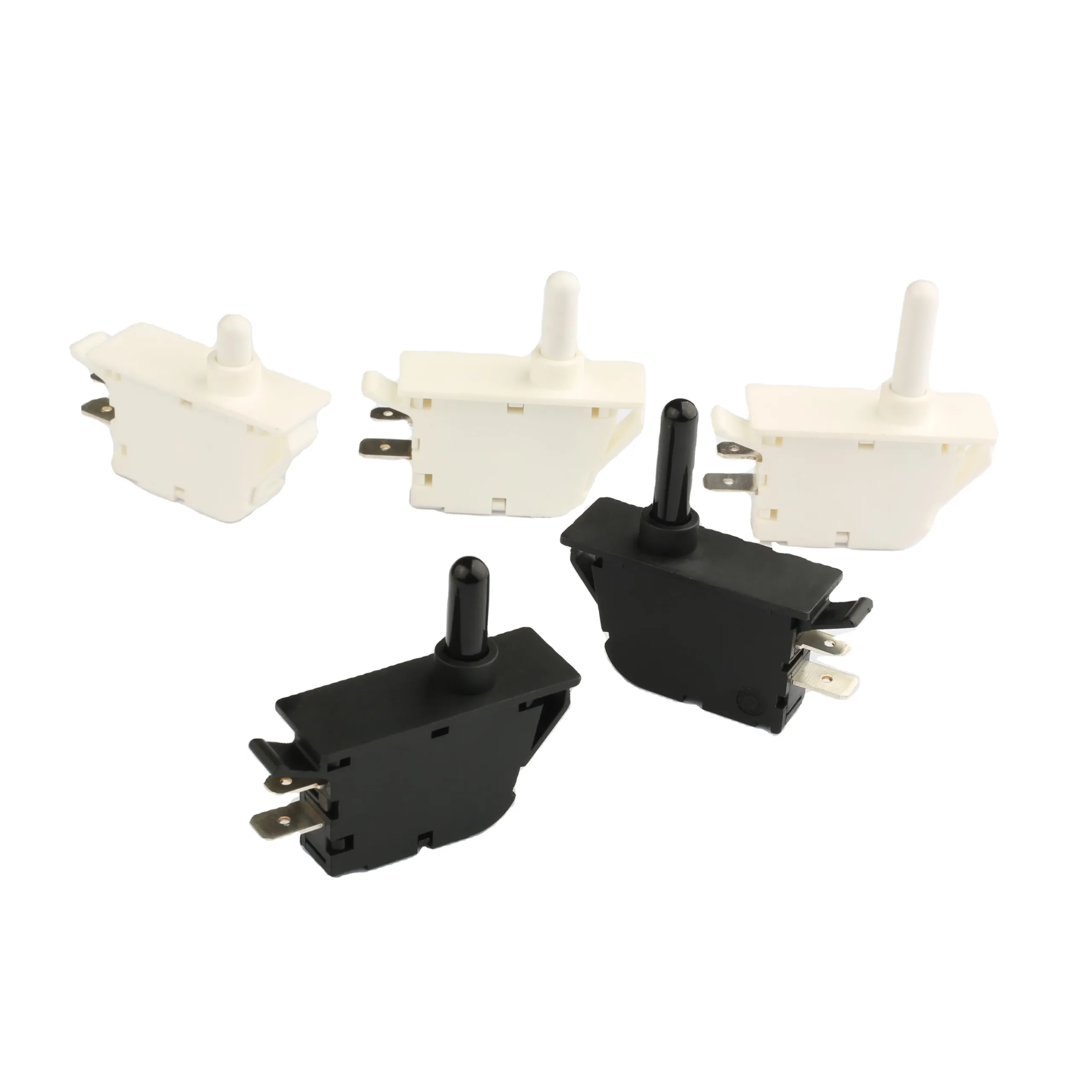

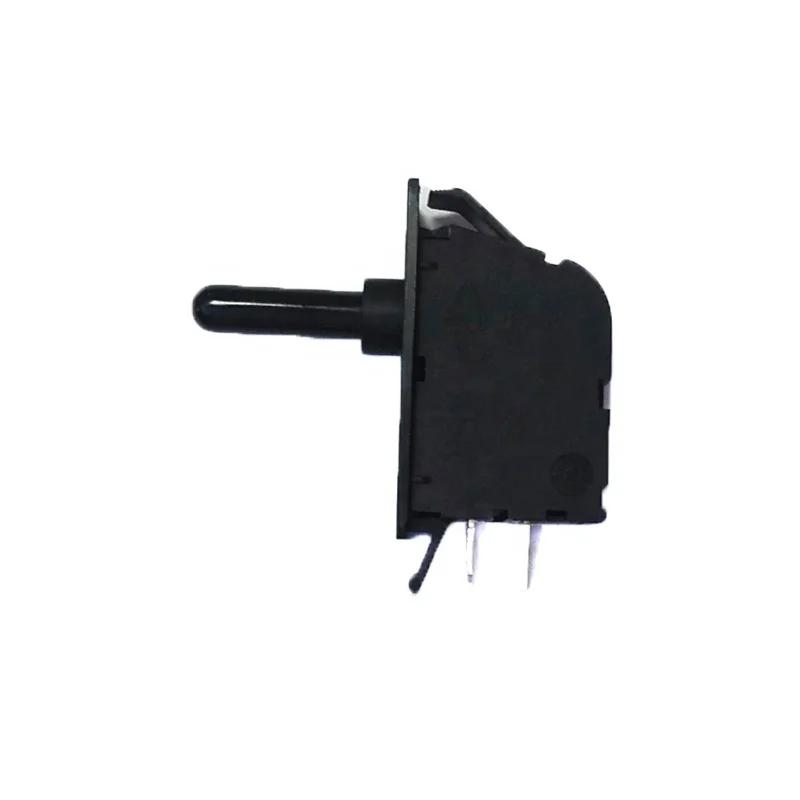

Our Refrigerator Door Light Switch is designed with precision to ensure reliable and efficient operation. It features a 2A/250V AC rating, making it suitable for most refrigerators. The 1NO1NC switch combination provides flexibility, while the high electronic and mechanical life guarantee longevity.
Why Choose Us?
As a factory supplier and wholesaler, we offer competitive prices without compromising on quality. Our product is certified by CQC, CE, and RoHS, ensuring it meets international safety standards. With customization services available for bulk orders, we can tailor the switch to meet your specific needs.
Durability & Reliability
Operating within a wide temperature range and featuring an IP40 protection level, our switch is built to last. It guarantees efficient and safe operation, making it the ideal choice for your refrigerator door lighting needs.
