Factory Wholesale 3.5mm/3.81mm Pitch 6-Pin Female Terminal Block Connector

100 - 1,999  pieces
$0.17

2,000 - 4,999  pieces
$0.15

>= 5,000  pieces
$0.13

0 reviews

Factory wholesale 6-pin female terminal block connector. High quality, competitive price, bulk purchase available.

Description

Our factory-direct wholesale 6-pin female terminal block connector is a high-quality electrical component designed for industrial, automotive, and wire connecting applications. With a pitch of either 3.5mm or 3.81mm, it offers flexibility in installation. The connector is made of tin-plated copper for excellent conductivity and durability. It supports a wide range of poles from 2 to 24, accommodating various connection needs. The push-in connection method ensures easy and quick installation, saving time and effort. Rated for a continuous current of 12A and a voltage of 300V, it can handle demanding electrical loads. The housing is made of PA66, a high-strength, flame-retardant material, ensuring safety and reliability. The connector operates efficiently in temperatures ranging from -40℃ to +150℃, making it suitable for harsh environments. With CQC and UL certifications, it meets international safety standards. Our competitive edge lies in our factory-direct supply, ensuring competitive pricing and reliable quality. We also offer bulk purchasing options, making it ideal for large-scale projects. Choose our terminal block connector for a cost-effective, high-performance solution.
pitch
3.5mm;3.81mm
operation temperature
-40℃ to +150℃
poles
2~24 poles
contact resistance
20MΩ
certificate
CQC;UL
insulation resistance
>5000MΩ DC500V

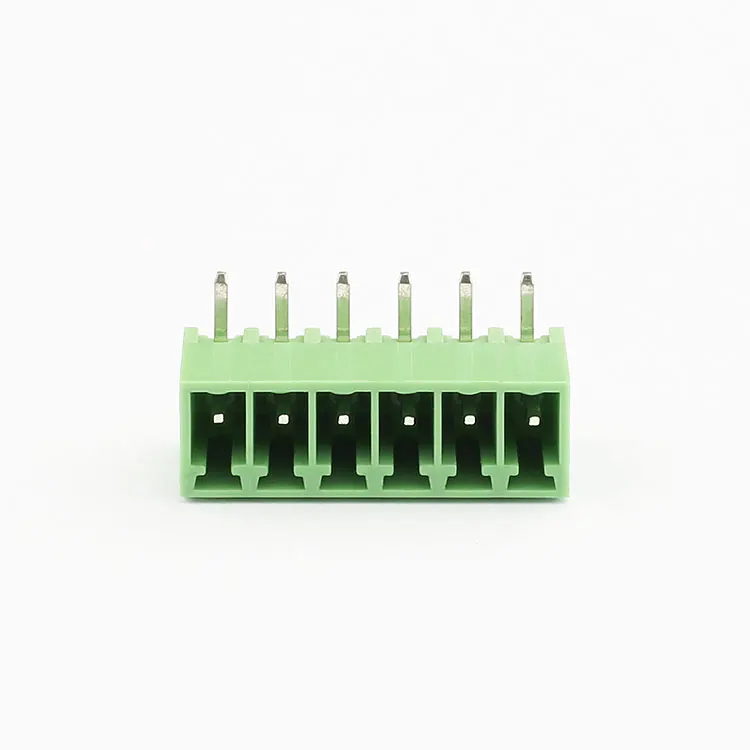

Electronic component product image for cross-border e-commerce


Why Choose Our Terminal Block Connector?

Our terminal block connector stands out for its high-quality materials, including tin-plated copper for superior conductivity and PA66 housing for durability and safety. The push-in connection method simplifies installation, saving time and effort. With a wide temperature range and multiple certifications, it's suitable for various industrial and automotive applications.

What Are the Key Features?

Key features include a 3.5mm/3.81mm pitch, 6-pin design, and support for 2-24 poles. It can handle up to 12A continuous current and 300V voltage, making it versatile for different electrical needs. The flame-retardant housing ensures safety in harsh environments.

How Does It Benefit Your Projects?

Our terminal block connector offers a cost-effective solution for large-scale projects, thanks to our factory-direct wholesale pricing. Its high-performance characteristics ensure reliable electrical connections, reducing downtime and maintenance costs. Choose our product for a durable, efficient, and safe electrical connection solution.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Place of Origin

Shanghai, China

Application

Industrial, Automotive, wire connecting, spring terminal block

Number of Pole

2~24

Contact Material

tin-plated copper

Connection Method

push-in connection

Max continuous amp

12A

Brand Name

Yong Xing

Model Number

YE430-350-6P/YE430-381-6P

Number of Contacts

1 – 10

Conductor Size

21 – 30 AWG

Type

PCB

Color

Green

Poles

2-3ploles

Operation temperature

-40℃~+150℃

Rated voltage

300V

Rated Current

16A

Housing

PA66

Contact resistance

20mΩ
