Description

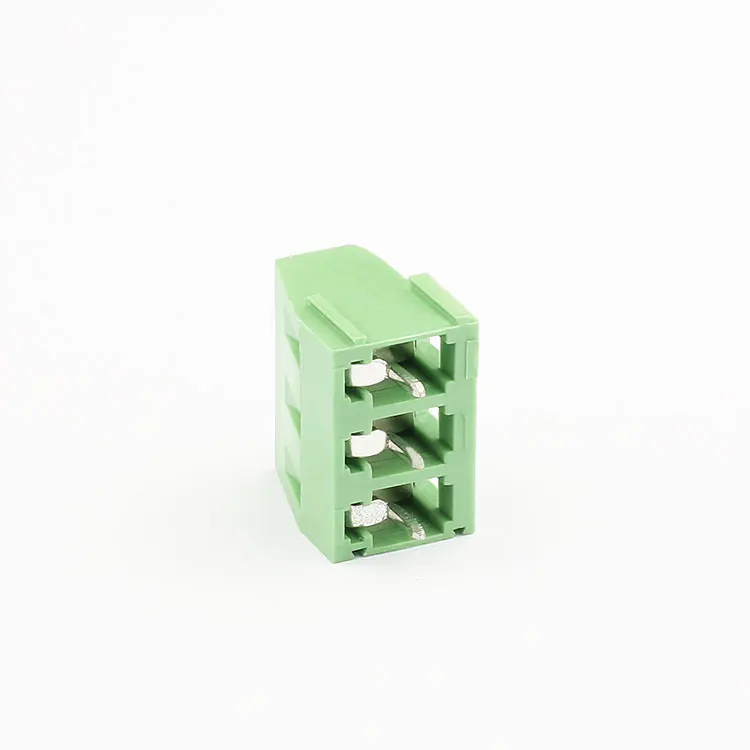

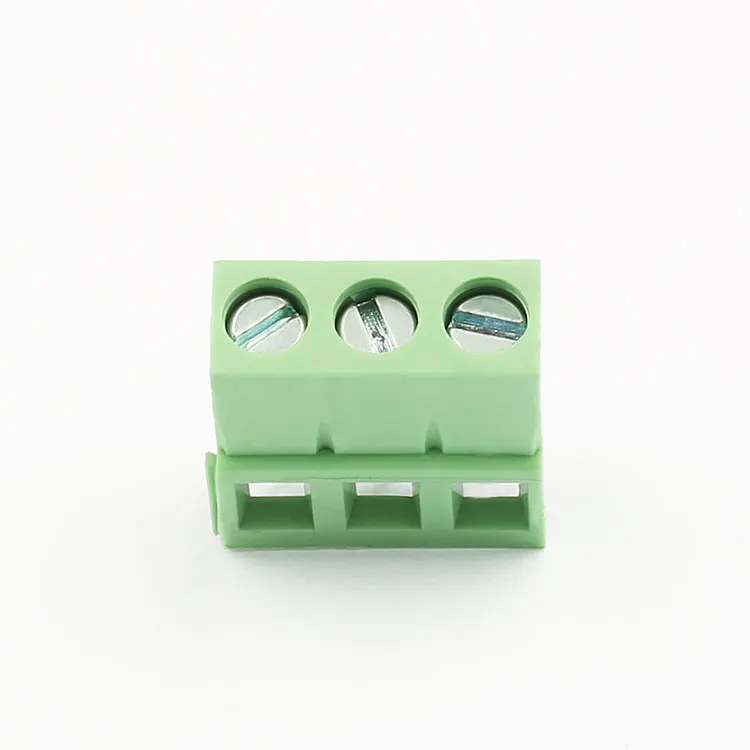

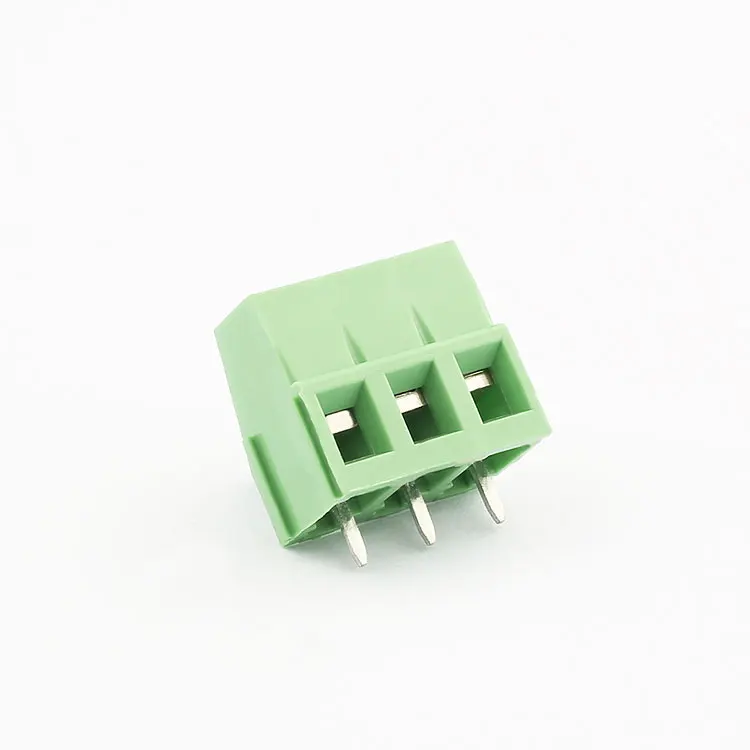

Welcome to our factory direct sale! We are a professional supplier offering high-quality 3.81mm 3-pin green terminal blocks. Our terminal blocks are made with premium materials: the contacts are brass with tin plating, ensuring excellent conductivity, and the housing is PA66, UL94V-0 rated, providing great durability and safety. They can operate in a wide temperature range from -40°C to 150°C, and withstand a short-time temperature of +250°C for 5 seconds. With a rated voltage of 300V and a rated current of 16A, these terminal blocks are perfect for various electrical applications. The contact resistance is as low as 20mΩ, and the insulation resistance is over 5000MΩ at DC500V, guaranteeing reliable performance. Additionally, they can withstand AC2000V/Min. Our terminal blocks are suitable for conductors with sizes ranging from 28-14 and have a strip length of 6-7mm. What sets our products apart is our strict quality control and competitive wholesale prices. We offer excellent after-sales service to ensure your satisfaction. Whether you need a small quantity or a large bulk order, we can meet your needs. Choose us, the reliable factory supplier, for your terminal block requirements!
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green 10 pin connectors |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 16A screw clamp wire connectors |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/Min terminal connectors |
Key Features
Our 3.81mm 3-pin green terminal blocks feature brass contacts with tin plating for superior conductivity and PA66, UL94V-0 housing for durability. They can operate in extreme temperatures and handle high voltages and currents, making them ideal for various electrical applications.
Why Choose Us
As a factory supplier, we offer competitive wholesale prices and strict quality control. Our terminal blocks are reliable, safe, and meet industry standards. We also provide excellent after-sales service to ensure your satisfaction.
Applications
These terminal blocks are widely used in electrical connections, PCB applications, industrial equipment, and power distribution systems. Their versatility and performance make them a popular choice among professionals.
