Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YE440-381-8P
|
|
Type
|
Plug Terminal （Socket）
|
|
Rated voltage
|
300V
|
|
Rated Current
|
12A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Contact
|
Brass,Tin plated
|
|
Poles
|
2~24poles
|
|
Certificate
|
CQC
|

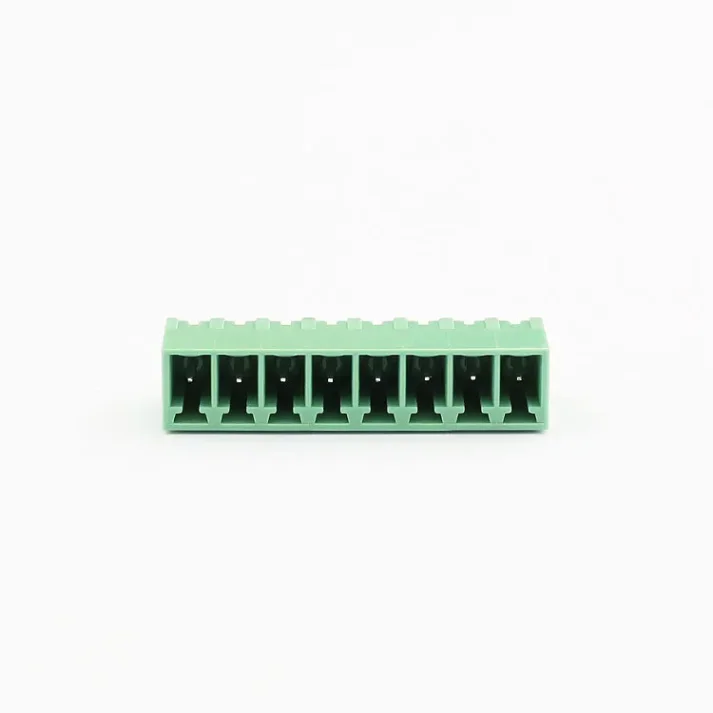

Why Choose Our 3.81mm Pluggable PCB Terminal Block Connector?
Our 3.81mm pluggable PCB terminal block connector stands out for its high quality and reliability. With a rated voltage of 300V and a rated current of 12A, it ensures safe and efficient electrical connections. The brass contacts with a tin-plated finish offer excellent durability and corrosion resistance, making it suitable for various industrial applications.
What Are the Key Features of Our Connector?
Our connector features a low contact resistance of 20mΩ and an insulation resistance greater than 5000MΩ at DC500V, ensuring optimal electrical performance. It can withstand a high voltage of AC2000V/Min and operates efficiently in a wide temperature range from -40℃ to +150℃. Available in 2 to 24 poles, it provides versatility for different projects.
Why Buy from Us as a Factory Supplier?
As a direct factory supplier, we offer wholesale pricing and timely delivery. Our connectors are CQC certified, guaranteeing quality and compliance with industry standards. Choosing us means you get a reliable product at a competitive price, backed by excellent customer service.
