Description
|
Insulation Resistance
|
≥100MΩ DC500V
|
|
Dielectric Strength
|
AC1500V 1 Minute
|
|
Operating Temperature
|
-10~60℃
|
|
Electrical life
|
＞6000
|
|
Color
|
black housing,red button
|
|
Function
|
providing power switching and circuit break
|
|
Lamp voltage
|
220vac 110vac 50vdc 24vdc 12vdc
|
|
Other color
|
red,yellow,green,black,blue,orange,white,gray
|

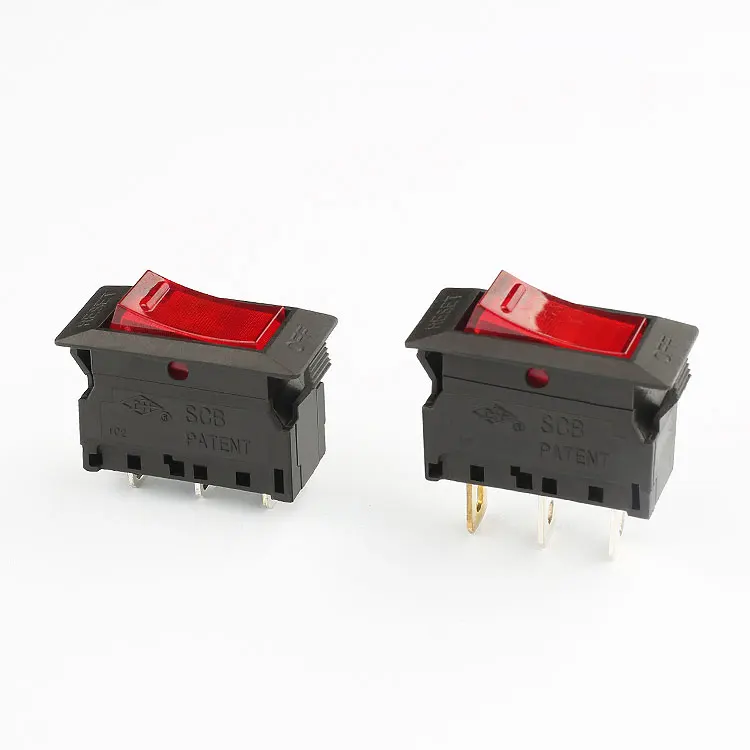

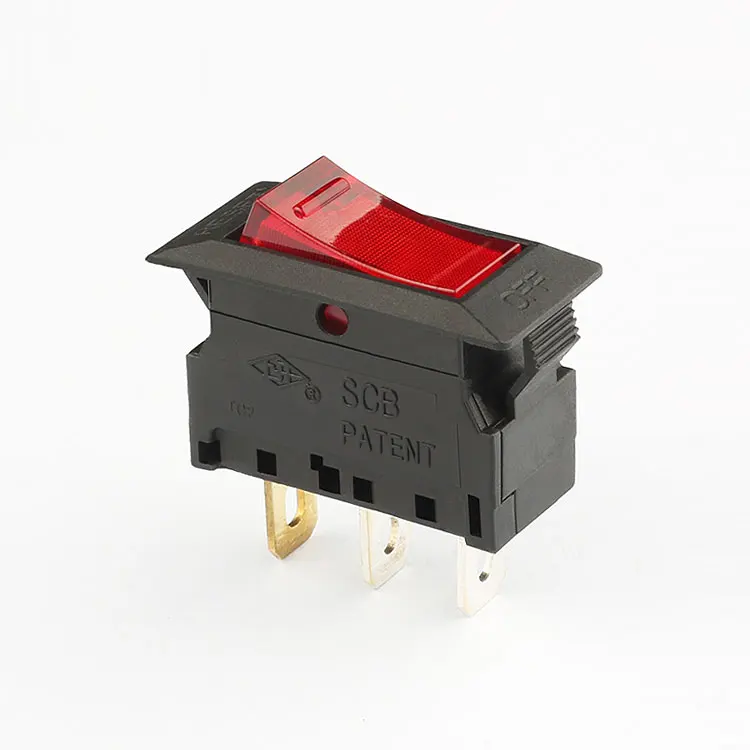

Why Choose Our 3 Pin LED Rocker Switch Circuit Breaker?
Our 3 Pin LED Rocker Switch Circuit Breaker stands out for its durability, versatility, and ease of use. With a maximum current of 15A and support for multiple voltages, it's suitable for a wide range of applications, from household appliances to industrial machinery. The LED illumination feature ensures easy visibility in low-light conditions, while the robust design guarantees long-lasting performance.
What Are the Key Features of This Product?
Key features include a black housing with a red button for easy operation, an insulation resistance of ≥100MΩ DC500V, and dielectric strength of AC1500V for 1 minute. It also offers an operating temperature range of -10℃ to 60℃ and an electrical life of >6000 cycles. Additionally, it supports various lamp voltages and is available in multiple colors.
How Can I Benefit from Buying Wholesale?
As a factory supplier, we offer competitive pricing on wholesale purchases, allowing you to save money while ensuring a steady supply of high-quality circuit breakers. Our excellent customer service and reliable shipping make us your ideal partner for all your electrical component needs.
