Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1B-B-B-01/UL
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST 2 Pin On Off Rocker Switch
|
|
Dimension Code
|
B1, 19.5x13mm mounting hole size
|
|
Contact Piece Code
|
B, 4.8×0.8x8mm
|
|
Lamp voltage
|
No lamp
|
|
Function
|
On-Off SPST rocker switch
|

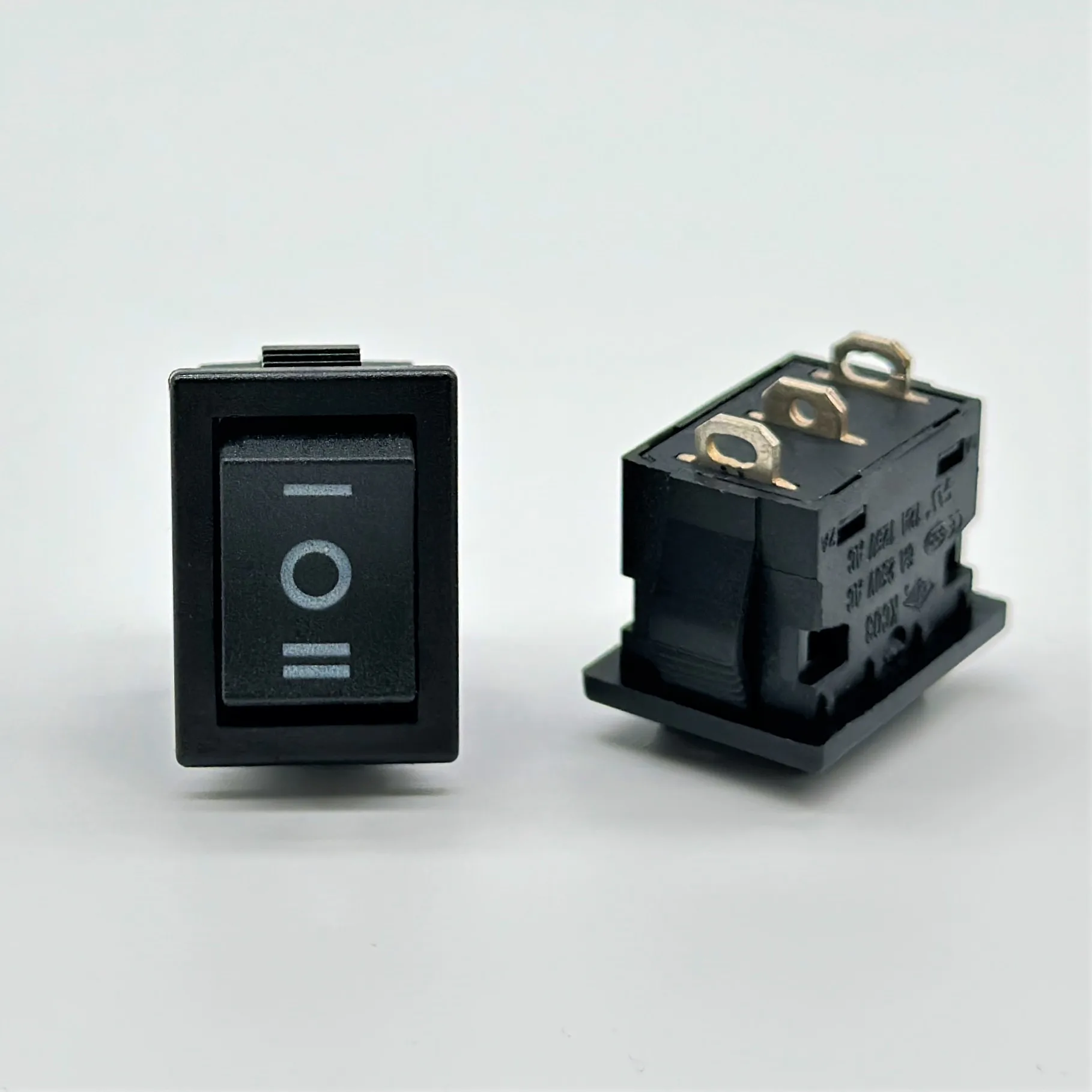

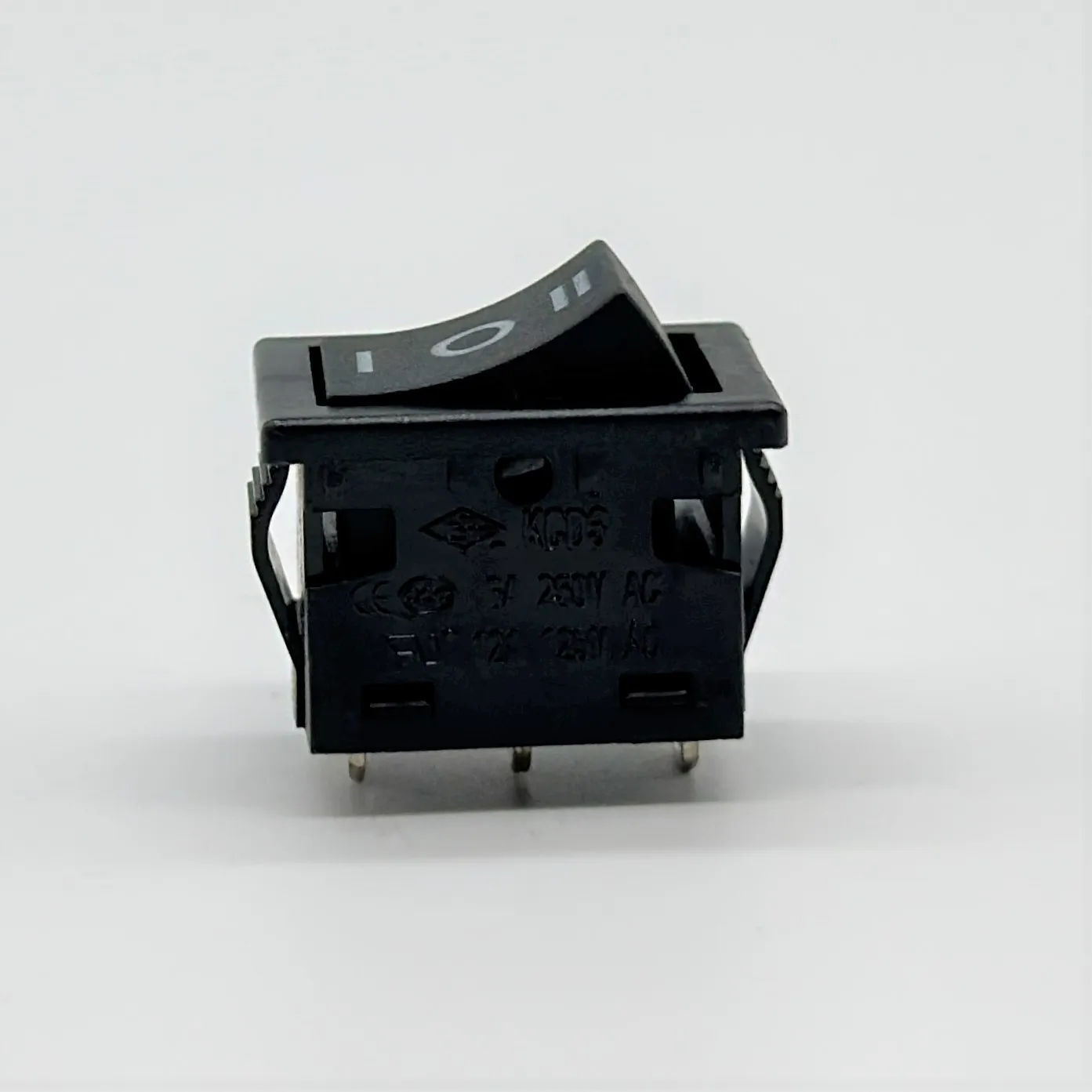

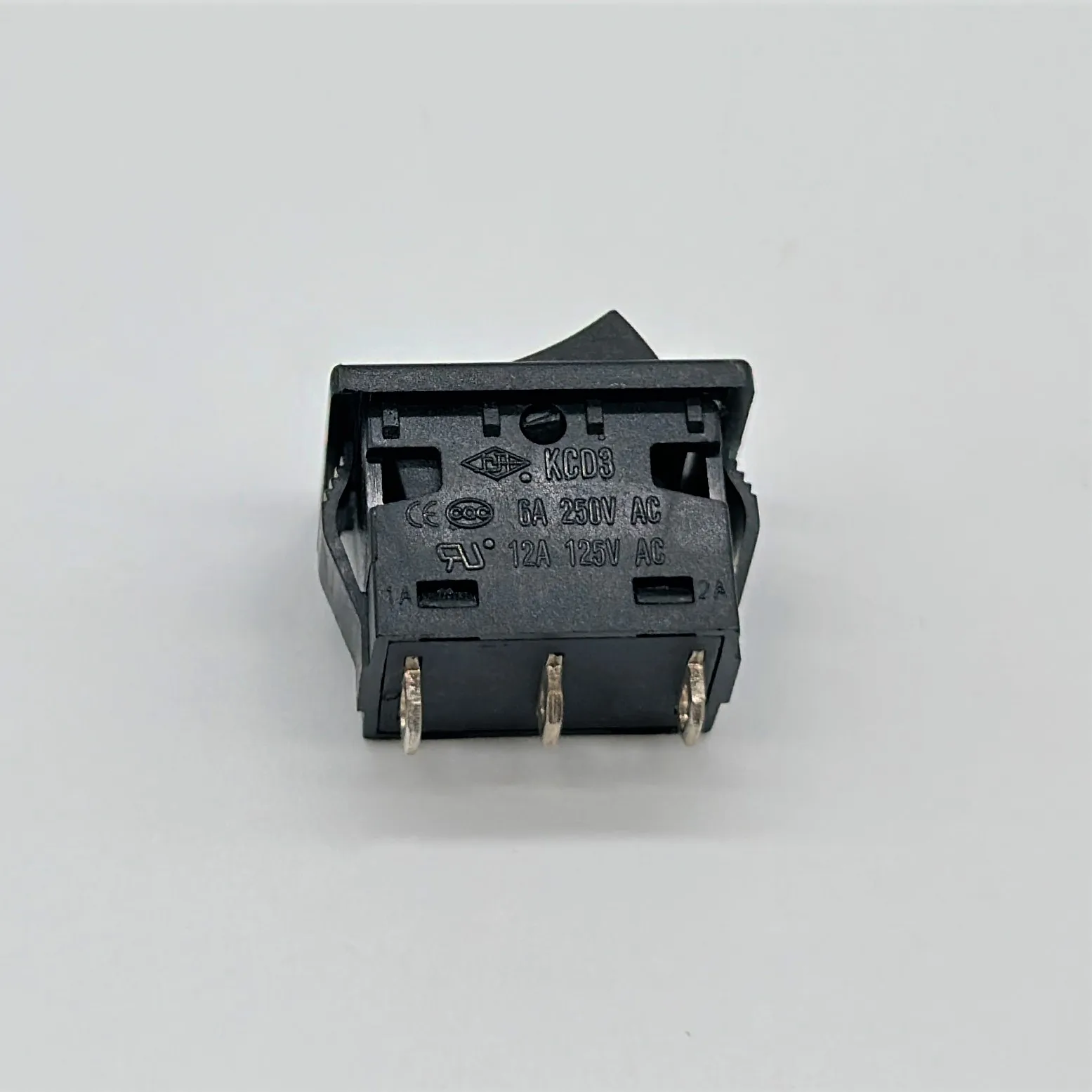

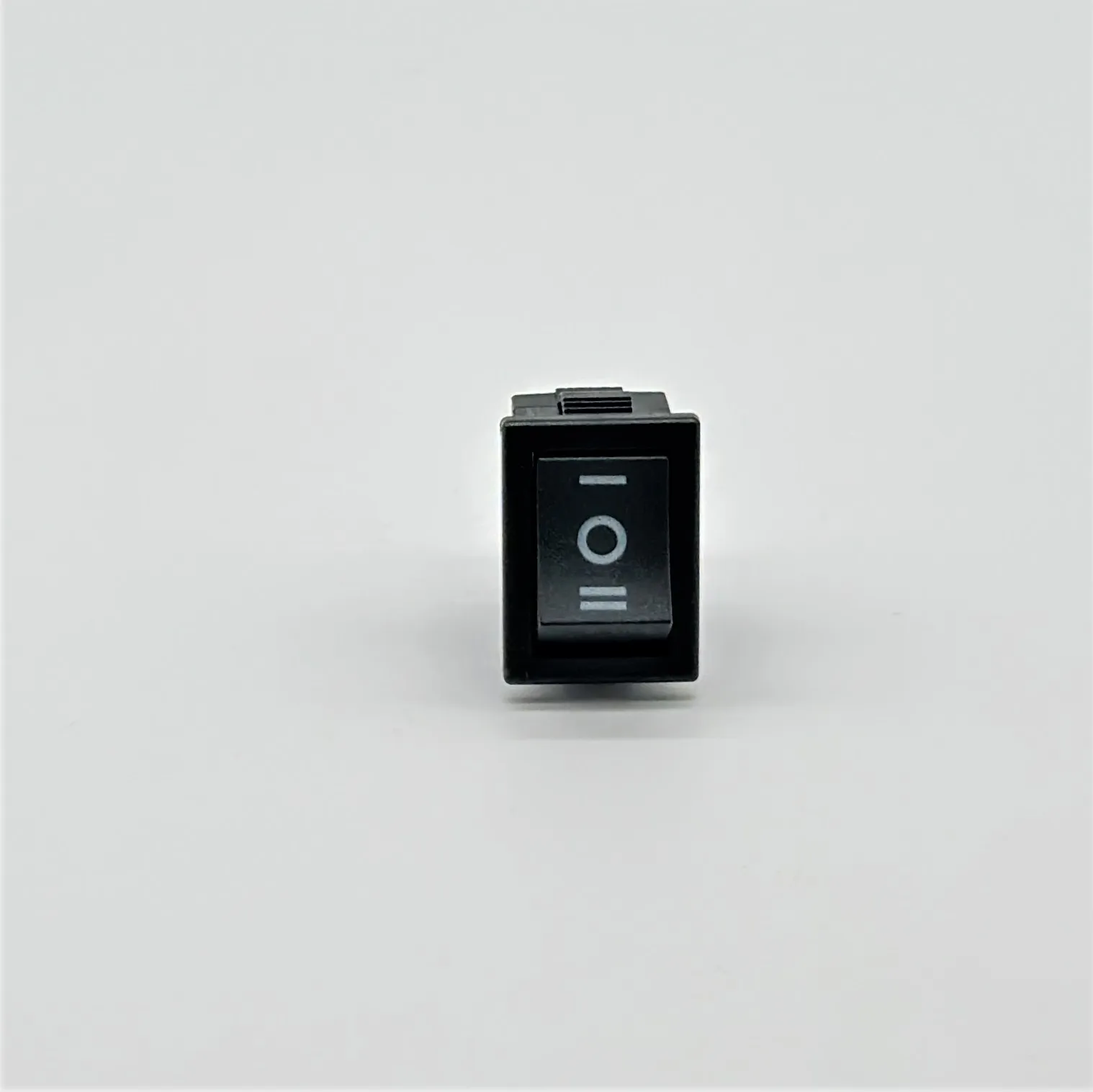

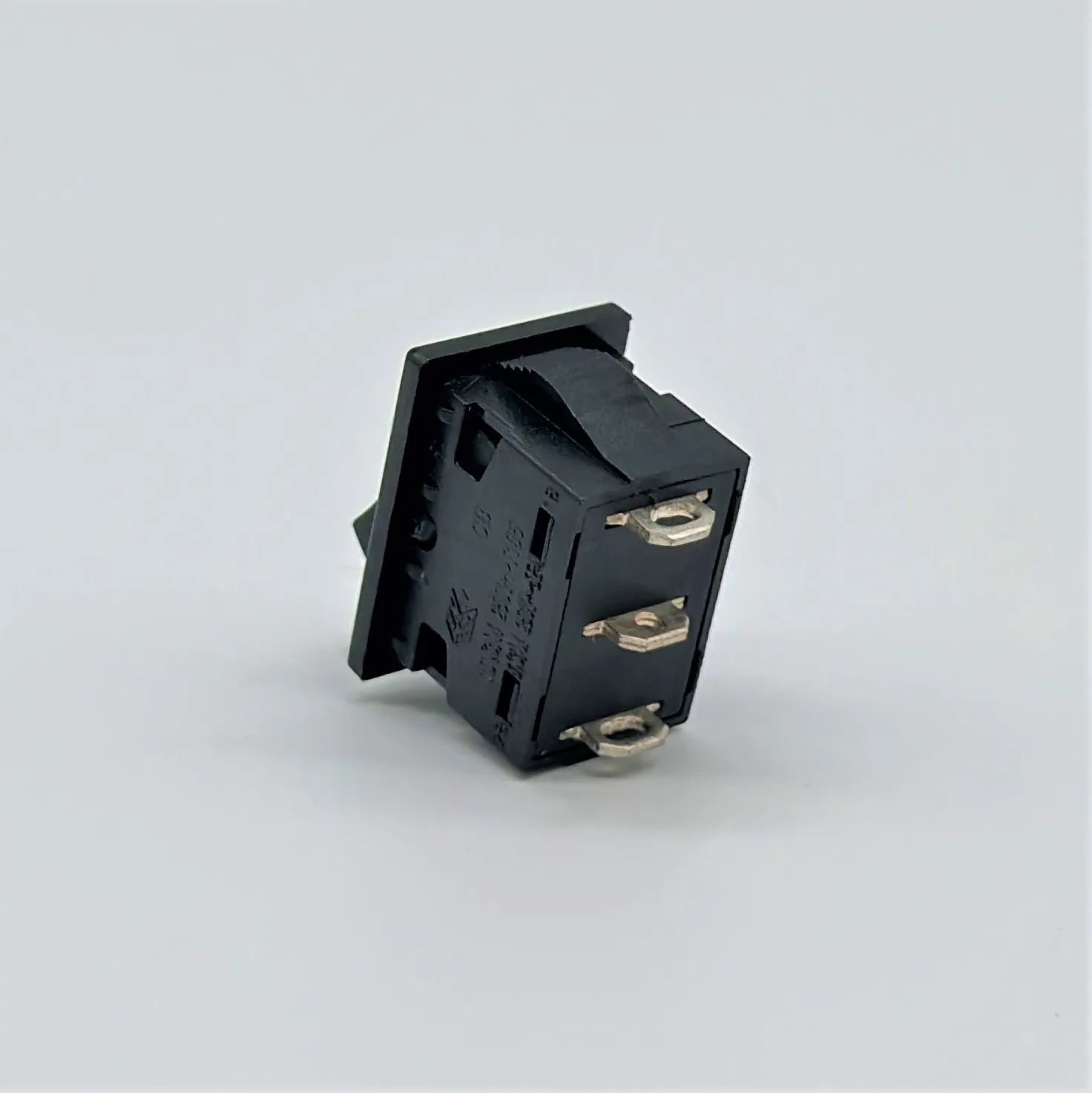

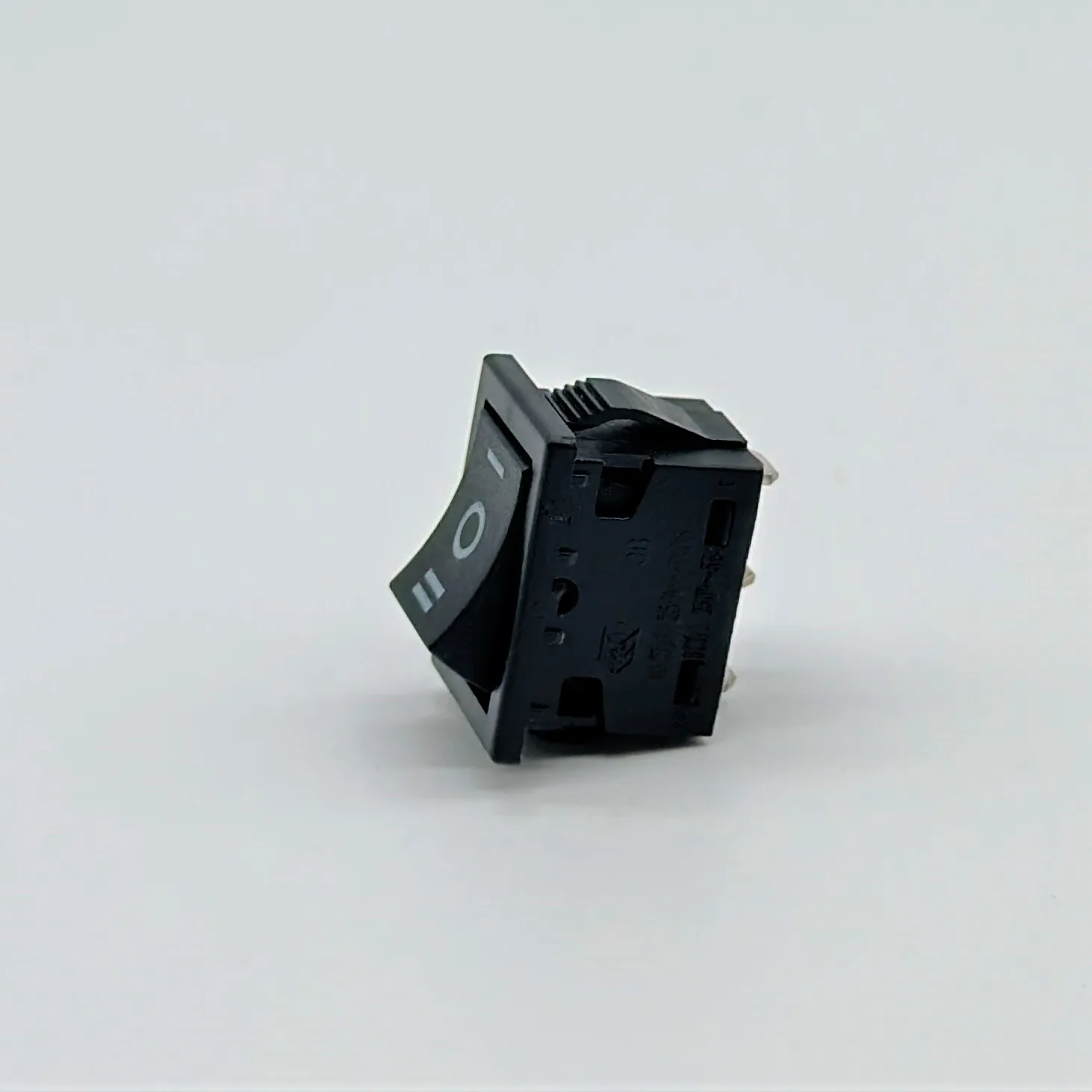

Why Choose Our 3-Pin SPDT Rocker Switch?
Our 3-Pin SPDT Rocker Switch stands out for its durability, reliability, and versatility. With a max current of 6A and a max voltage of 250V AC, it's perfect for demanding applications in cars and industrial settings. The switch's IP65 rating ensures waterproof performance, making it ideal for use in harsh environments.
What Makes Our Switch Different?
Unlike other switches on the market, our product offers a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. Additionally, it meets multiple certifications, including CQC, CE, UL, CB, ENEC17, and ROHS, guaranteeing safety and compliance. The compact size and easy installation make it a favorite among customers.
How Can You Benefit from Buying Wholesale?
As a direct supplier, we offer wholesale pricing on our 3-Pin SPDT Rocker Switch. This means you can save money while getting high-quality products. Whether you're a distributor, retailer, or end-user, buying wholesale from our factory ensures you get the best value for your money. Plus, our reliable shipping and excellent customer service make the purchasing process smooth and hassle-free.
