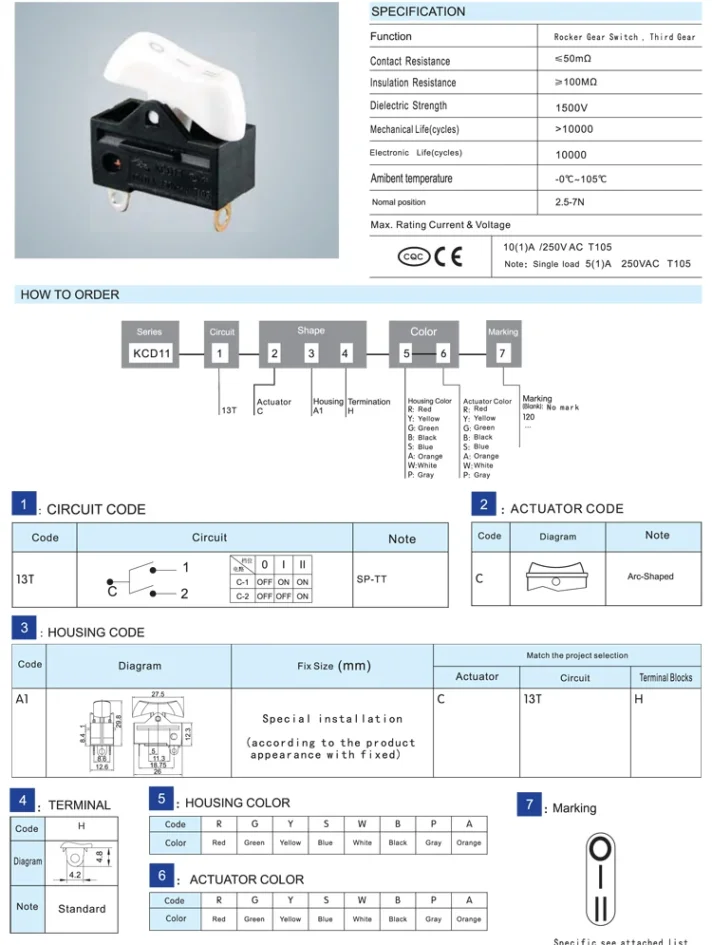

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD11-13T-CA1H-B-W-120
|
|
Current Rating
|
10A (single load:5A)
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPTT
|
|
Dimension Code
|
A1
|
|
Contact Piece Code
|
H
|
Key Features and Advantages

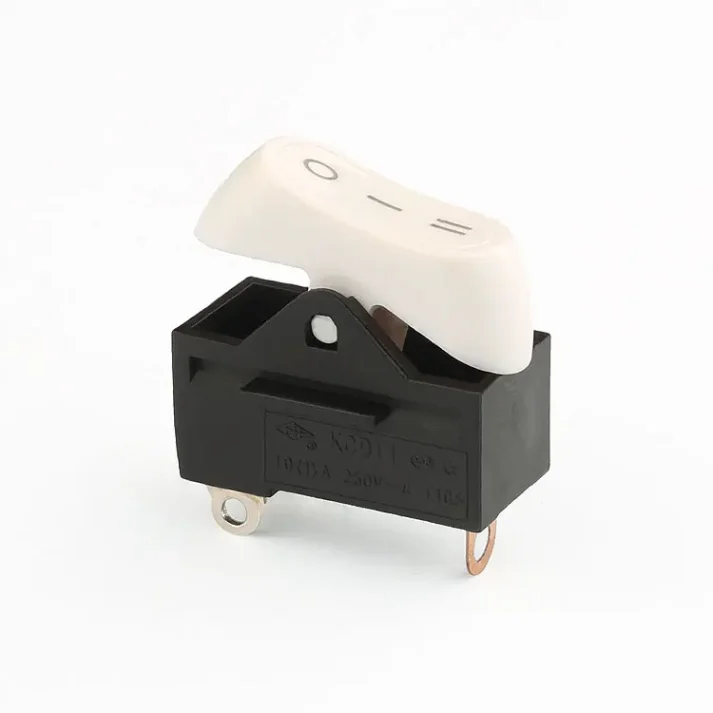

Our 3-pin SPTT rocker switch stands out with its robust design, offering a current rating of 10A and a voltage rating of 250V AC, making it suitable for a wide range of electrical applications. The switch's mechanical life of 50,000 cycles and electronic life of 10,000 cycles ensure reliability and longevity, reducing the need for frequent replacements. With CQC, CE, and ROHS certifications, it meets strict safety standards, providing peace of mind to users.
Versatile Applications

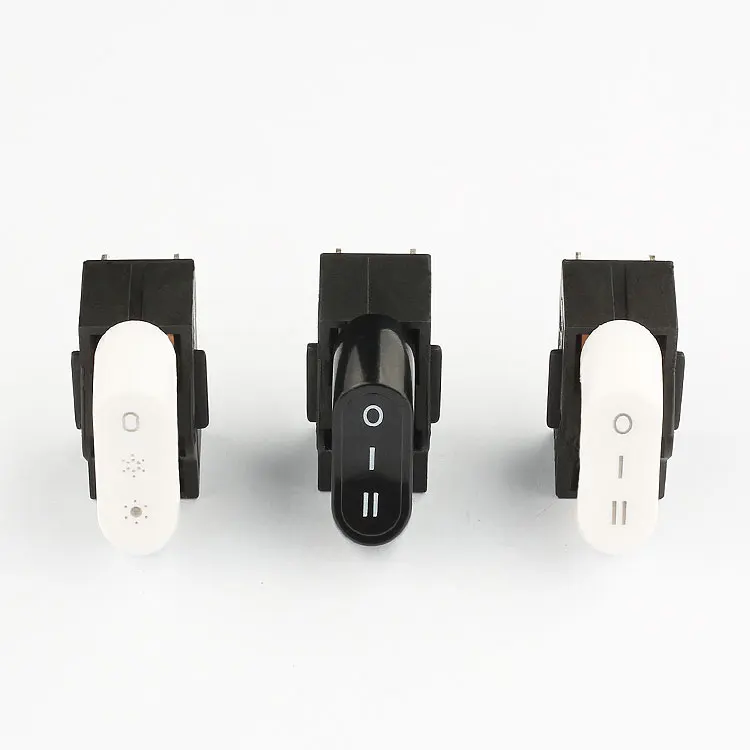

This rocker switch is ideal for use in boats, hair dryers, electrical panels, and various home appliances. Its multiple color options allow for customization to match different design aesthetics, while its wide operating temperature range (0°C to 105°C) makes it suitable for diverse environments. Whether you're a manufacturer or a DIY enthusiast, this switch offers the flexibility and performance you need.
Why Choose Our Factory-Direct Switch?
As a direct supplier and wholesaler, we offer competitive pricing without compromising on quality. Our factory-made rocker switches undergo rigorous testing to ensure they meet the highest standards. With excellent customer service and fast shipping, we make it easy for you to get the products you need when you need them. Choose our switch for superior quality, value, and reliability.
