Description
Key Specifications:
– Max. Current: 3A
– Max. Voltage: 250V AC

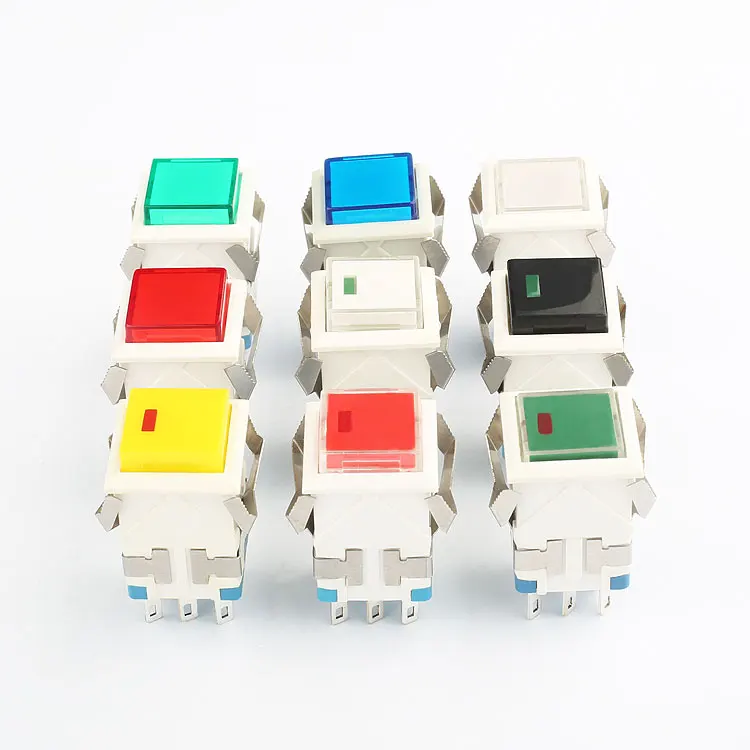

– LED Options: Available with LED indicators in various colors including red, green, yellow, white, blue, and orange
– Voltage of LED: 2V, 6V, 12V, 24V, 110V, 220V
– IP Level: IP40 for protection against dust and water splashes
– Switch Combination: 1NO1NC, 2NO2NC configurations available
– Certifications: CQC, CE compliant
– Operating Temperature: -25℃ to +55℃ (-13℉ to 131℉)
– Mechanical Life: Up to 50,000 cycles
– Electric Life: 10,000 cycles
– Size: 17mm compact design
Advantages:
– Factory direct pricing ensures cost-effectiveness
– High-quality materials guarantee long-lasting performance
– Customizable options to meet specific application needs
– Reliable self-latching mechanism for consistent operation
– LED indicators enhance visibility and user experience
After-Sales Service:
– We offer comprehensive after-sales support, including technical assistance and warranty services.
– As a trusted supplier, we ensure timely delivery and excellent customer service.
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|
Why Choose Our 3A 250V LED Square Self-Latching Push Button Switch?
Our switch stands out due to its high-quality construction, ensuring durability and long-lasting performance. The self-latching mechanism guarantees consistent operation, while the LED indicators enhance visibility, making it ideal for industrial control and automation systems.
Customizable Options to Meet Your Needs
We understand that different applications require different specifications. That's why we offer customizable options, including various LED colors and switch combinations, to ensure our switch meets your exact requirements.
Factory Direct Pricing and Excellent Service
As a factory supplier, we offer competitive pricing without compromising on quality. Our team is dedicated to providing excellent customer service, from technical assistance to timely delivery, ensuring a seamless purchasing experience.
