Factory Wholesale 3A 250V Self-locking LED Push Button Switch Supplier

200 - 1,999  pieces
$0.74

2,000 - 4,999  pieces
$0.69

>= 5,000  pieces
$0.63

0 reviews

Factory Wholesale LED Push Button Switch Supplier, 3A 250V Self-locking.

Description

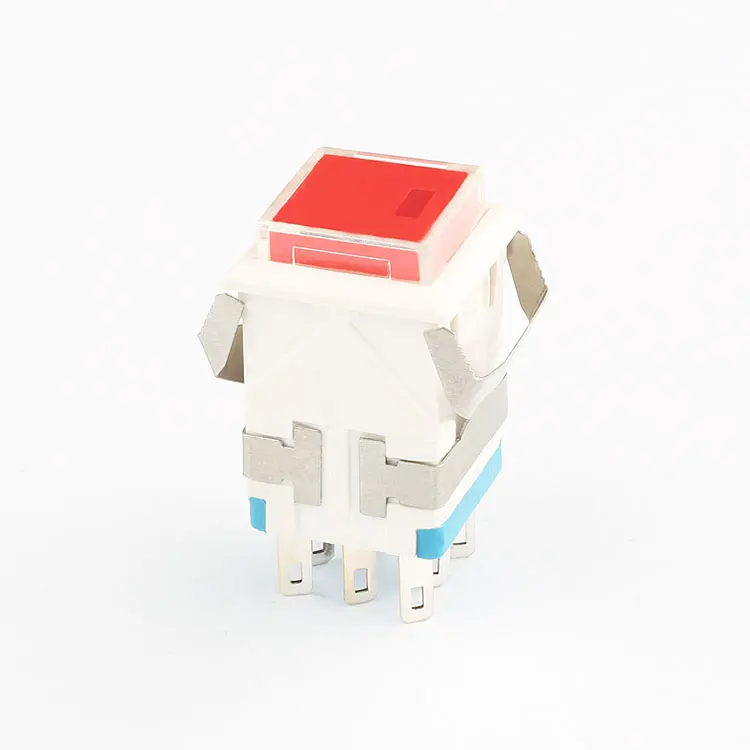

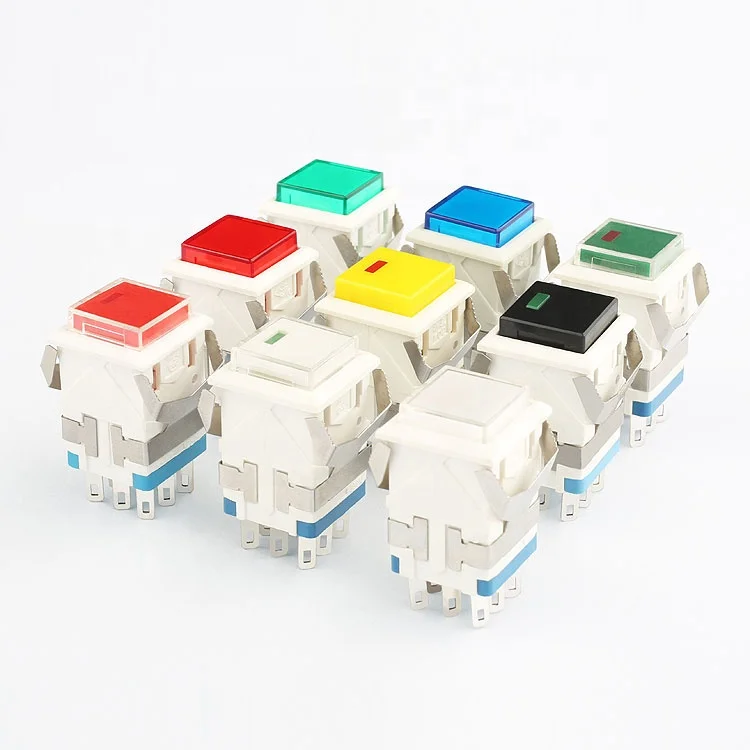

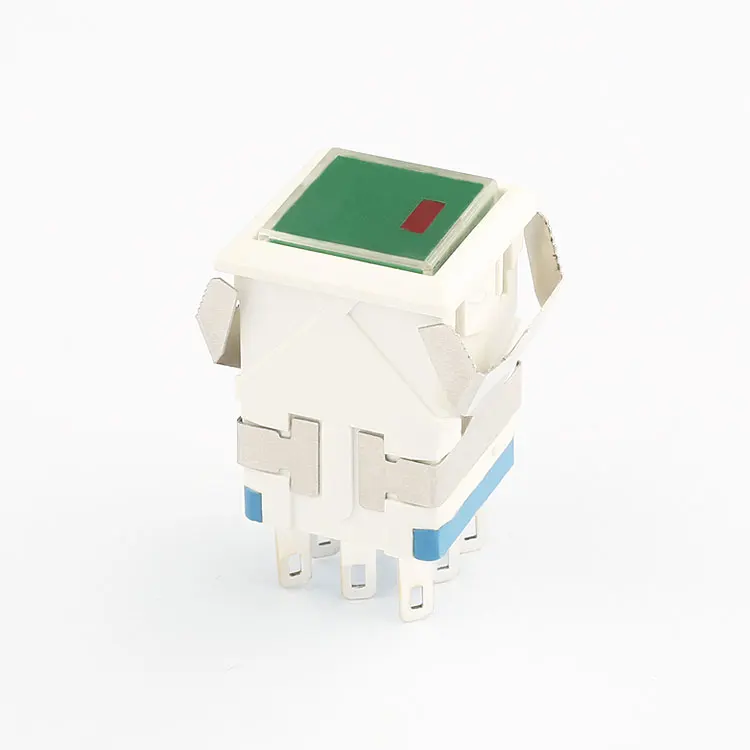

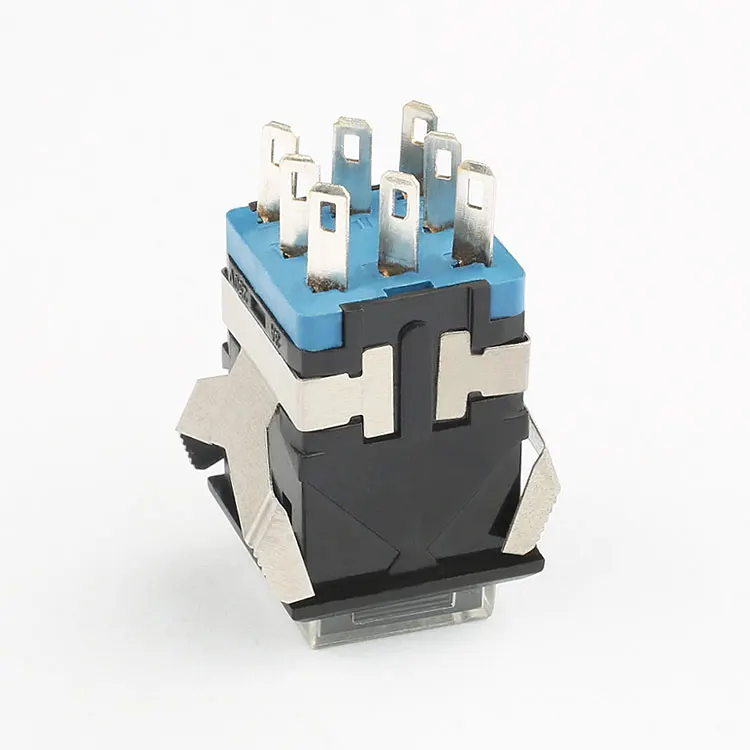

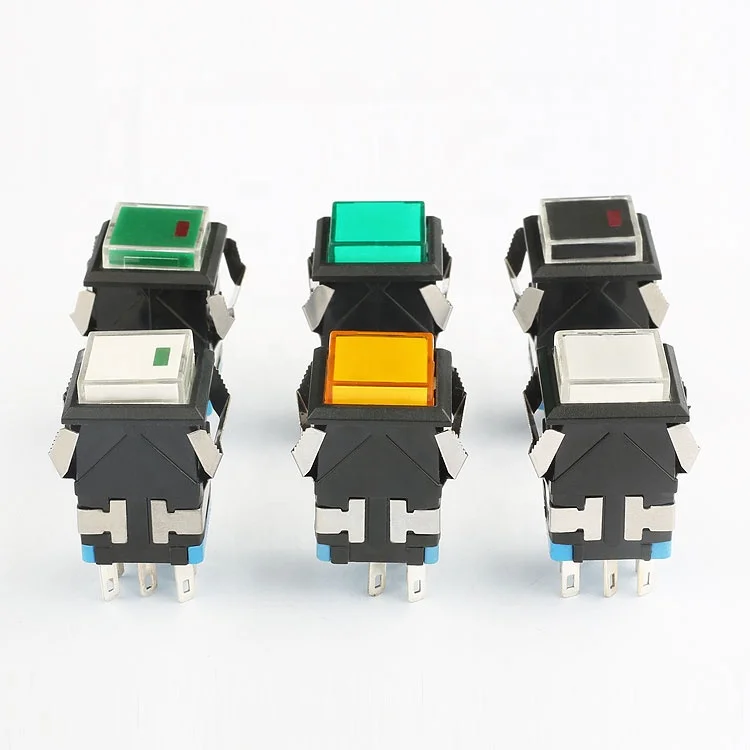

Introducing our high-quality 3A 250V Self-locking LED Push Button Switch, available for wholesale directly from our factory. As a trusted supplier, we ensure every switch meets stringent quality standards. This switch features a 17mm square design with an illuminated LED, available in red, yellow, green, white, and blue colors. It boasts a double pole function and 1NO1NC or 2NO2NC switch combinations, making it versatile for various applications. With a max. rating of 3A 250V AC, it’s perfect for industrial and commercial use. Our switch offers excellent contact resistance (≤50MΩ), insulation resistance (≥100MΩ), and dielectric strength (1500V), ensuring safety and reliability. The IP40 protection level provides dust resistance, and it operates efficiently within a temperature range of 25°C to 55°C. Choose our factory-direct switches for competitive pricing, superior quality, and reliable after-sales service.
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥100MΩ
mechanical life(cycles)
50000
dielectric strength
1500V
operating temperature
25T55
IP code
IP40
max.rating current & voltage
3A 250V AC

Electronic component for cross-border e-commerce


Why Choose Our LED Push Button Switch?

Our LED Push Button Switch stands out with its self-locking mechanism, ensuring stable operation. The illuminated LED provides clear visual indication, enhancing safety and efficiency. With a double pole function and various switch combinations, it's highly versatile for different applications.

Factory Direct Wholesale Advantages

As a factory supplier, we offer competitive pricing and direct access to our high-quality products. Our switches undergo rigorous testing to ensure reliability and performance, providing you with peace of mind.

Reliable After-Sales Service

We stand behind our products with reliable after-sales service. If you encounter any issues, our dedicated support team is ready to assist you, ensuring your satisfaction and continued trust in our brand.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

KD2-A21L

LED

Yes

Whether the smart

NO

IP level

IP40

Switch Combination

1NO1NC, 2NO2NC

Name

Shanghai Yongxing KD2

Color

White/green

Certificate

CQC,CE

Operation type

Self-locking

Function

Double pole

LED color

Red.yellow.green.white.blue

Contact Resistance

50m Max

Insulation Resistance

100M Min

Dielectric Strength

1500V

Protection Level

IP40
