Factory Wholesale 3A 250V Waterproof Push Button Switch with Illumination

Category: Tags: , , , ,
>= 500  pieces
$0.39
0 reviews

Factory Wholesale 3A 250V Waterproof Push Button Switch – High Quality, Durable, IP65 Rated.

Clean All

Description

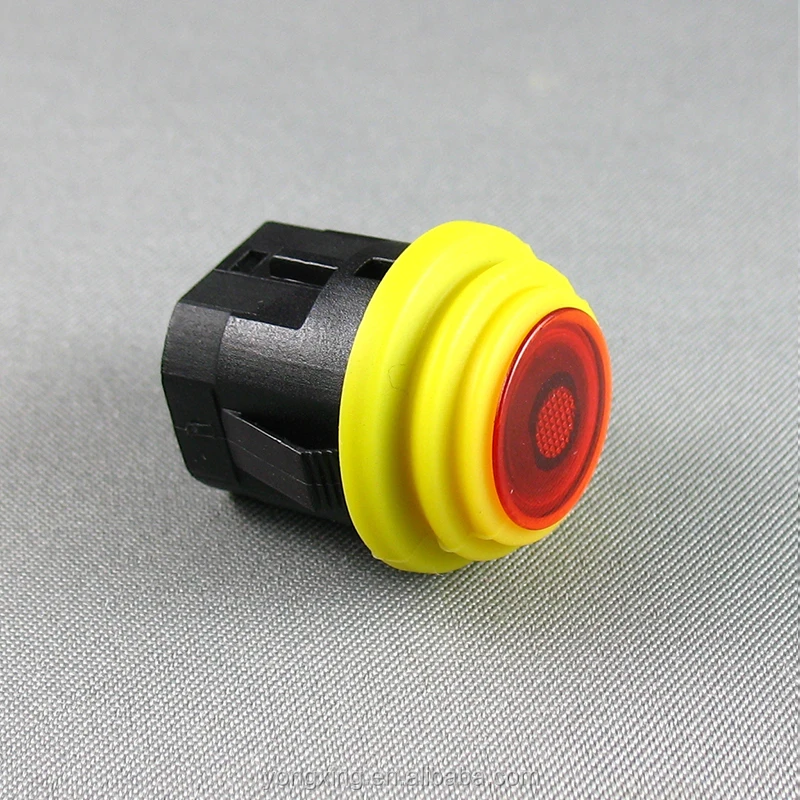

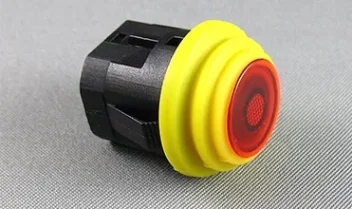

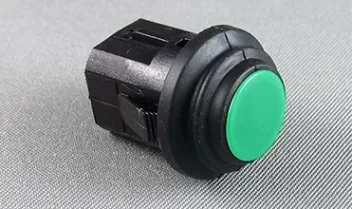

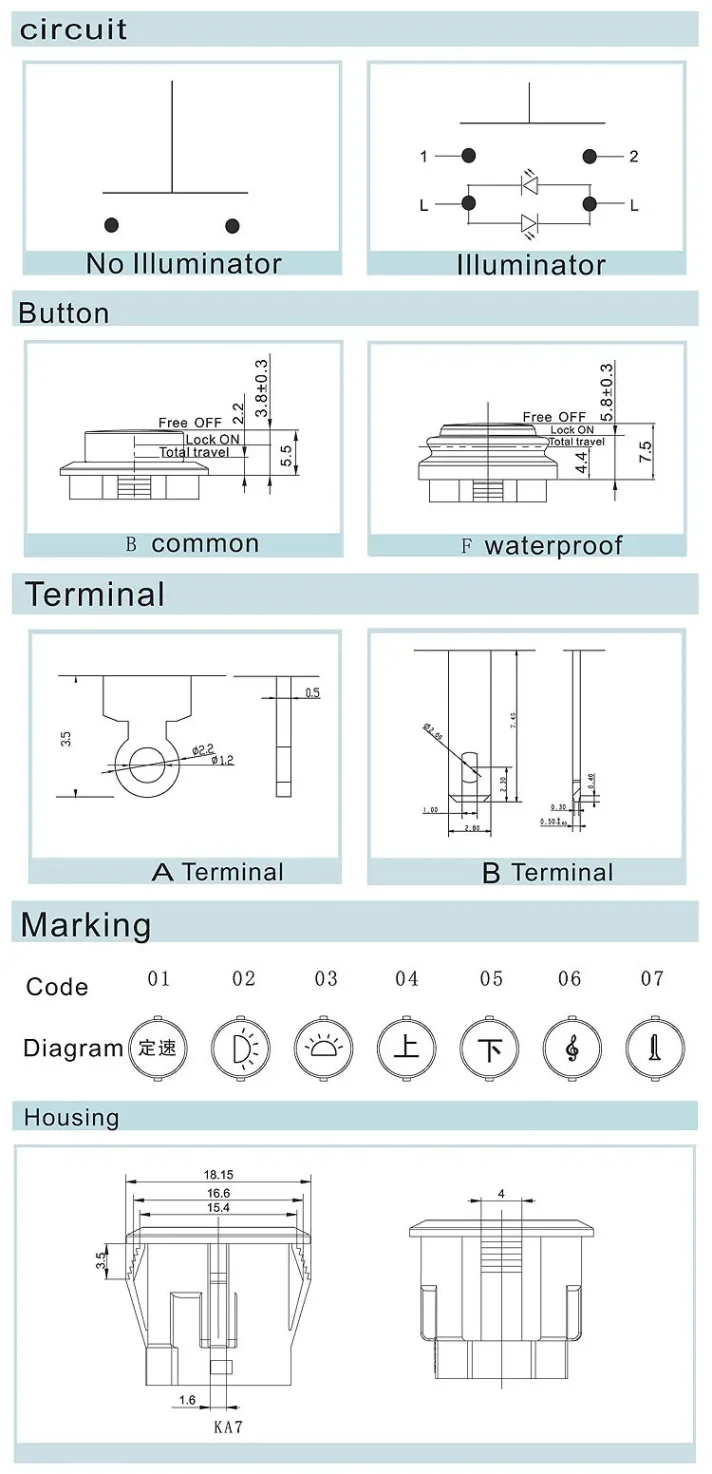

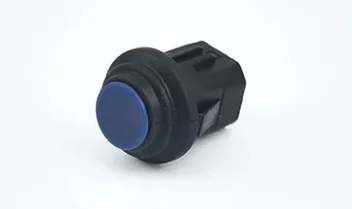

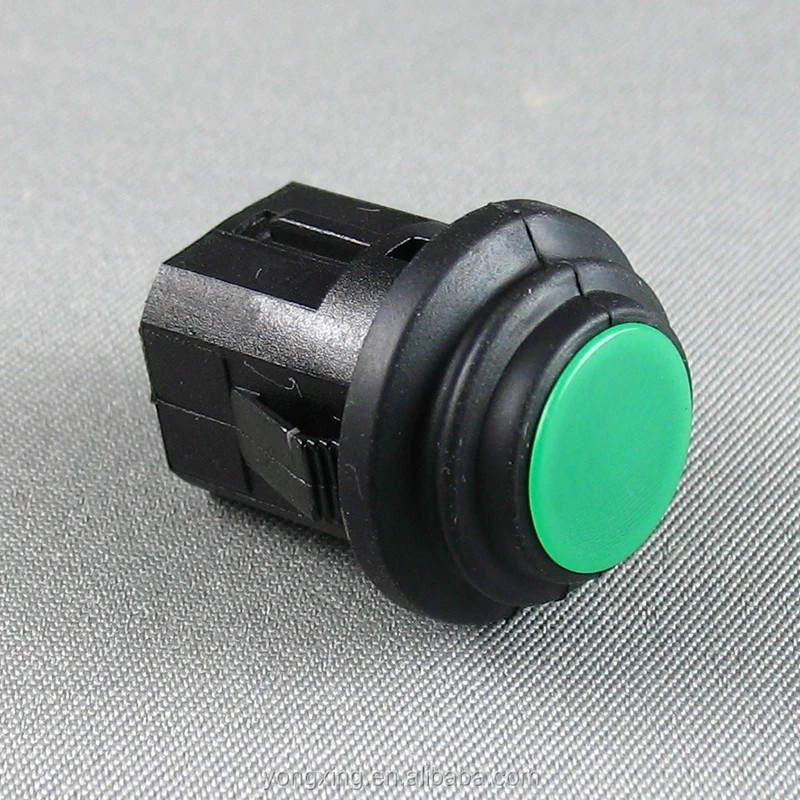

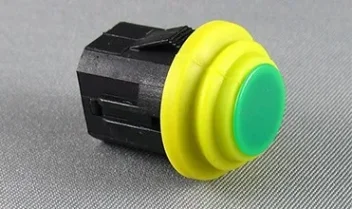

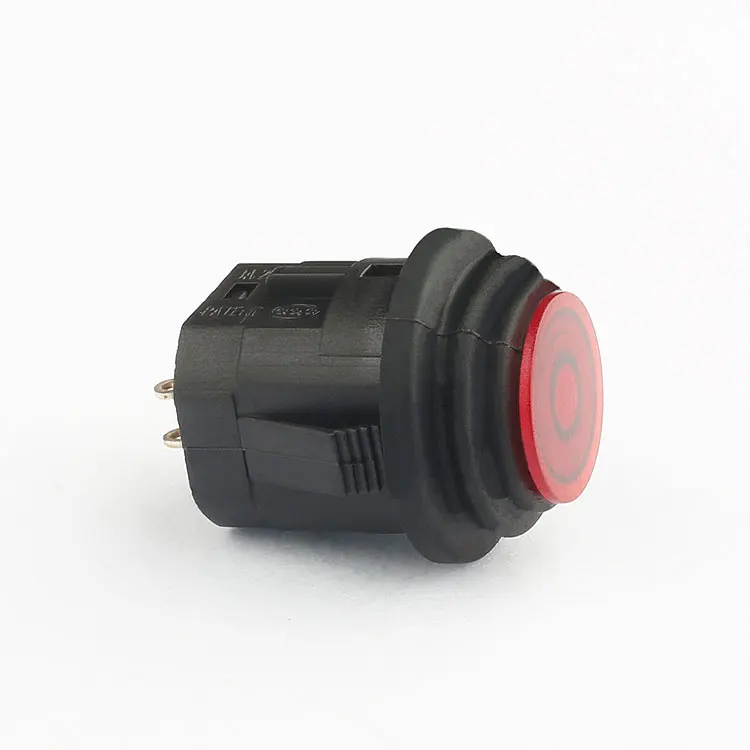

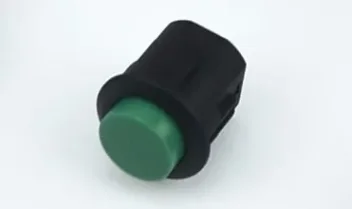

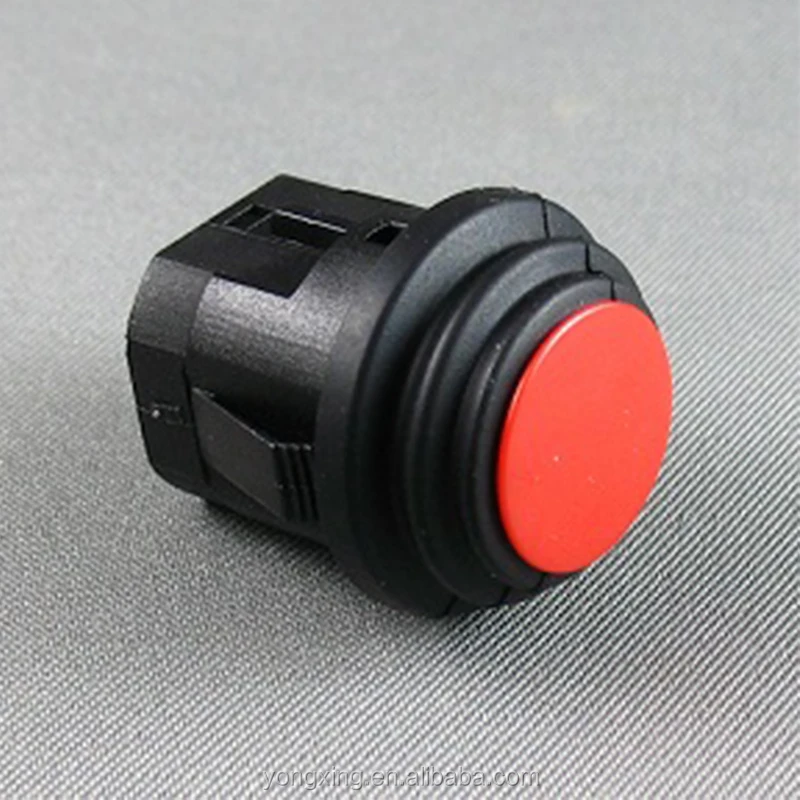

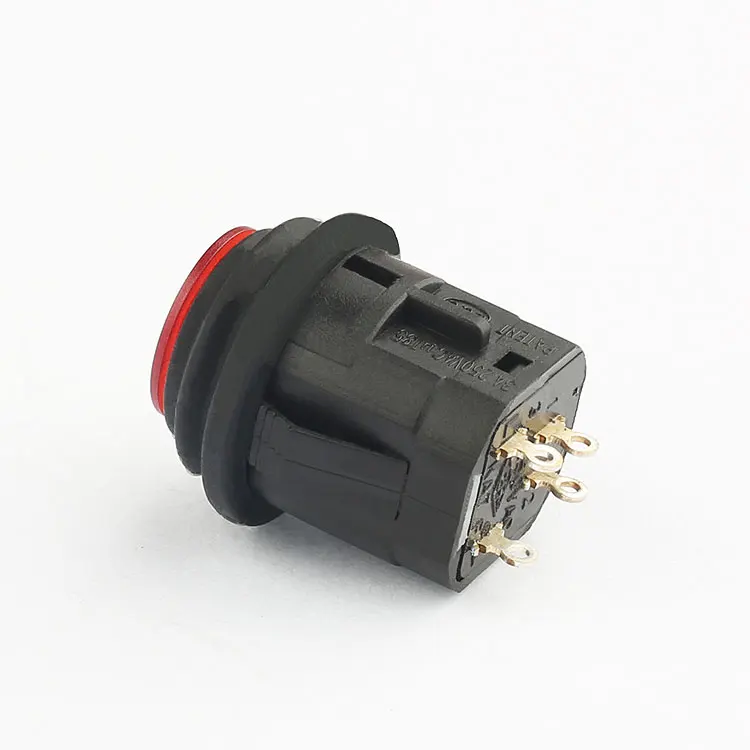

Introducing our high-quality KA7 Waterproof Push Button Switch, directly supplied by our factory in Shanghai, China. This switch is designed for durability and performance, featuring a maximum current of 3A and a maximum voltage of 250V. It comes with an optional illuminator, available in both waterproof and common types, with a wide range of waterproof ring colors including red, yellow, green, black, blue, orange, white, and gray. Our switch is IP65 rated, ensuring excellent protection against dust and water, making it ideal for various industrial and outdoor applications. With a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, it guarantees long-lasting reliability. The switch also boasts a dielectric strength of 1500V and a contact resistance of ≤50mΩ, ensuring safe and efficient operation. We offer both wholesale and retail options, with competitive prices and excellent after-sales service. Choose our factory-direct supplier for the best value and quality.

Electronic component product displayElectronic device product pictureElectronic gadget product imageElectronic product photoElectronic item imageElectronic product visualElectronic device snapshot


Why Choose Our Waterproof Push Button Switch?

Our KA7 Waterproof Push Button Switch stands out with its IP65 rating, ensuring superior protection against dust and water ingress. This makes it ideal for use in harsh environments where durability and reliability are crucial. The switch's high mechanical and electrical life cycles guarantee long-term performance, reducing maintenance costs and downtime.

What Are the Key Features?

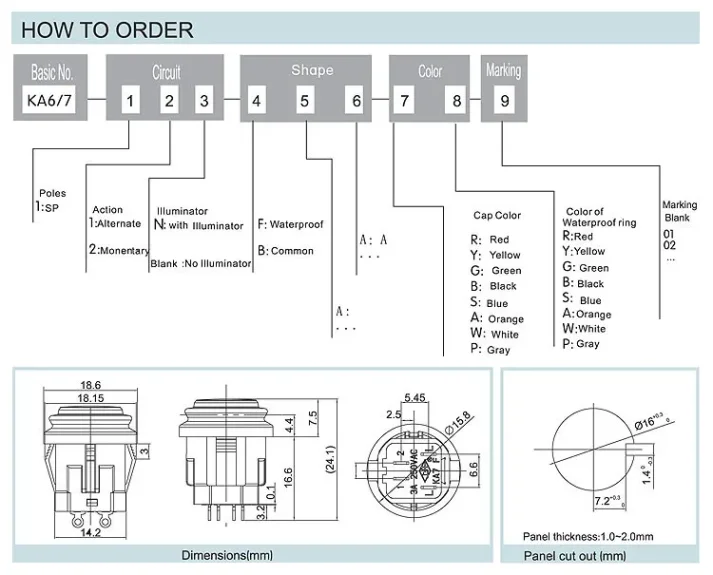

The switch features a maximum current of 3A and a maximum voltage of 250V, making it suitable for a wide range of applications. It comes with an optional illuminator, available in multiple colors, enhancing visibility and usability in low-light conditions. The switch's compact 16mm panel cutout size allows for easy installation in tight spaces.

How Does It Benefit Your Business?

As a factory-direct supplier, we offer competitive wholesale prices and excellent after-sales service. Our switch's high quality and durability ensure customer satisfaction, reducing returns and complaints. Choose our Waterproof Push Button Switch for reliable performance, cost savings, and peace of mind.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A
Max. Voltage

250V
Place of Origin

Shanghai, China
Brand Name

SK(Shangkai)
Model Number

KA7
LED

Other
Whether the smart

NO
Switch Combination

1NO
Dielectric Strength

1500V
Mechanical Life

50,000
Contact Resistance

≤50mΩ
Panel cutout

16mm
Insulation Resistance

≥100mΩ
Electronic life

10000
Operating temperature

-25℃~+85℃
Certification

CQC CE ROHS
Protection Level

IP65
