Description
**Product Specifications**:
– Max. Current: 3A
– Max. Voltage: 250VAC

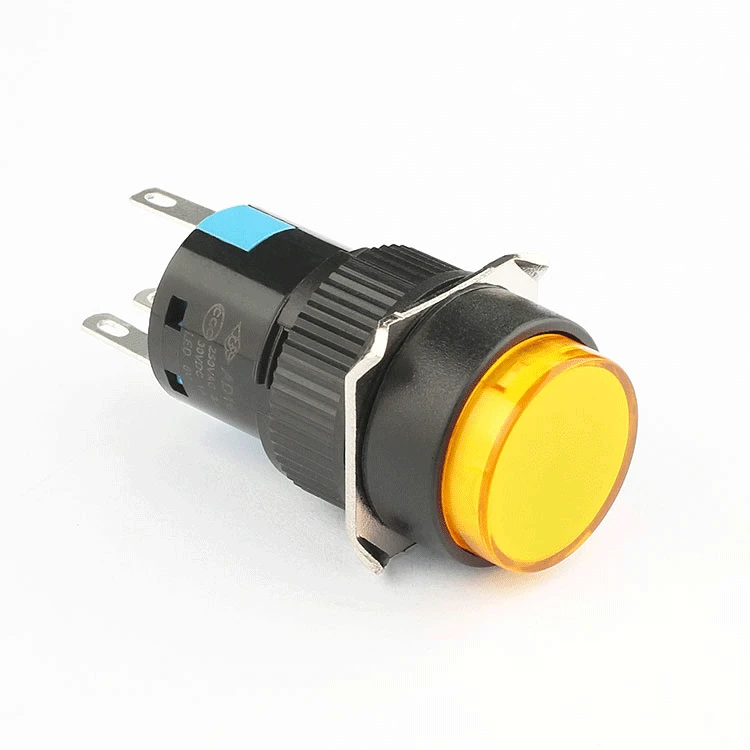

– Color: Red (LED color also available in Yellow)
– Operation Type: Self-locking
– Material: Plastic
– Switch Combination: 1NO1NC, 2NO2NC
– Mechanical Life: Momentary 200,000 cycles, Alternate 50,000 cycles
– Electrical Life: Momentary 50,000 cycles, Alternate 25,000 cycles
– Contact Resistance: ≤50mΩ
– Insulation Resistance: ≥100MΩ
– Dielectric Strength: 1500V
– Operating Temperature: -5°C to +75°C
– Certifications: CQC, CE
– Protection Level: IP40
**Advantages**:
– Customizable to meet your specific requirements with large quantities.
– Independent plant, injection molding workshop, and advanced experimental equipment ensure top-notch quality.
– Over 60 senior engineers and 5S management in all workshops guarantee efficient production.
– Competitive pricing due to direct factory sales.
**After-Sales Service**:
– We provide comprehensive after-sales support to ensure your satisfaction.
– Quick response to any inquiries or issues.
Choose our factory wholesale push button switches for reliability, durability, and great value!
|
max.rating cnrrent&voltage
|
3a 250vac
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>100mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
mechanical life
|
momentary 200000,alternate 50000
|
||
|
electronic life
|
momentary 50000,alternate 25000
|
||
|
operating temperature
|
-5℃ to +75℃
|
||
|
CQC,CE
|

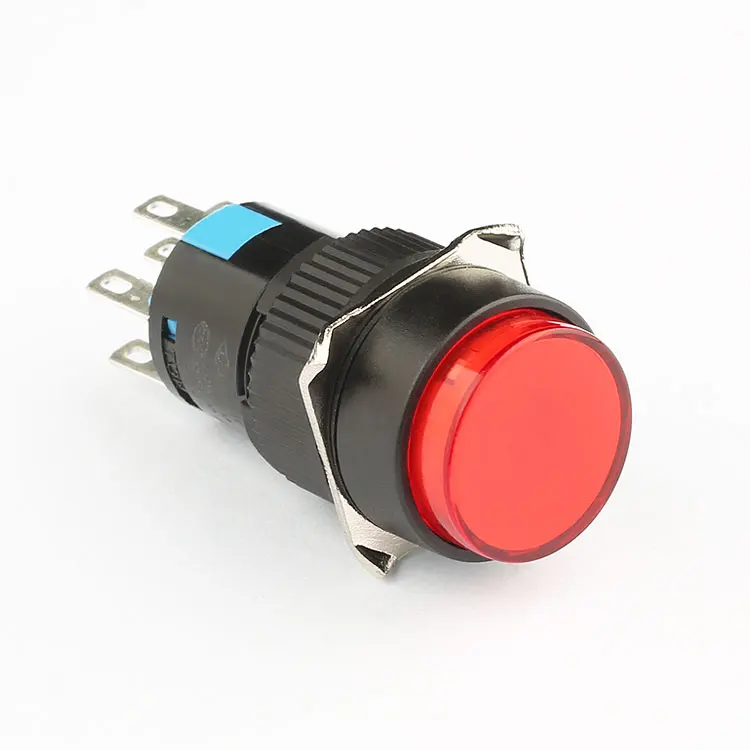

Why Choose Our 3A 250VAC 16mm Red Push Button Switch?
Our push button switch is designed for reliability and durability, making it ideal for industrial control, home appliances, and electrical equipment. With a self-locking operation type and customizable options, it meets a wide range of application needs.
What Makes Our Switch Stand Out?
As a factory direct supplier, we offer competitive pricing without compromising on quality. Our switches undergo rigorous testing to ensure they meet the highest standards. Plus, with over 60 senior engineers and advanced equipment, we can quickly respond to your customization requests.
How Does Our After-Sales Service Support You?
We are committed to providing excellent after-sales service. Whether you have questions about installation, need technical support, or encounter any issues, our team is here to help. Choose us for a hassle-free purchasing experience.
