Factory Wholesale 4 Pin Waterproof Momentary Rocker Switch Supplier

200 - 1,999  pieces
$0.72

2,000 - 4,999  pieces
$0.66

>= 5,000  pieces
$0.59

0 reviews

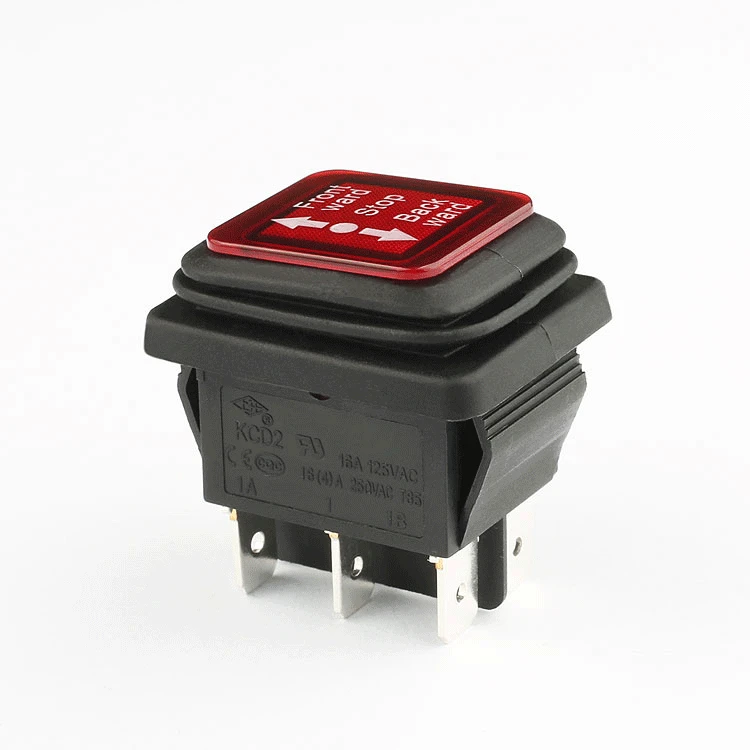

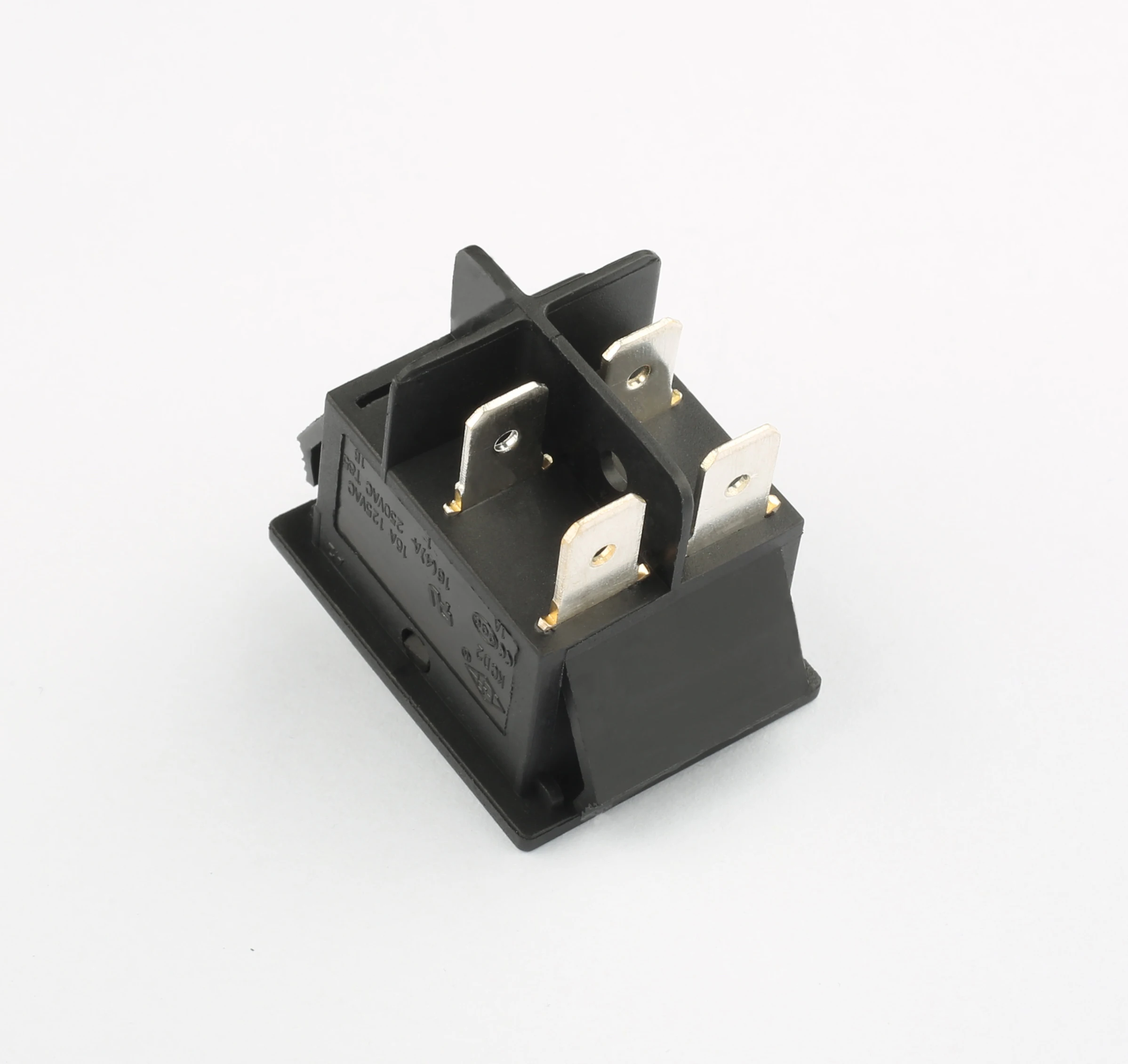

Factory wholesale 4 pin waterproof rocker switch supplier, durable & reliable.

Description

Our high-quality 4 Pin Waterproof Momentary Rocker Switch is a must-have for various applications. As a direct factory supplier offering wholesale prices, we ensure top-notch quality at competitive rates. This switch boasts a maximum current of 16A and a maximum voltage of 250VAC, making it suitable for a wide range of uses, including cars, industrial machinery, marine equipment, buses, electric equipment, and off-road vehicles. Made from durable plastic, it features an IP65 rating, ensuring excellent waterproof performance. The switch has a mechanical life of 100,000 times or 50,000 cycles, providing long-lasting reliability. With a contact resistance of ≤50MΩ and insulation resistance of ≥1000MΩ, it guarantees safe and efficient operation. The dielectric strength of 1500V AC for 1 minute further enhances its safety. Our switch is CQC certified, and it comes in a sleek black color with a compact size of 30*22mm. Choose our factory-direct wholesale 4 Pin Waterproof Momentary Rocker Switch for unbeatable quality and value.
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥1000MΩ
operating temperature
T55 T85 T125
dielectric strength
1500V AC 1min
IP code
IP65

Electronic component for cross-border e-commerce


Why Choose Our 4 Pin Waterproof Momentary Rocker Switch?

Our 4 Pin Waterproof Momentary Rocker Switch stands out for its exceptional quality and versatility. As a factory supplier, we offer wholesale prices, ensuring you get the best value for your money. The switch's IP65 rating makes it highly waterproof, perfect for use in harsh environments. Its durable plastic construction and long mechanical life guarantee reliable performance over time.

What Are the Key Features of This Switch?

This switch features a 4 pin design, a maximum current of 16A, and a maximum voltage of 250VAC, making it suitable for a wide range of applications. It has a contact resistance of ≤50MΩ and insulation resistance of ≥1000MΩ, ensuring safe and efficient operation. The dielectric strength of 1500V AC for 1 minute further enhances its safety. Additionally, it is CQC certified, giving you peace of mind about its quality.

What Are the Benefits of Buying from Us?

As a direct factory supplier, we eliminate the middleman, allowing us to offer you the best prices. Our switch is made from high-quality materials and undergoes rigorous testing to ensure it meets the highest standards. We also provide excellent customer service and after-sales support, ensuring your satisfaction. Choose us for your 4 Pin Waterproof Momentary Rocker Switch needs and experience the difference.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KCD2-23M-F

Application

Cars, Industrial, MARINE, BUSES, electric equipment, off-road vehicles

Material

plastic

Pins

4

Whether the smart

NO

Mechanical Life

100000 times, 50000 Cycles

IP level

IP65

Products name

4 pin rocker switch wiring kcd2 red rocker switch 4/6 pin

Certification

CQC

Color

Black

Usage

pressure regulating vibration feed controller

Size

30*22mm
