Factory Wholesale 5.08mm Plug-in Terminal Block Connector Supplier

Categories: , Tags: , , ,
100 - 9,999  pieces
$0.06

>= 10,000  pieces
$0.05
0 reviews

Factory wholesale 5.08mm plug-in terminal block connectors, supplier direct.

Clean All

Description

As a direct factory supplier, we offer wholesale 5.08mm plug-in terminal block connectors in green with flange. These connectors are designed for industrial and automotive applications, ideal for wire connecting in various environments. Key specifications include a pitch of 5.08mm, poles ranging from 2 to 24, and an operation temperature of -40°C to +150°C. Made with tin-plated copper contact material and housed in PA66 (UL94V-0), our connectors ensure durability and reliability. They support a max continuous amp of 16A, with a rated voltage of 300V AC and a rated current of 16A. Available in multiple colors including red, yellow, green, black, white, blue, gray, and orange, our connectors are certified by UL, CQC, CE, RoHS, ENEC, and KEMA, ensuring compliance with international standards. Our push-in connection method simplifies installation, and we offer a wide range of conductor sizes from 11 to 20 AWG. Choose us for high-quality, factory-direct pricing, and excellent after-sales service.
pitch
5.08mm
operation temperature
-40° ~ +150°
poles
2~24 poles
contact resistance
20mΩ
certificate
UL CQC
short-time temperature
+250° for 5 sec

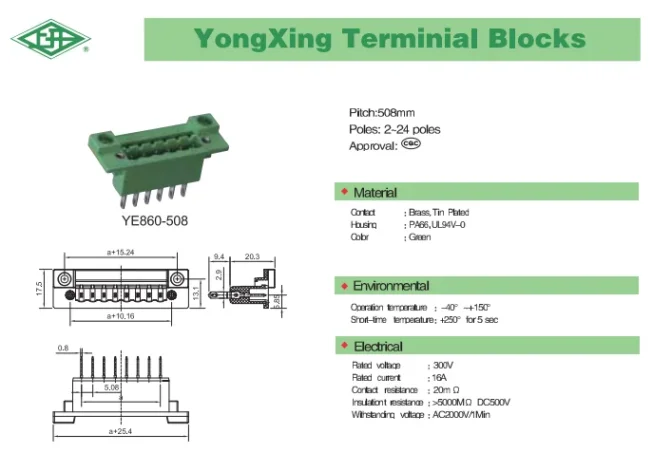

Electronic component product image for cross-border e-commerce


Why Choose Our 5.08mm Plug-in Terminal Block Connectors?

Our 5.08mm plug-in terminal block connectors are designed for industrial and automotive applications, offering reliable wire connecting solutions. With a factory-direct pricing model, we provide high-quality connectors at competitive prices, ensuring you get the best value for your money.

What Makes Our Connectors Stand Out?

Our connectors are made with tin-plated copper contact material and housed in PA66 (UL94V-0), ensuring durability and reliability. They support a wide range of poles (2-24) and conductor sizes (11-20 AWG), making them suitable for various applications. Additionally, our push-in connection method simplifies installation, saving you time and effort.

What Certifications Do Our Connectors Have?

Our connectors are certified by UL, CQC, CE, RoHS, ENEC, and KEMA, ensuring compliance with international standards. This gives you peace of mind knowing that you're using a product that meets the highest quality and safety requirements.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Place of Origin

Shanghai, China
Application

Industrial, Automotive, wire connecting, spring terminal block
Number of Pole

2, 4, 6, 1, 3, 5, Other
Contact Material

tin-plated copper
Connection Method

push-in connection
Max continuous amp

16A
Brand Name

shangkai
Model Number

YE860-508
Number of Contacts

1 – 10
Conductor Size

11 – 20 AWG
Type

Plug-in
color

Red, Yellow ,Green, Black, White, Blue, Gray, Orange
Certification

CCC,CQC, CE, RoHS, ENEC,KEMA
current

30A
voltage

300V AC
pole

2-3poles
Housing

PA66 ,UL94V-0
Temperature

-40℃~+150℃
name

distribution motor electrical meter screw terminal block connector
