Description

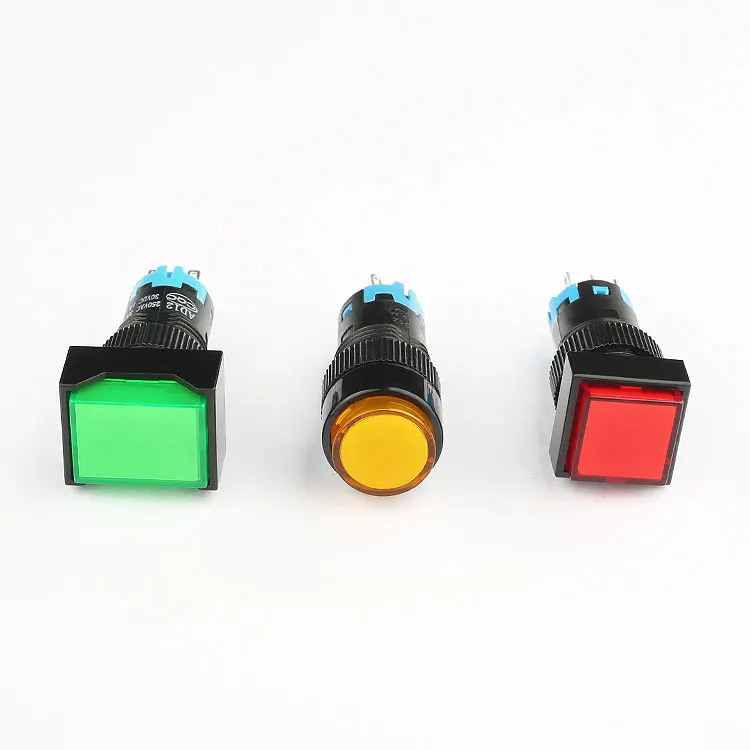

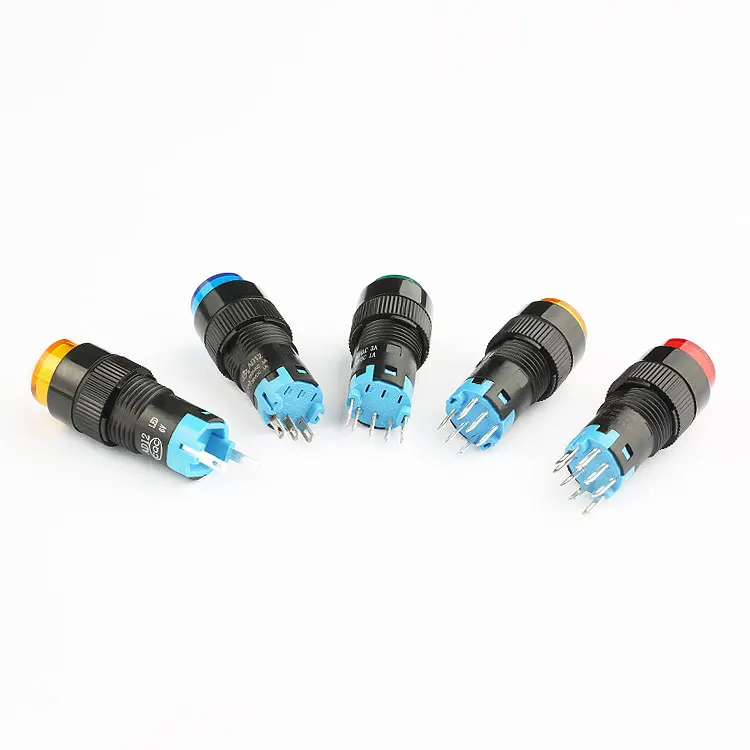

Factory Wholesale 5/6/8 Pin 12mm Illuminated Push Button Switch
Welcome to our factory direct sales page! As a leading supplier, we offer high-quality illuminated push button switches at wholesale prices. Our AD12 model switch is designed to meet your diverse needs with its versatile features.
Product Specifications:
- Max. Current: 3A
- Max. Voltage: 250V AC
- Switch Combination: 1NO1NC, 2NO2NC
- LED Colors: Red, Blue, Green, Yellow, White
- Pushbutton Head: Round, Mushroom, Square, Rectangular
- Panel Cutout: 12mm
- Indicator Voltage: 2V, 6V, 12V, 24V, 110V, 220V
- Operating Temperature: -5°C to +75°C
- Insulation Resistance: ≥100MΩ
- Contact Resistance: ≤50mΩ
- Dielectric Strength: 1500V
- Certification: CQC, CE, ROHS
- Protection Level: IP40
Product Advantages:
Our illuminated push button switches stand out from the competition with their high quality, durability, and wide range of options. The LED indicator lights are available in multiple colors, making them suitable for various applications. The switches are designed for easy installation and long-lasting performance, with a mechanical life of up to 200,000 cycles for momentary switches and 50,000 cycles for alternate switches.
After-Sales Service:
We are committed to providing excellent after-sales service. If you have any questions or encounter any issues with our products, please don’t hesitate to contact us. Our professional team will be happy to assist you.
Why Choose Us?
As a factory supplier, we can offer you the best prices and the highest quality products. We have strict quality control measures in place to ensure that every switch meets our high standards. Plus, with our wholesale options, you can save even more on bulk purchases.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
Why Choose Our Illuminated Push Button Switch?
Our illuminated push button switch is the perfect choice for a wide range of applications. With its high-quality construction, versatile features, and competitive pricing, it offers excellent value for money. The LED indicator lights make it easy to see the status of the switch, even in low-light conditions. Plus, with multiple color options and switch combinations available, you can find the perfect switch for your needs.
What Are the Key Features of Our Switch?
Our switch features a 12mm panel cutout, making it suitable for a variety of panel thicknesses. It has a max. current rating of 3A and a max. voltage rating of 250V AC, ensuring reliable performance. The switch combination options of 1NO1NC and 2NO2NC provide flexibility in circuit design. Additionally, the switch has a long mechanical life, ensuring durability and longevity.
How Can We Help You?
As a factory supplier, we are dedicated to providing you with the best products and services. We offer wholesale pricing on bulk purchases, making it easy for you to save money. Our professional team is always available to answer your questions and provide support. Whether you're looking for a single switch or a large quantity, we've got you covered.
