Description
Product Specifications:
- Max. Current: 3A
- Max. Voltage: 250V AC
- LED Indicator: Yes, available in 2V, 6V, 12V, 24V, 110V, 220V
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1500V
- Electronic Life: Momentary: 50,000 cycles, Alternate: 25,000 cycles
- Mechanical Life: Momentary: 200,000 cycles, Alternate: 50,000 cycles
- Certification: CQC, CE
- Operating Temperature: -5°C to +75°C
- IP Code: IP40

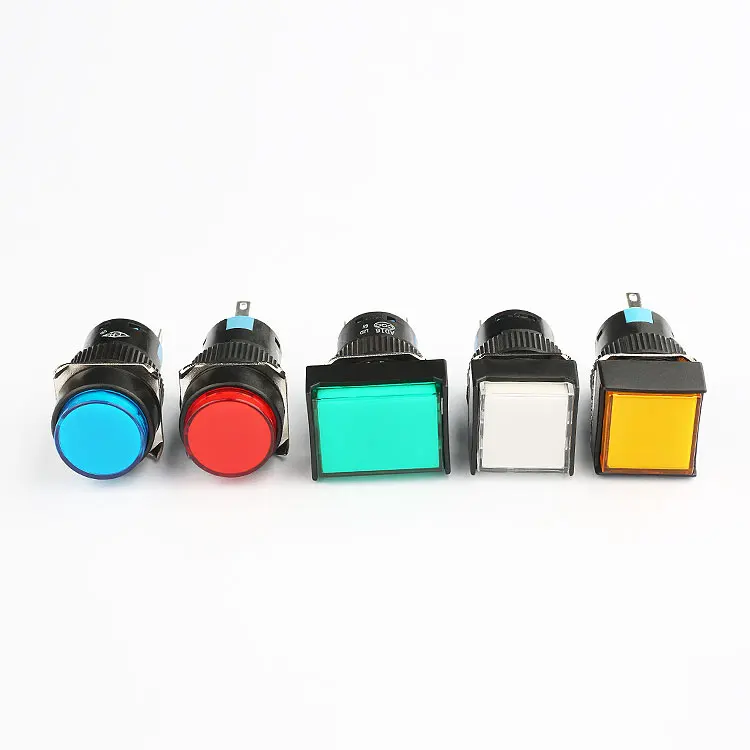

- Color Options: Red, Blue, Green, Yellow, White
- Pushbutton Head: Round, Mushroom, Square, Rectangular
- Panel Cutout: 12mm, 16mm
- Switch Combination: 1NO1NC, 2NO2NC
Product Advantages:
Our LED push button switches stand out with their durable construction, reliable performance, and long lifespan. The bright LED indicator ensures easy visibility in various lighting conditions, making them ideal for control panels, machinery, and automation systems. Our factory-direct pricing and wholesale availability make these switches a cost-effective choice for bulk purchases.
After-Sales Service:
We are committed to providing excellent customer service. All our products come with a warranty, and our dedicated support team is always ready to assist with any inquiries or issues.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
Why Choose Our LED Push Button Switches?
Our LED push button switches are designed for durability and reliability, making them ideal for demanding industrial environments. The bright LED indicator ensures easy visibility, even in low-light conditions, enhancing safety and efficiency.
What Makes Our Switches Stand Out?
Our switches feature a long mechanical and electronic life, reducing the need for frequent replacements. With factory-direct pricing and wholesale availability, we offer a cost-effective solution for bulk purchases.
How Can Our Switches Benefit Your Business?
By choosing our LED push button switches, you can ensure reliable operation of your machinery and control systems. Our commitment to quality and customer service means you can trust us to provide the best products and support for your needs.
