Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD5-22N-CA2A-B-R-01-24D
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
DPDT
|
|
Dimension Code
|
A2 (21.2×23.8×24.2 , 19.4×21.8×21.8)
|
|
Contact Piece Code
|
A (8 length, 4.8×0.8 standard )
|
|
Lamp voltage
|
6v/12v/24v/110v/220v etc.
|
|
Switch Function
|
ON ON Illuminated
|

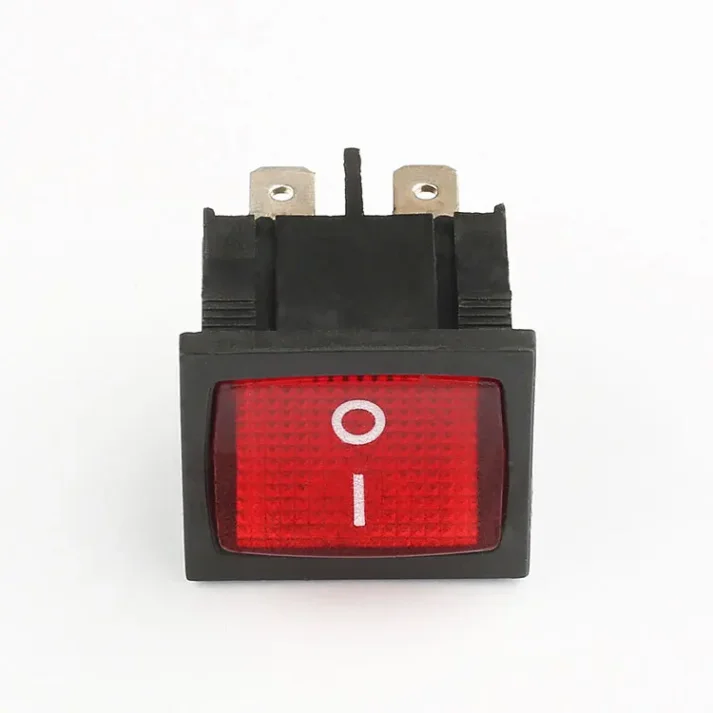

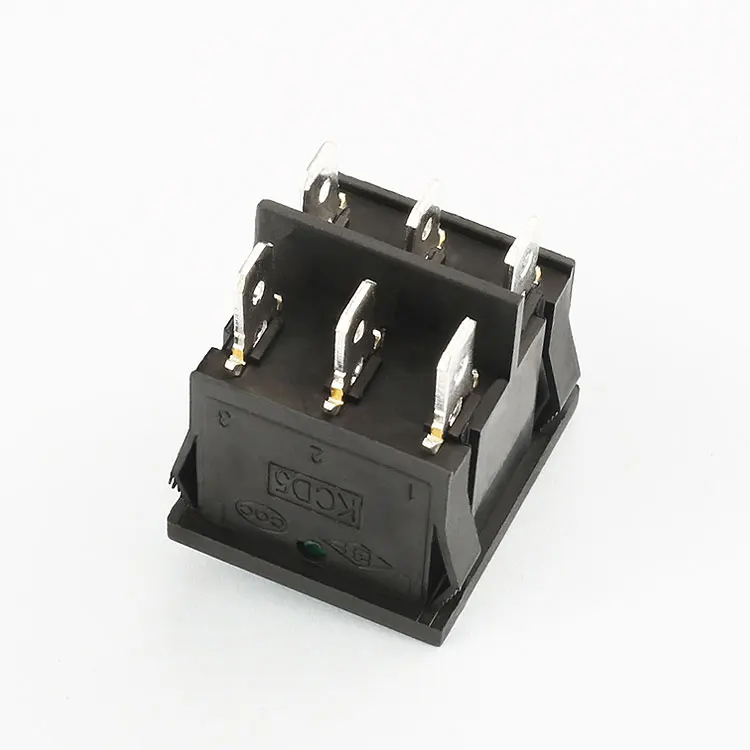

Why Choose Our 6 Pin DPDT Illuminated Rocker Switch?
Our 6 Pin DPDT Illuminated Rocker Switch stands out for its durability, reliability, and safety. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance in various applications. The illuminated feature makes it ideal for situations where visual indication is necessary, enhancing user experience.
What Are the Key Specifications of Our Switch?
Our switch has a current rating of 6A and a voltage rating of 250V AC, making it suitable for a wide range of electrical applications. It features a contact resistance of ≤50mΩ and an insulation resistance of ≥1000MΩ, ensuring safety and efficiency. The dielectric strength is 1500VAC for 1 minute, providing robust protection against electrical surges.
How Does Our Factory Wholesale Advantage Benefit You?
As a factory direct supplier, we offer competitive wholesale prices and excellent customer service. By choosing us, you get access to high-quality products at affordable prices, along with the assurance of dealing directly with the manufacturer. This means better quality control, faster delivery times, and the ability to customize orders to meet your specific needs.
