Description

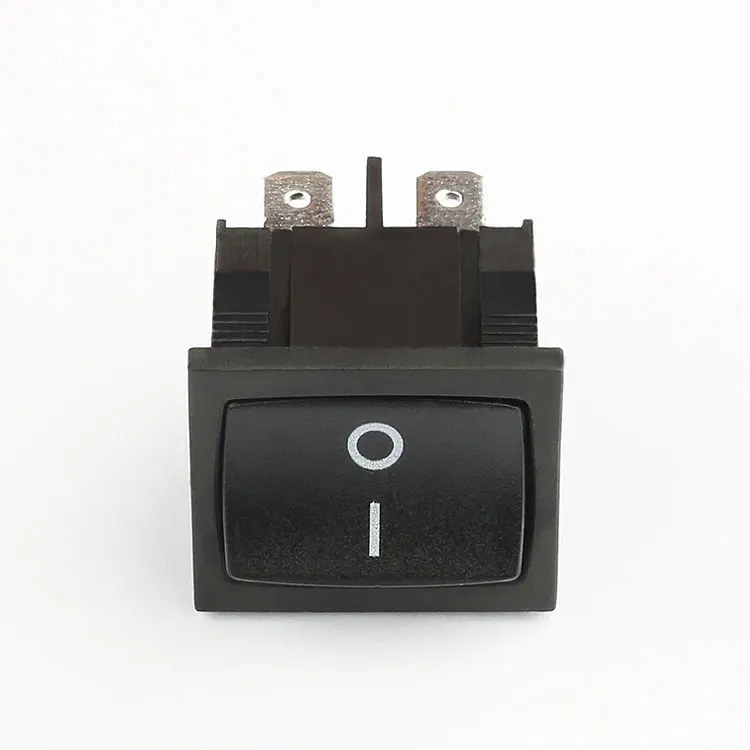

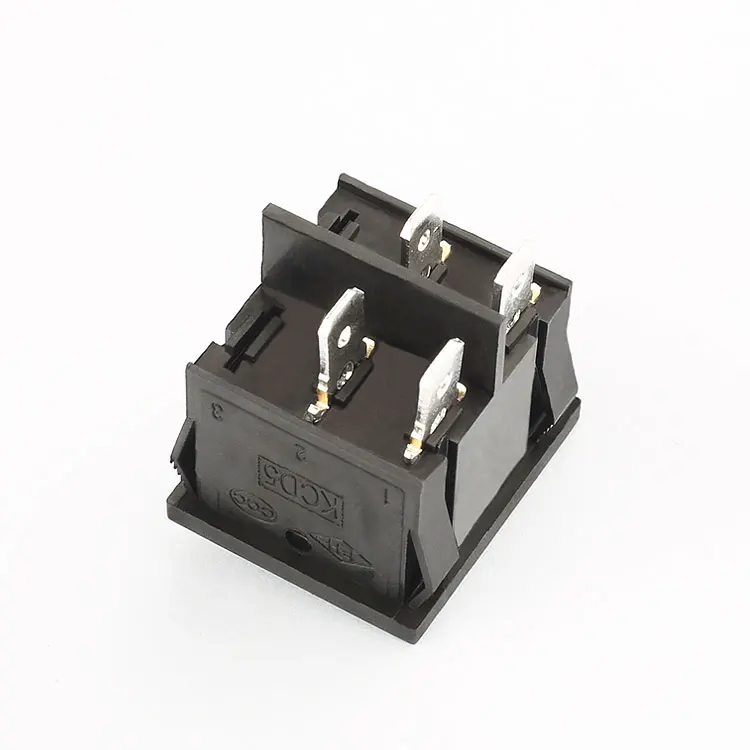

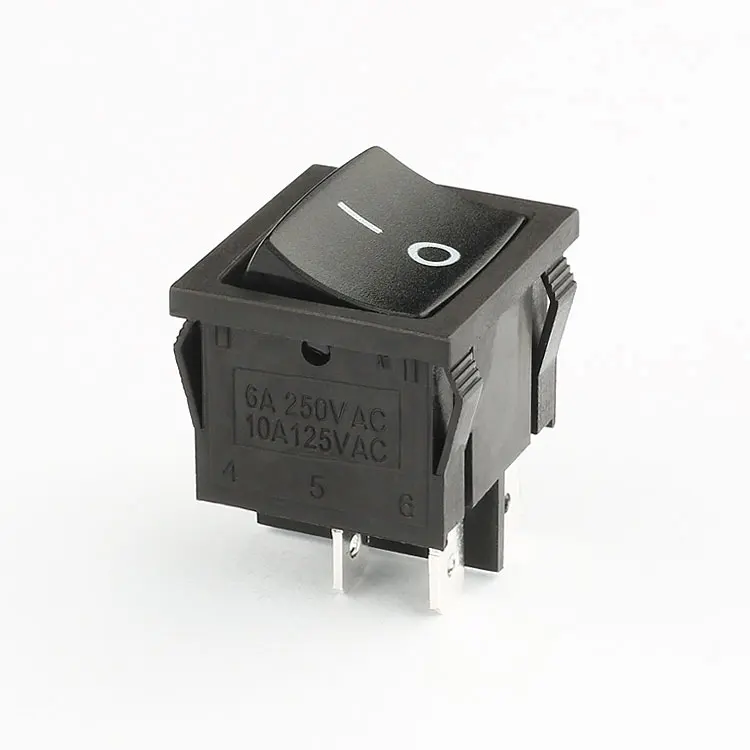

Our rocker switch features a robust construction with a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. It is rated for 6A current and 250V AC voltage, making it suitable for a wide range of applications. The switch is also CE, CQC, UL, and ROHS certified, guaranteeing safety and compliance with international standards.
What sets our rocker switch apart is its versatility and customization options. It comes in a variety of actuator colors including Red, Yellow, Green, Black, Blue, Orange, White, and Gray, allowing you to match it with your specific design requirements. The switch also offers a momentary function, providing flexibility in its usage.
As a factory supplier, we offer competitive wholesale prices and ensure timely delivery. Our commitment to quality and customer satisfaction makes us the preferred choice for buyers looking for reliable electrical components. Choose our DPST Rocker Switch for your next project and experience the difference in performance and value.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD5-21M-CA2B-B-B-01
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE UL ROHS
|
|
Circuit
|
DPST
|
|
Dimension Code
|
A2 (21.2×23.8×24.2 , 19.4×21.8×21.8)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 welding type)
|
|
Actuator Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Switch Function
|
Momentary
|
Why Choose Our DPST Rocker Switch?
Our DPST Rocker Switch stands out due to its high current and voltage ratings, ensuring reliable performance in demanding applications. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it offers long-lasting durability, reducing the need for frequent replacements.
Customization Options
We understand that different applications require different colors and designs. That's why our rocker switch comes in a variety of actuator colors, allowing you to choose the one that best matches your project's requirements. This customization option enhances the aesthetic appeal and functionality of your products.
Factory Wholesale Advantage
As a factory supplier, we offer competitive wholesale prices without compromising on quality. Our direct-to-factory approach ensures that you get the best value for your money. With timely delivery and excellent customer service, we make the purchasing process smooth and hassle-free.
