Description

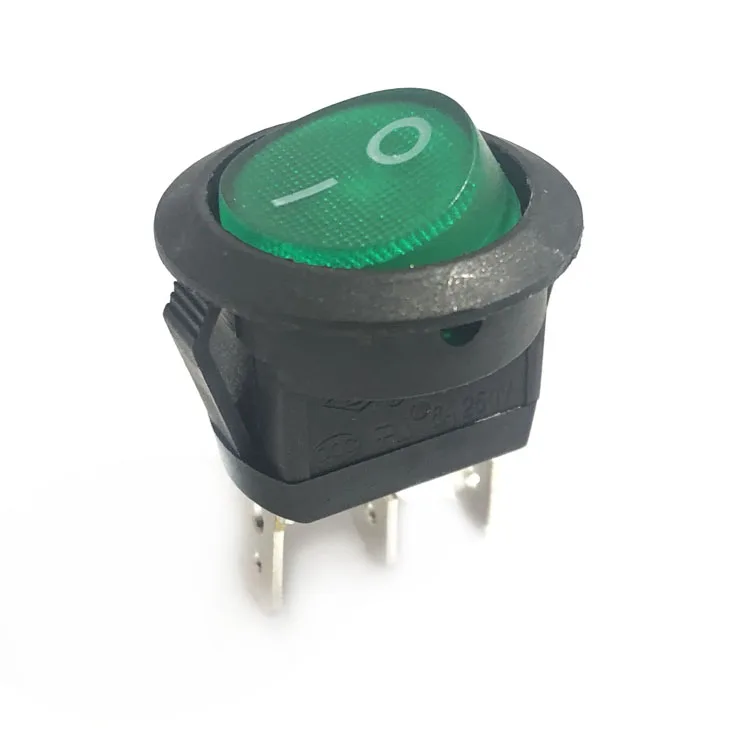

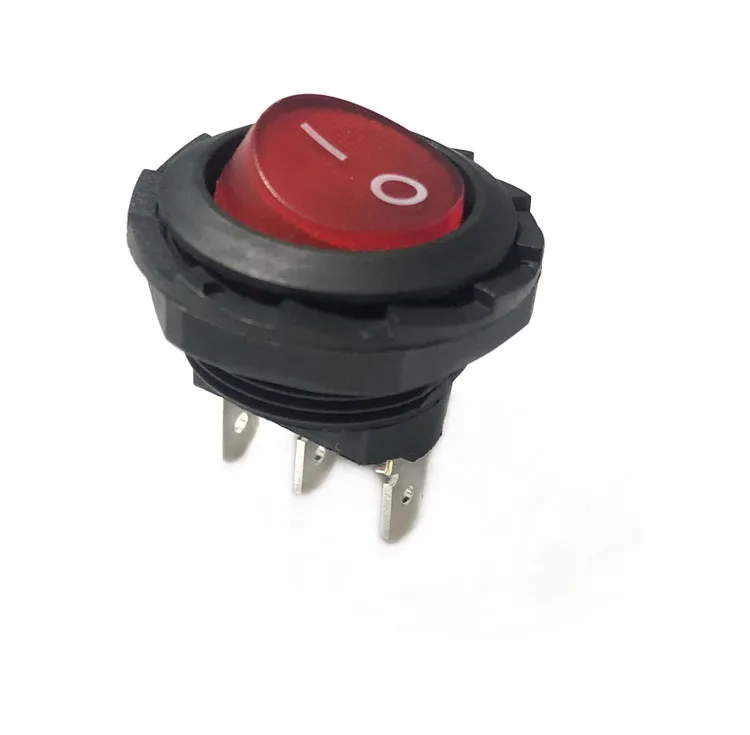

Our high-quality 6A 250VAC SPST 2-Pin Rocker Switch is a must-have for your electric equipment needs. As a factory supplier offering wholesale options, we ensure top-notch quality at competitive prices. This rocker switch, with a 20.2mm diameter, is designed for easy snap-in installation on panels. It is certified with CQC, CE, CB, ENEC17, UL, and ROHS, guaranteeing safety and compliance with international standards. Our switch boasts a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring durability and reliability. With a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ, it offers excellent electrical performance. The dielectric strength of 1500VAC for 1 minute further ensures its safety under high voltage conditions. Available in a variety of colors including red, yellow, green, black, blue, orange, white, and gray, it can be customized to match your equipment’s aesthetics. Operating temperatures range from 0~55℃, 0~85℃, to 0~105℃, making it suitable for a wide range of environments. Choose our factory-direct, wholesale-friendly rocker switch for your next project and experience the difference in quality and service.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-11-CB1A-B-G-01
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 UL ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1
|
|
Contact Piece Code
|
A
|
Why Choose Our Rocker Switch?
Our rocker switch stands out due to its high-quality construction, long mechanical and electronic life, and compliance with multiple international safety standards. As a factory supplier, we offer wholesale pricing, making it an affordable choice for your projects.
What Are the Key Features?
Key features include a 6A 250VAC rating, 20.2mm diameter for easy installation, and a variety of color options. It also boasts low contact resistance, high insulation resistance, and excellent dielectric strength, ensuring safety and reliability.
What Applications Is It Suitable For?
This rocker switch is perfect for electric equipment, panel installations, industrial use, and home appliances. Its durable construction and wide operating temperature range make it suitable for a variety of environments and applications.
