Description

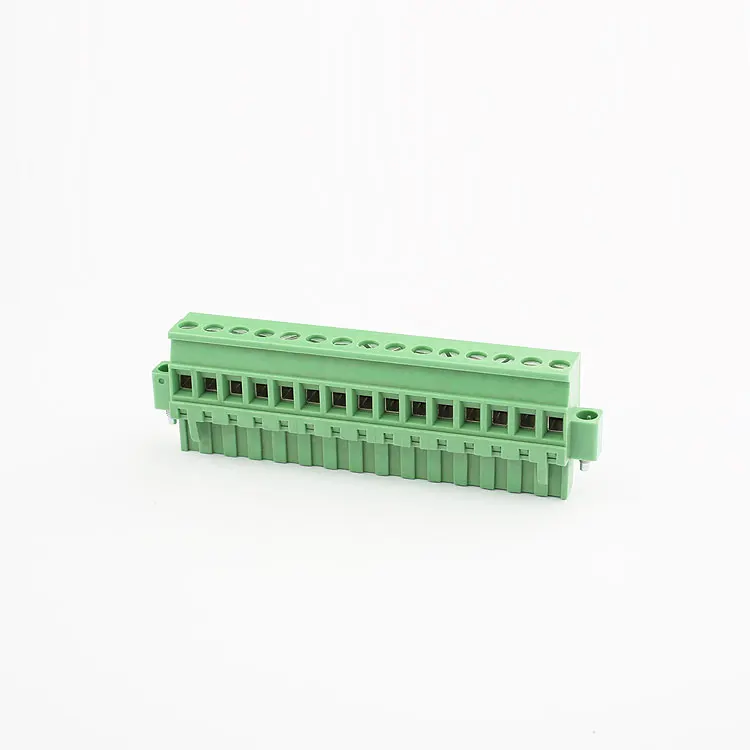

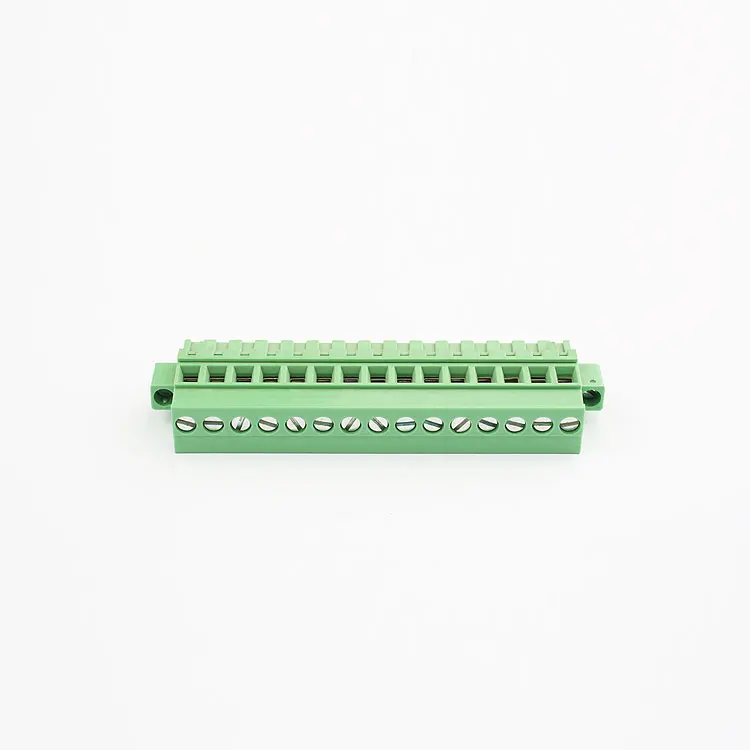

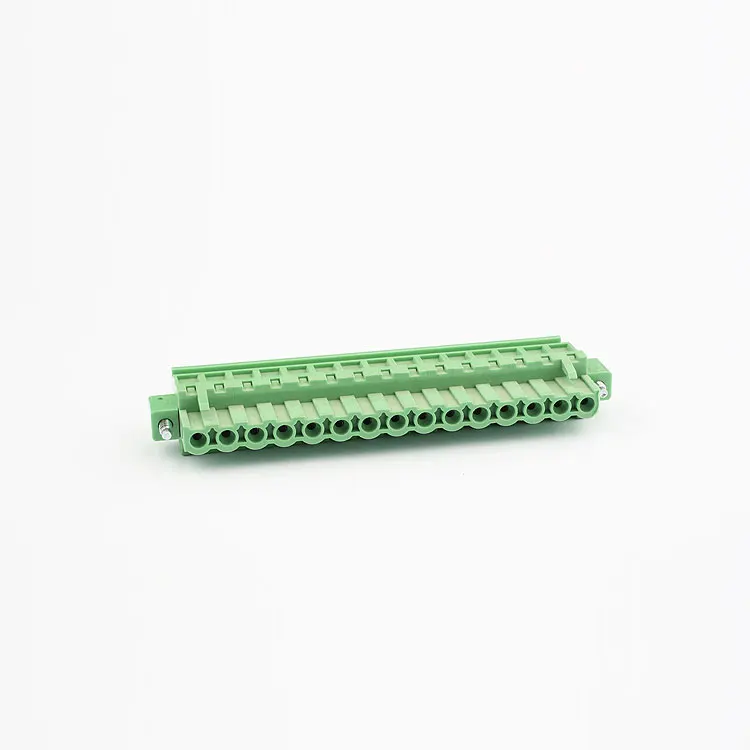

Factory Wholesale 7.5mm Green Pluggable Terminal Block Connector
As a direct factory supplier, we offer high-quality 7.5mm green pluggable terminal block connectors at wholesale prices. These connectors are perfect for a wide range of electrical applications, providing reliable and efficient connections.
Product Specifications
- Material: Contact: Brass, Tin Plated; Housing: PA66, UL94V-0
- Color: Green (also available in Red, Yellow, Black, White, Blue)
- Number of Contacts: 2-24 poles
- Conductor Size: 28-14 AWG
- Type: Plug-in
- Rated Voltage: 300V
- Rated Current: 16A (also available in 10A)
- Operating Temperature: -40°C to +150°C
- Withstanding Voltage: AC2000V/Min
- Insulation Resistance: >5000MΩ DC500V
Product Advantages
Our terminal block connectors stand out from the competition with their superior quality and durability. The brass contacts with tin plating ensure excellent conductivity and corrosion resistance, while the PA66 housing with UL94V-0 rating provides excellent flame retardancy and heat resistance. With a wide operating temperature range and high withstanding voltage, these connectors are suitable for various harsh environments.
Product Usage
These connectors are widely used in electrical control systems, automation equipment, power distribution boxes, and more. They are ideal for connecting wires securely and efficiently, ensuring stable and reliable electrical connections.
After-sales Service
We are committed to providing excellent after-sales service. If you have any questions or concerns about our products, please feel free to contact us. We will do our best to resolve your issues promptly and ensure your satisfaction.
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green 10 pin connectors |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V |
| Rated current | 16A screw clamp wire connectors |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/Min terminal connectors |
Why Choose Our 7.5mm Green Pluggable Terminal Block Connector?
Our 7.5mm green pluggable terminal block connector is a high-quality, reliable, and efficient solution for your electrical connection needs. As a factory supplier, we offer wholesale prices, ensuring you get the best value for your money.
Superior Quality and Durability
Made with brass contacts and tin plating, our connectors provide excellent conductivity and corrosion resistance. The PA66 housing with UL94V-0 rating ensures flame retardancy and heat resistance, making them suitable for various harsh environments.
Wide Range of Applications
Our connectors are widely used in electrical control systems, automation equipment, power distribution boxes, and more. They are ideal for connecting wires securely and efficiently, ensuring stable and reliable electrical connections.
