Factory Wholesale 8mm-22mm Mushroom LED Metal Push Button Switches

>= 5  pieces
$2.50

0 reviews

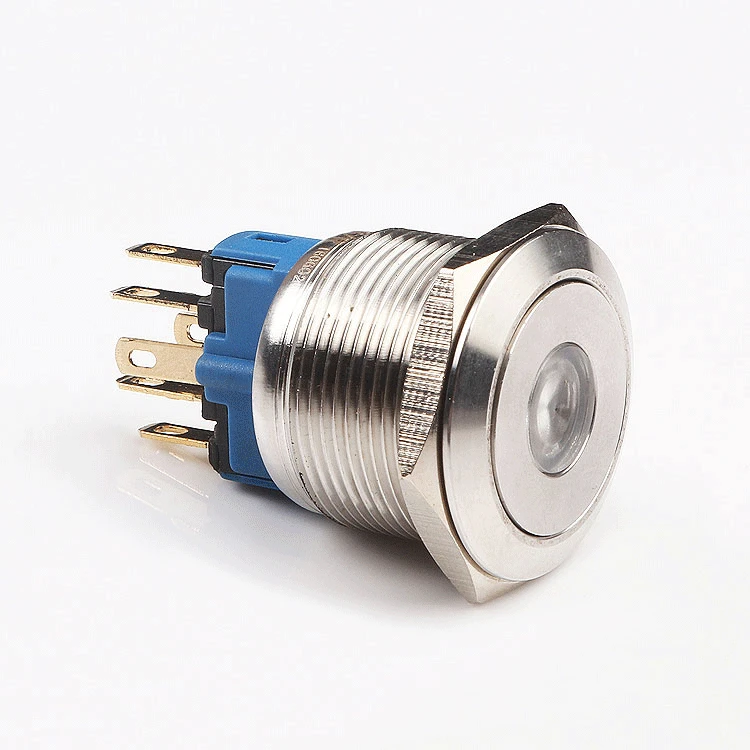

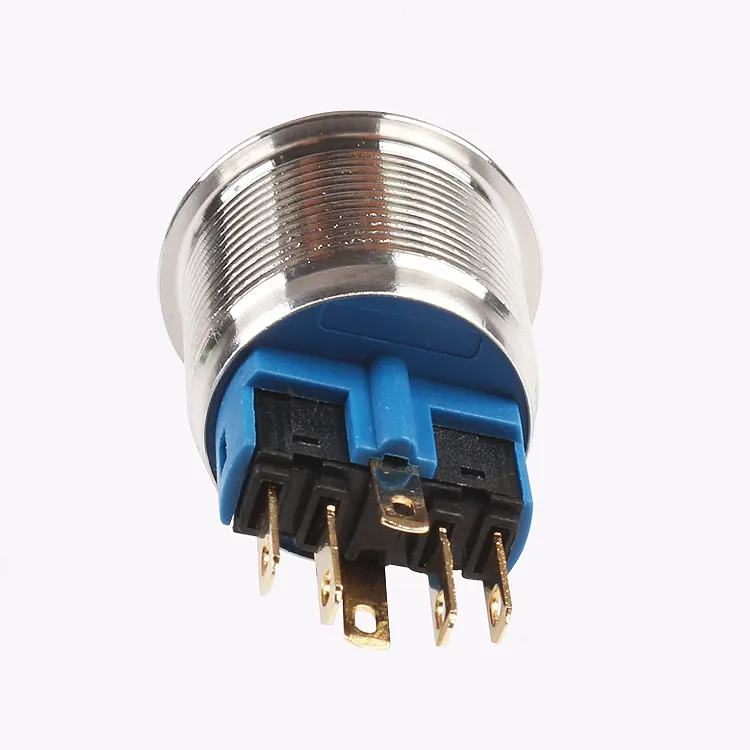

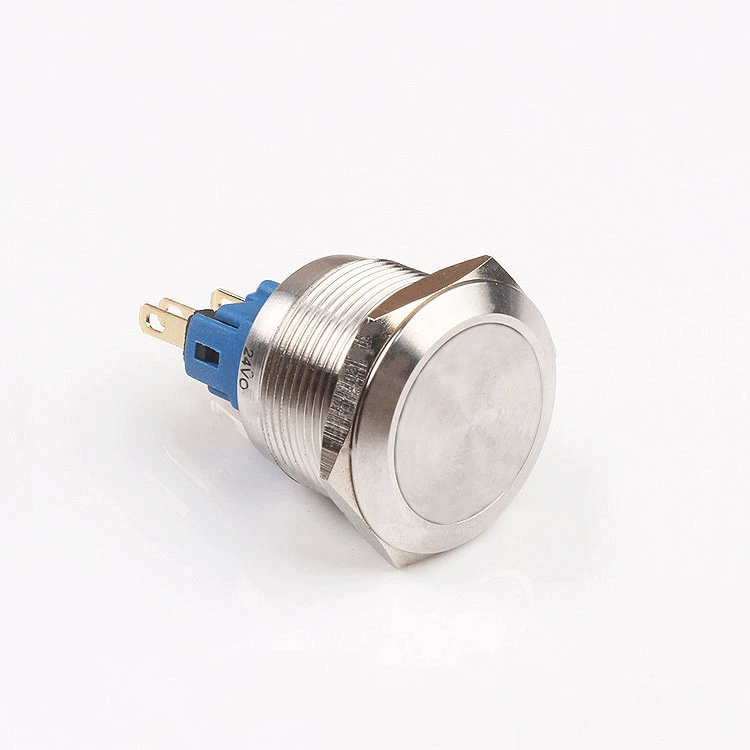

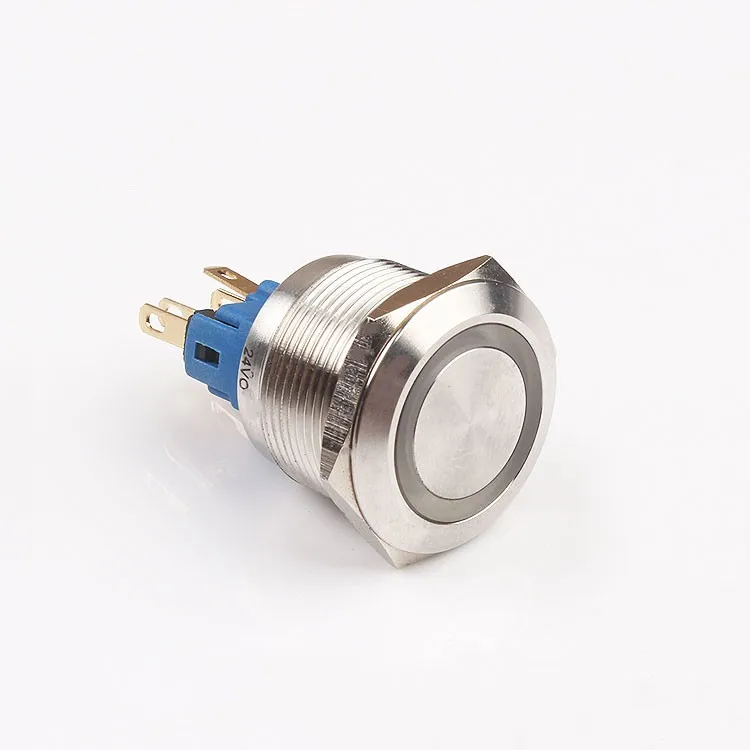

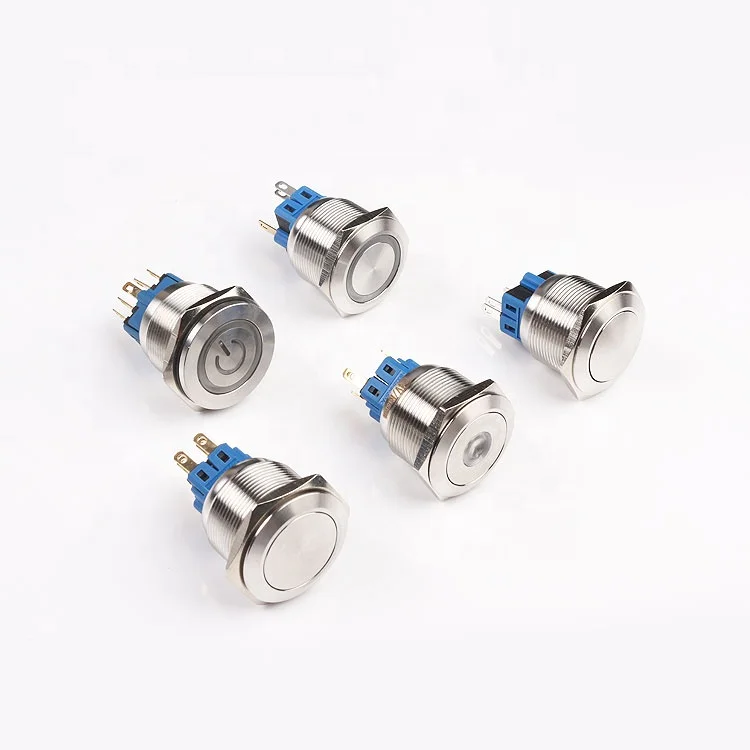

Factory Wholesale Mushroom LED Metal Push Button Switches – Durable, Reliable, & Cost-Effective

Description

Our factory offers wholesale Mushroom LED Metal Push Button Switches in sizes ranging from 8mm to 22mm. These switches are illuminated with LEDs, making them perfect for applications where visibility is crucial. Crafted from high-quality materials such as stainless steel, nickel-plated brass, or gold-plated brass, our switches ensure durability and longevity. With a contact resistance of ≤50MΩ and insulation resistance of ≥1000MΩ, they provide reliable performance. Our switches also boast an IP67 protection level, ensuring resistance to dust and water ingress. As a direct supplier, we offer competitive pricing and flexible bulk order options. Ideal for industrial controls, machinery, and more, our switches are the perfect choice for those seeking quality and value.
Panel Thickness 1-10mm
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000 MΩ 4 pin push button switch
Torque 5-14Nm
Operating Pressure About 4N
Operating Stroke About 1.8mm
Mounting Hole Size 22mm
Dielectric Strength 2000VAC
Electronic Life >1,000,000 times
Mechanical Life >200,000 times
Operating temperature -20°c~+55°c
IP code IP67 IK09
Switch Rating 2A /36VAC emergency push button switch
Contact Configuration 1NO
Operating Type Momentary elevator push button switch
The Front Shape High Round
The Crust Material Stainless Stell,Nickel-plated Brass or Gold-Plated Brass

Material

Contact : Sliver Alloy
Button: Tainless Steel;Mirror Surface,CD pattern
Case: Tainless Steel;Mirror Surface,CD pattern Nickel-plated Brass
Base: PBT

(Can be made to order)

Electronic component product image for cross-border e-commerceElectronic device product picture for SEO optimizationElectronic gadget product image for e-commerce website


Why Choose Our Mushroom LED Metal Push Button Switches?

Our switches are designed with durability and reliability in mind. Crafted from high-quality materials, they offer long-lasting performance even in harsh environments. The LED illumination ensures visibility, making them perfect for applications where quick identification is crucial.

What Makes Our Switches Stand Out?

As a factory supplier, we offer competitive pricing and flexible bulk order options. Our switches also come with an IP67 protection level, ensuring resistance to dust and water ingress. Additionally, we provide customizable orders to meet your specific needs.

What Are the Key Features of Our Switches?

Our switches feature a high round front shape, momentary operation, and 1NO contact configuration. They also have a dielectric strength of 2000VAC and an insulation resistance of ≥1000MΩ, ensuring reliable performance. Perfect for industrial controls, machinery, and more, our switches are the ideal choice for those seeking quality and value.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

5A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Shangkai(SK)

Model Number

YXGQ22B-10J switch

LED

Yes

Whether the smart

NO

IP level

IP65

Switch Combination

1NO1NC

Name

multi-function 24v pins double pole double throw push button switch

The Front Shape

Domed

Terminal Type

X Two Terminal breakpoints slow moving contact

Switch Specifications

2A/36VDC

Contact Resistance

≤50MΩ 4 pin push button switch

Insulation Resistance

≥1000MΩ

Dielectric Strength

2000VAC metal push button switch

Mechanical Life

>1,000,000 times

Electrical Life

>200,000 times

Protection Level

IP67
