Factory Wholesale AD16 12V LED 16mm Plastic Push Button Switch Supplier

$0.99
0 reviews

Factory Wholesale AD16 12V LED Push Button Switch Supplier

Description

Introducing our high-quality AD16 12V LED 16mm Plastic Push Button Switch, available for wholesale directly from our factory. As a leading supplier, we offer top-notch products with exceptional features. Our switch is designed with a 16mm mounting hole size, making it suitable for various applications. It operates at a rated voltage of 12V, with a maximum current of 3A and a maximum voltage of 250V, ensuring reliable performance. The switch comes with a vibrant LED in colors like red, yellow, green, white, and blue, providing clear visual indication. One of our key advantages is our independent plant, injection molding workshop, and advanced experimental equipment, which enable us to customize switches according to your specific requirements. With over 60 senior engineers and strict 5S management in all workshops, we guarantee the highest quality standards. Our switch boasts an electrical life of 25,000 cycles and a mechanical life of 200,000 cycles, ensuring long-lasting durability. It operates within a temperature range of -5°C to +75°C and has an IP40 protection level, making it suitable for various environments. Additionally, our switch is CQC and CE certified, providing peace of mind regarding its safety and compliance. Choose us as your supplier for factory-direct wholesale prices and exceptional customer service.
Max.Rating Current & Voltage(Resistive Load) 3A/250V AC
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000 MΩ
Dielectric Strength 1500V
Electronic Life(cycles) 50000
Mechanical Life(cycles) 200000
Operating temperature -5°c~+75°c
IP code IP40

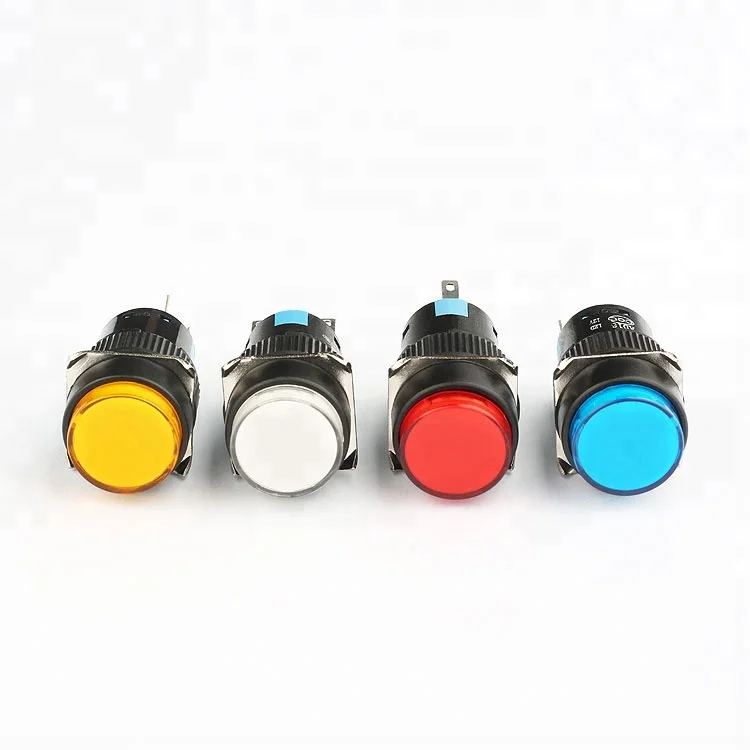

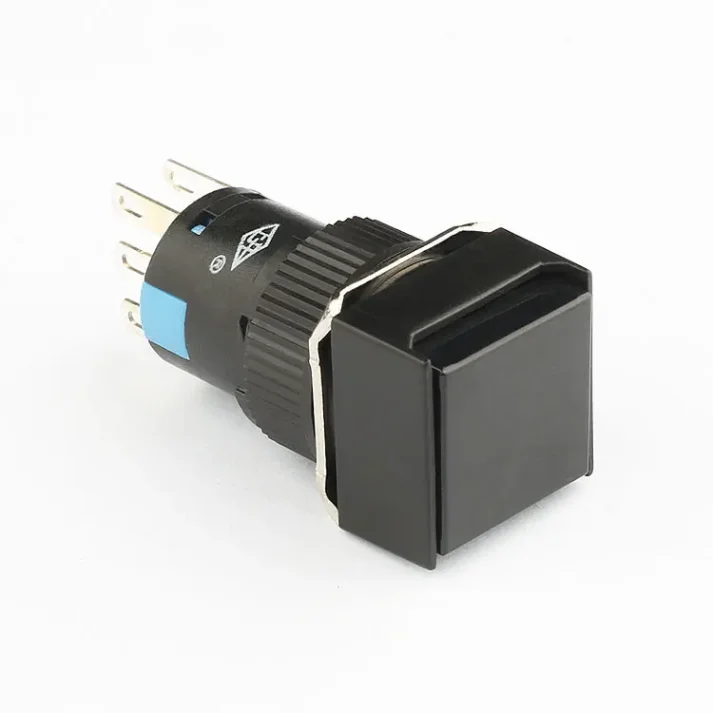

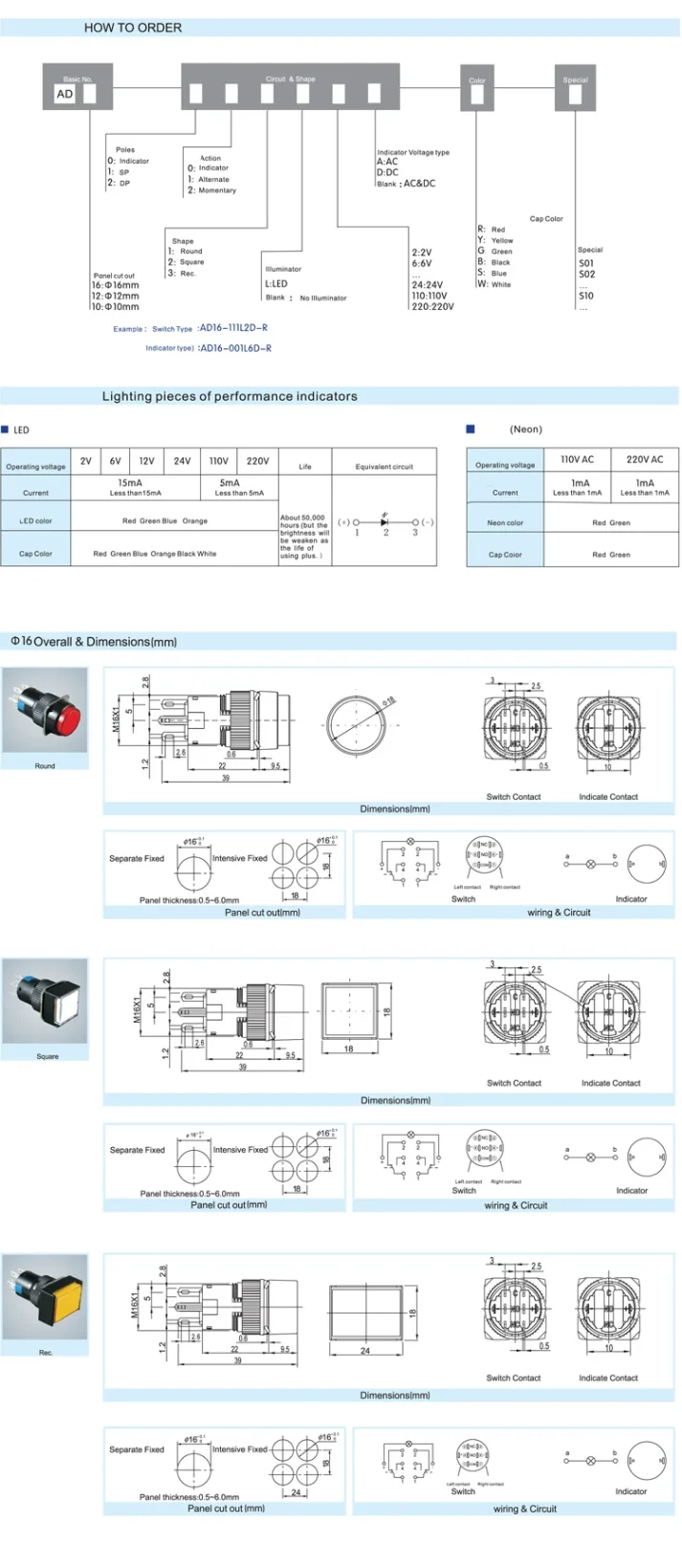

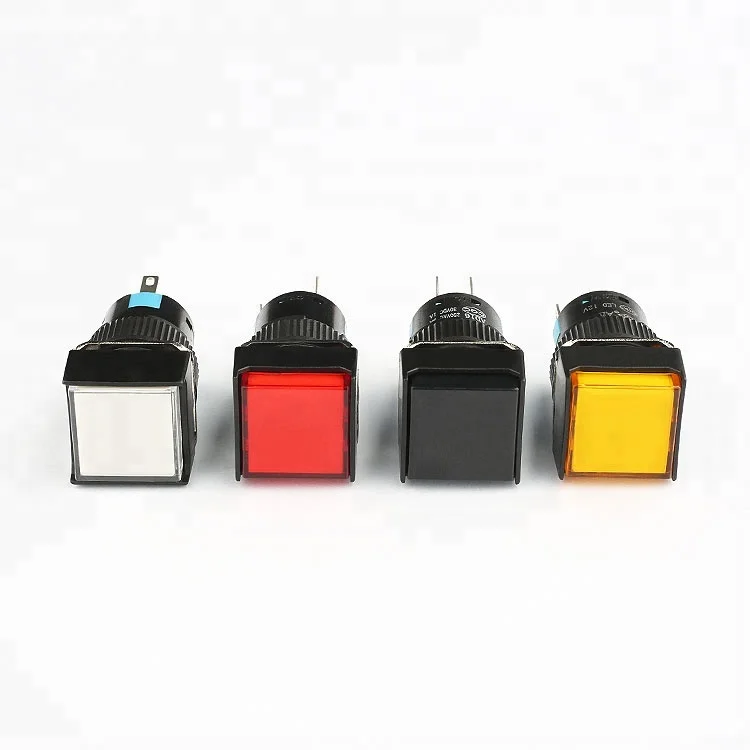

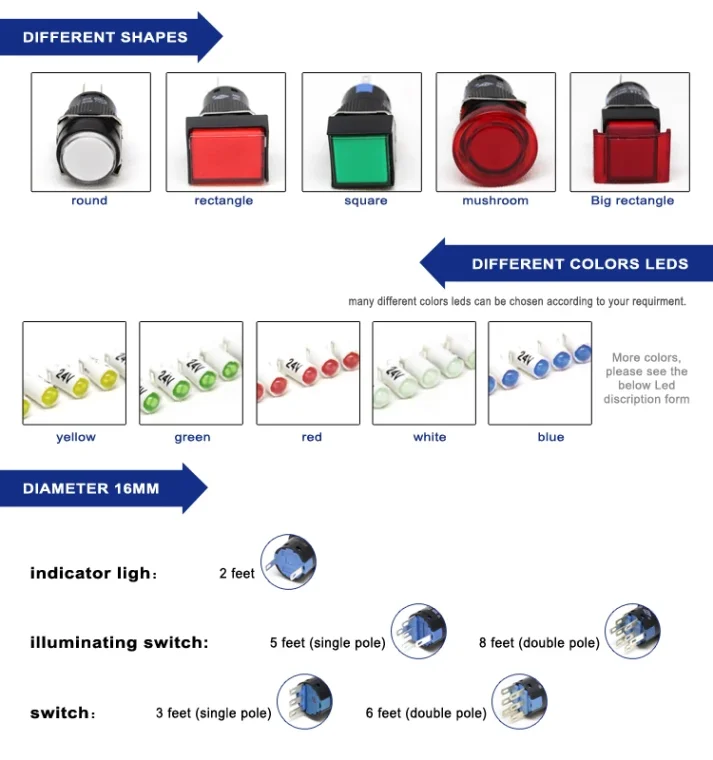

Electronic component product image for SEO optimizationElectronic device product image for cross-border e-commerceElectronic gadget product image for SEO purposesElectronic accessory product image for e-commerce site


Why Choose Our AD16 12V LED Push Button Switch?

Our AD16 12V LED Push Button Switch stands out due to its high-quality construction, reliable performance, and customizable options. As a factory supplier, we offer wholesale prices, ensuring you get the best value for your money. The switch's 16mm size makes it versatile for various applications, while the LED indication provides clear visual feedback. With a long electrical and mechanical life, our switch ensures durability and reliability.

What Are the Key Features of Our Switch?

Our switch features a maximum current of 3A and a maximum voltage of 250V, making it suitable for a wide range of applications. The vibrant LED colors, including red, yellow, green, white, and blue, offer clear visual indication. Additionally, our switch is CQC and CE certified, ensuring its safety and compliance with international standards.

How Can We Customize the Switch for Your Needs?

As a factory supplier, we have the capability to customize the switch according to your specific requirements. Whether you need a different LED color, a specific mounting hole size, or other modifications, we can accommodate your needs. Contact us today to discuss your customization options and get a quote for your wholesale order.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Shangkai(SK)

Model Number

AD16-122L12-R

LED

Yes

Whether the smart

NO

Switch Combination

1NO1NC

Operation type

Mometary

Color

Black

LED color

Red.yellow.green.white.blue

Mounting hole size

16mm

Electrical life

25,000 cycles

Certification

CQC CE

Protection Level

IP40
