Description
Specifications:
- Place of Origin: Shanghai, China
- Brand Name: SK (Shangkai)
- Model Number: YX
- Number of Contacts: 1 – 10
- Conductor Size: 21 – 30 AWG
- Type: PCB
- Rated Voltage: 250V~450V
- Rated Current: 16A
- Pitch: 5.08mm
- Insulation Resistance: >5000MΩ DC500V
- Withstanding Voltage: AC2000V/1Min
Advantages:
- Wide Temperature Range: Operating temperature from -40°C to 150°C, with short-time temperature resistance up to +250°C for 5 seconds.
- High Electrical Performance: Rated voltage up to 450V, rated current 16A, low contact resistance of 20mΩ, and high insulation resistance ensure stable and efficient electrical connections.
- Certifications: CQC, CE, ROHS certified, guaranteeing compliance with international safety and quality standards.
After-sales Service: We provide comprehensive after-sales service, including technical support and warranty coverage, to ensure your satisfaction. Choose our factory-direct PCB terminal block connectors for reliable, high-performance electrical connections.
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green pa66 terminal connector |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V connector blocks |
| Rated current | 16A 2 pins connector |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/1Min |

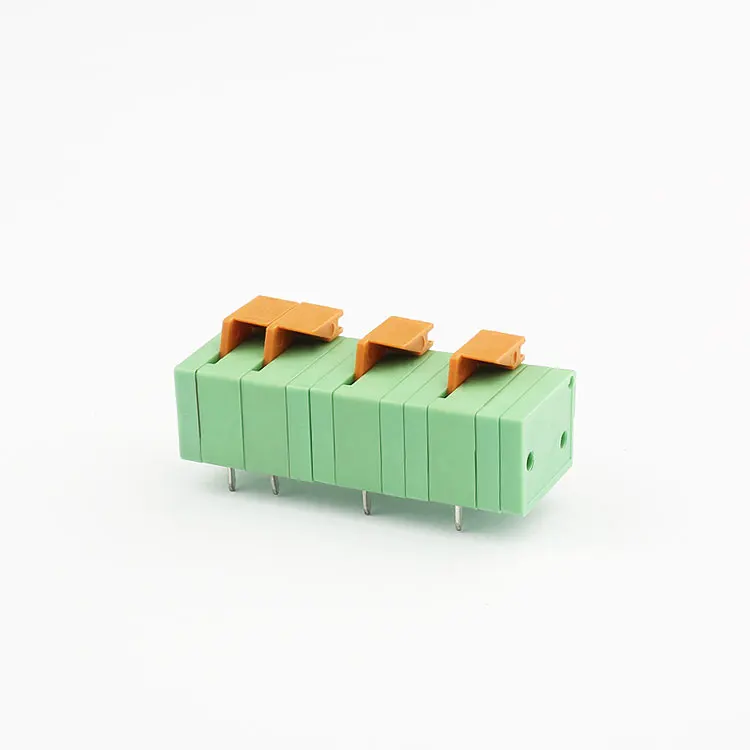

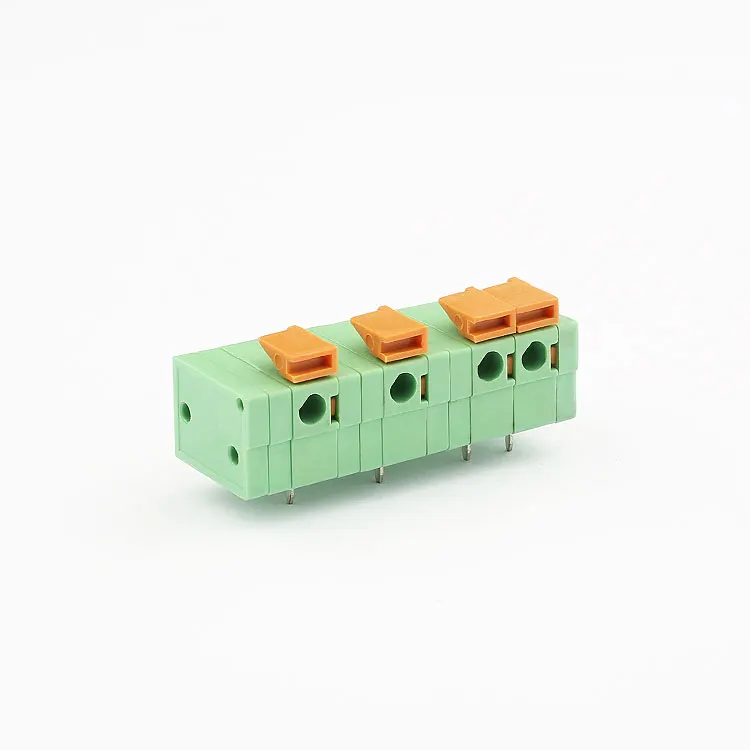

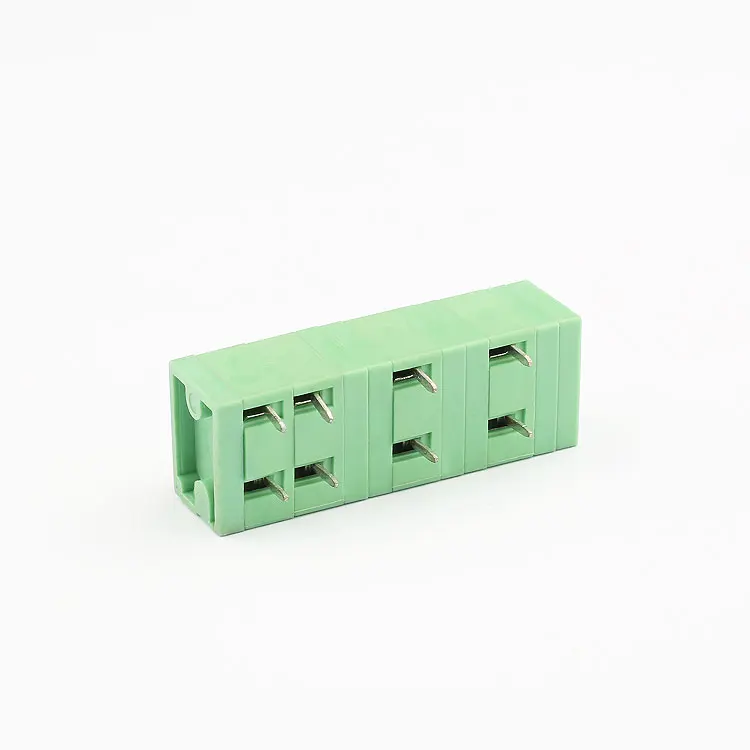

Why Choose Our Spring PCB Terminal Block Connector?
Our spring PCB terminal block connector stands out with its high conductivity, thanks to the brass, tin-plated contact, ensuring efficient electrical transmission. The PA66, UL94V-0 housing provides excellent flame resistance and insulation, making it suitable for a wide range of applications, including industrial equipment and automotive electronics.
What Are the Key Features?
Key features include a wide operating temperature range from -40°C to 150°C, a rated voltage of up to 450V, and a rated current of 16A. The low contact resistance of 20mΩ and high insulation resistance of >5000MΩ DC500V ensure stable and reliable connections. Additionally, it is CQC, CE, and ROHS certified, meeting international safety and quality standards.
How Does It Benefit Your Business?
As a factory-direct supplier, we offer wholesale options, allowing you to purchase in bulk at competitive prices. Our comprehensive after-sales service, including technical support and warranty coverage, ensures your satisfaction and peace of mind. Choose our spring PCB terminal block connector for reliable, high-performance electrical connections that enhance the efficiency and safety of your projects.
