Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD6-21N-CB1B-W-G-01-AC220V
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
DPST
|
|
Dimension Code
|
B1 (21.2×16.3×15 , 19×14.5×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
AC220V
|
Why Choose Our Rocker Switch?

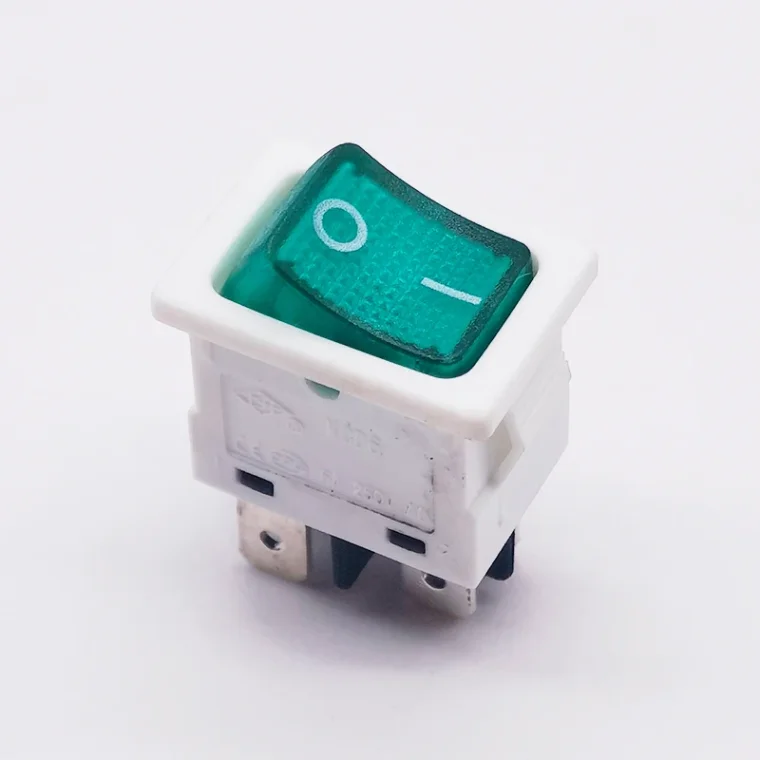

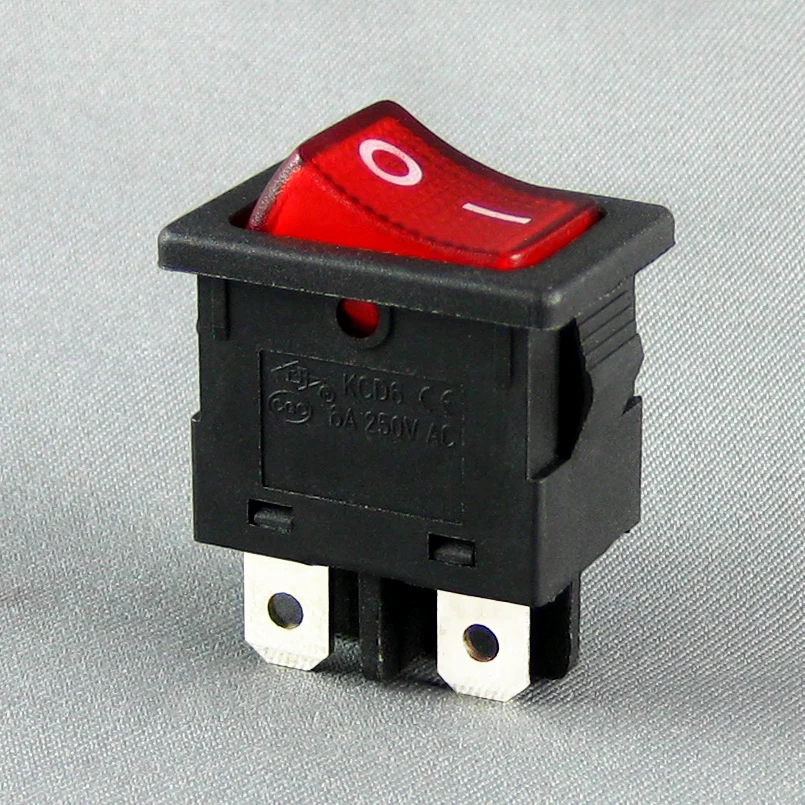

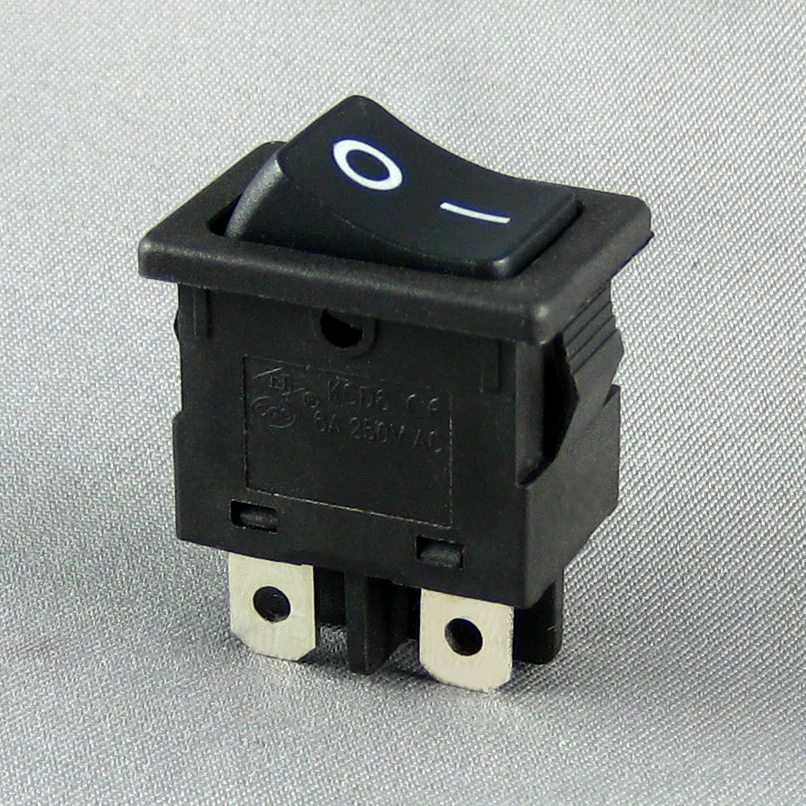

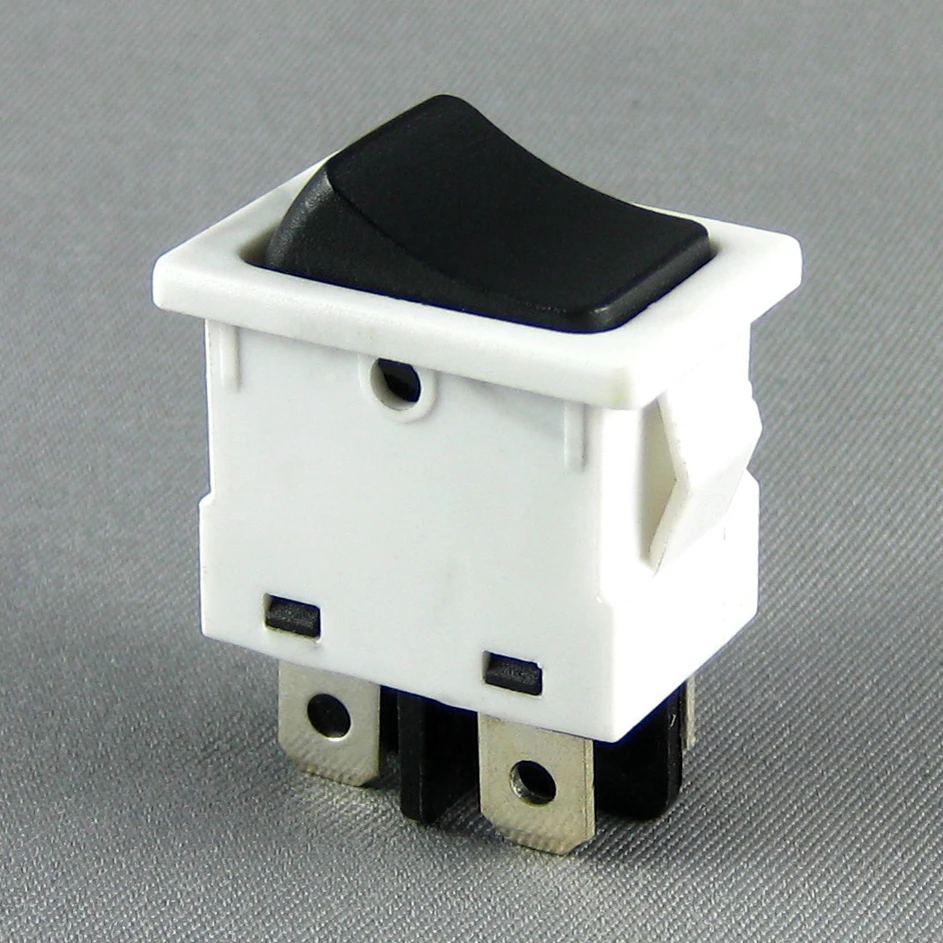

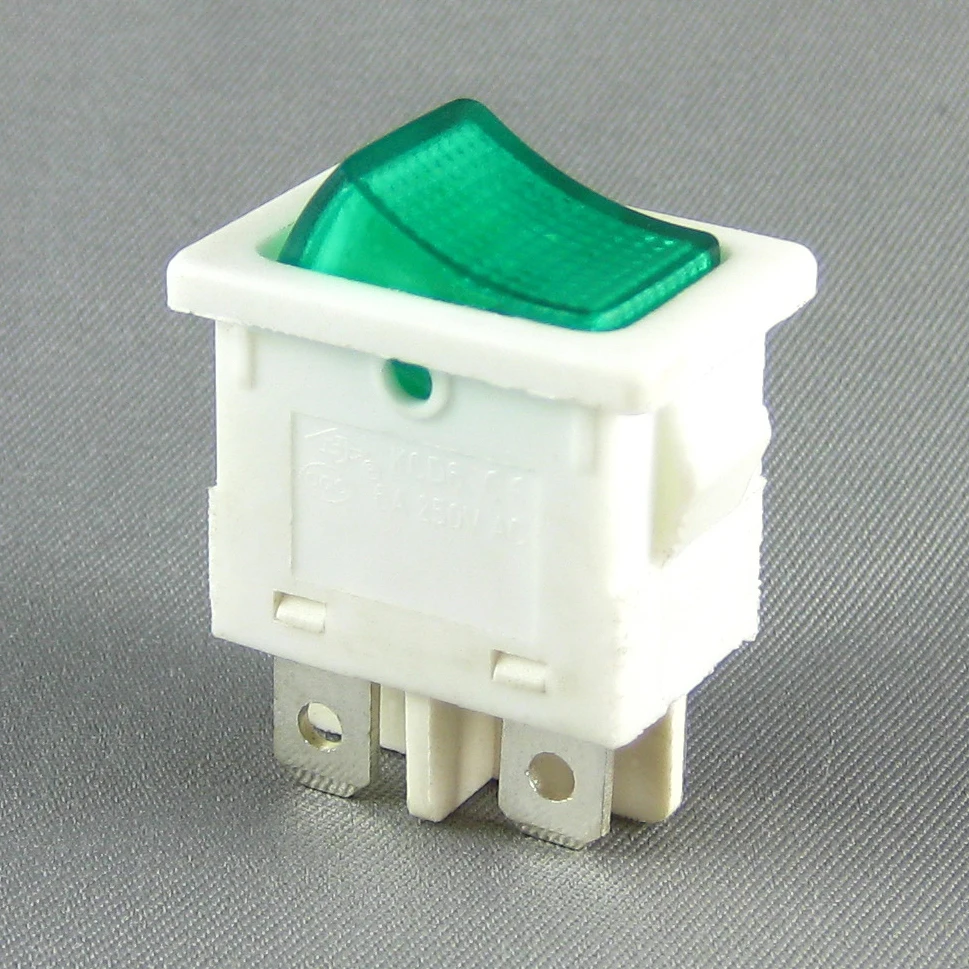

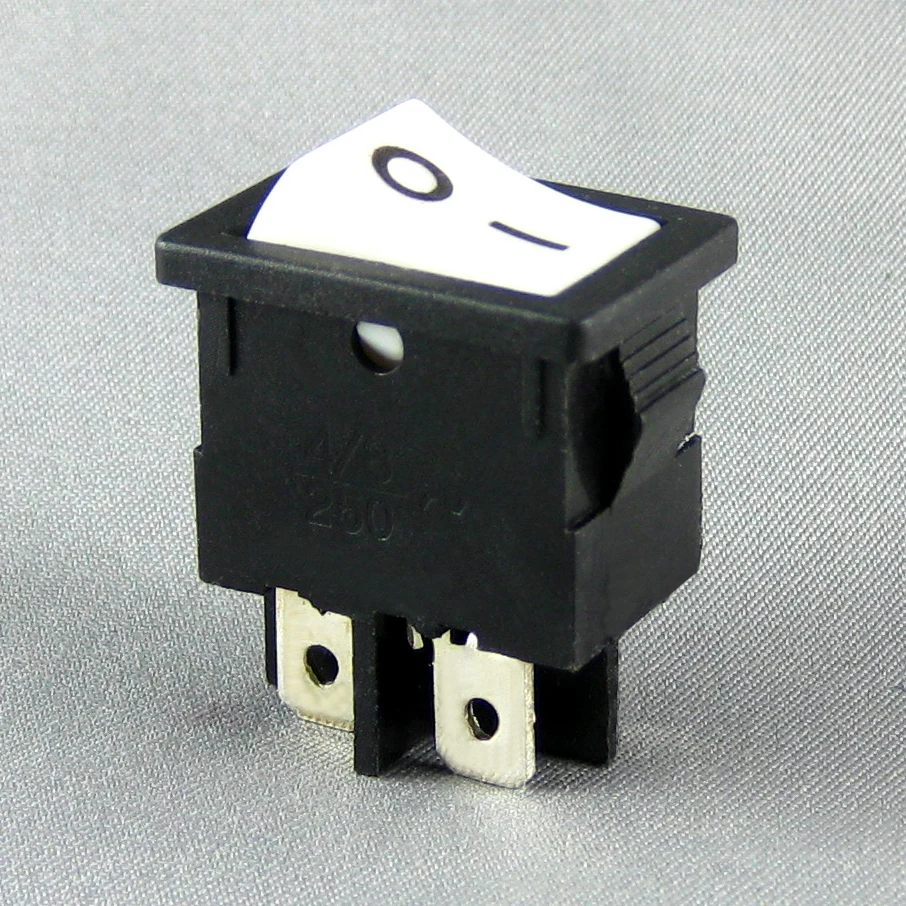

Our Rocker Switch KCD6 is a top choice for industrial and electric equipment due to its high durability, with a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles. It's IP67 rated, ensuring protection against dust and water immersion, making it suitable for harsh environments. The switch is illuminated, providing clear visual indication of its status, and it comes with a custom logo option for branding purposes.
What Makes Our Switch Stand Out?
Our switch stands out with its superior quality materials, including plastic, brass, PC, ABS, and copper, which ensure excellent contact and insulation resistance. It's CQC, CE, and ROHS certified, meeting international safety standards. As a factory supplier, we offer competitive wholesale prices and excellent customer service, ensuring you get the best value for your money.
Where Can Our Switch Be Used?
Our Rocker Switch KCD6 is perfect for a wide range of applications, including industrial equipment, electric appliances, control panels, and any application requiring a reliable, durable, and illuminated switch. Its custom logo option also makes it ideal for branding purposes, allowing you to showcase your company's logo and enhance your brand's visibility.
