Description

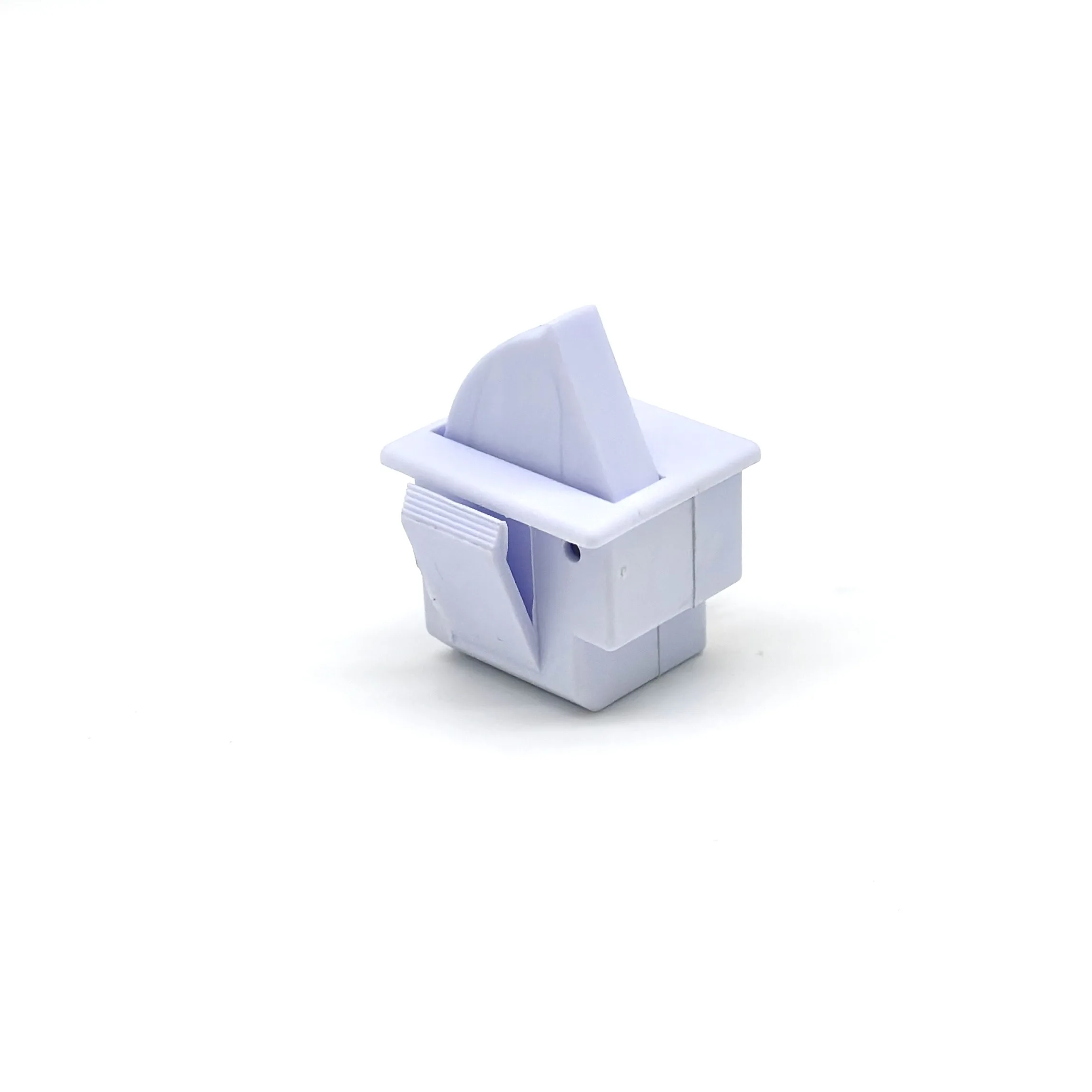

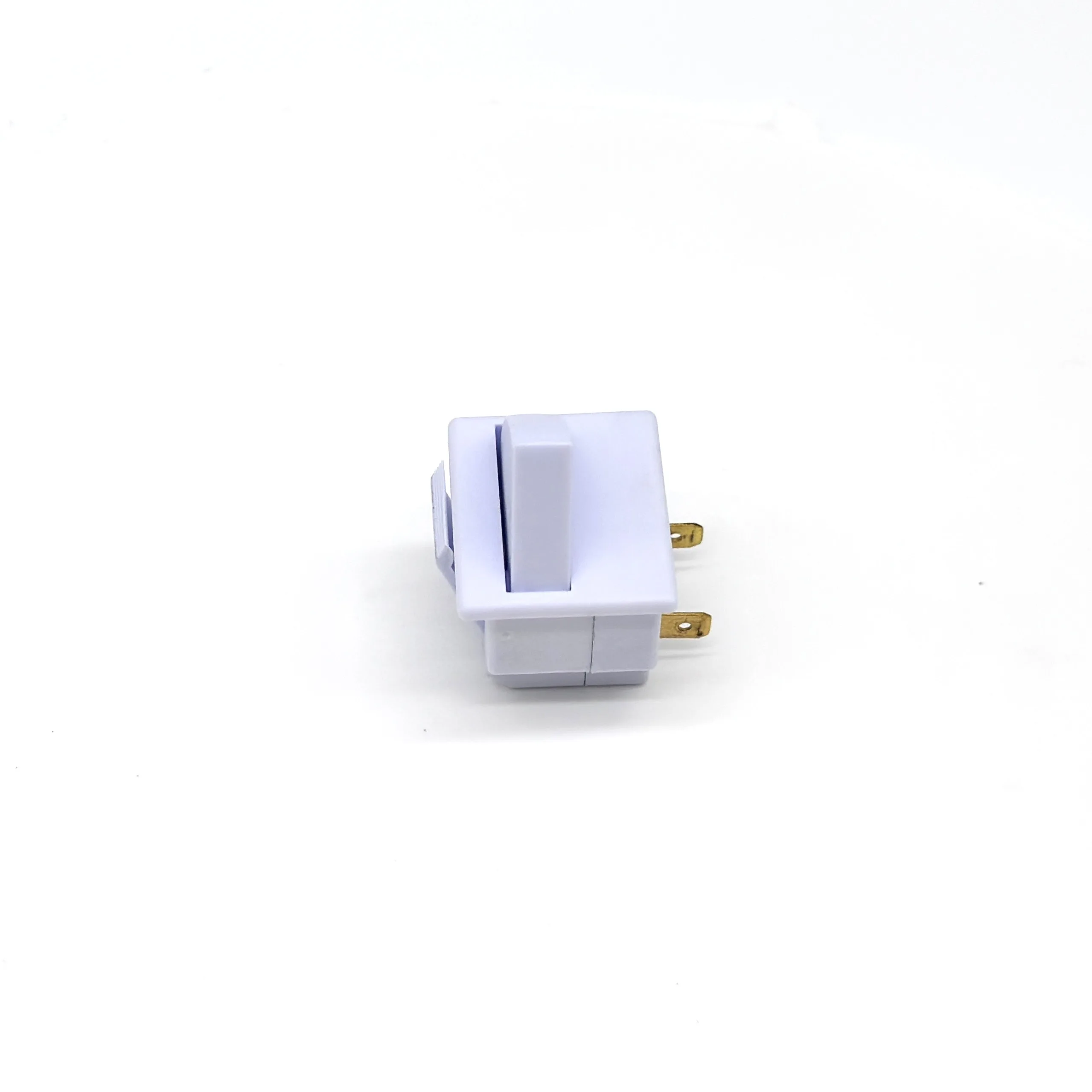

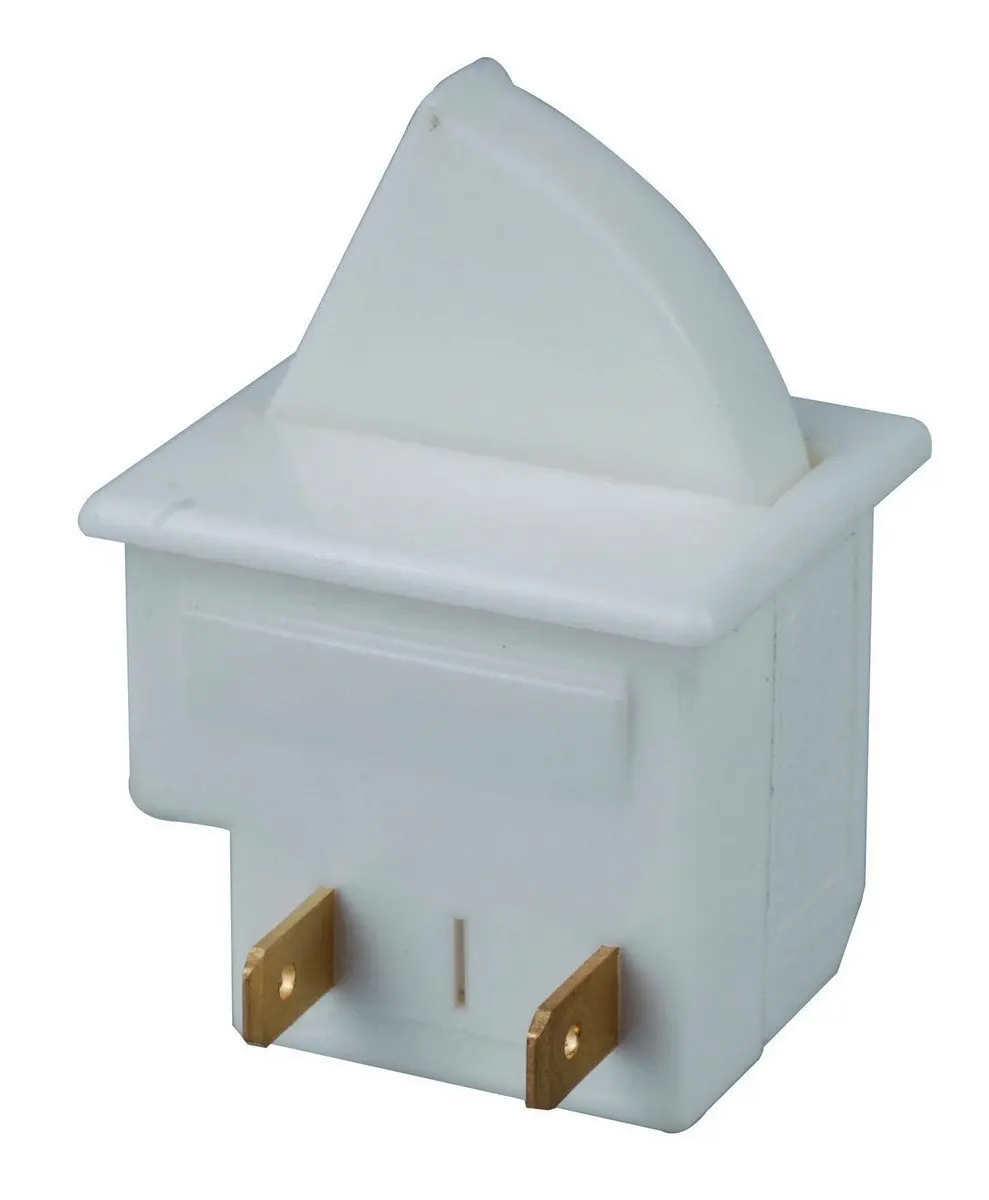

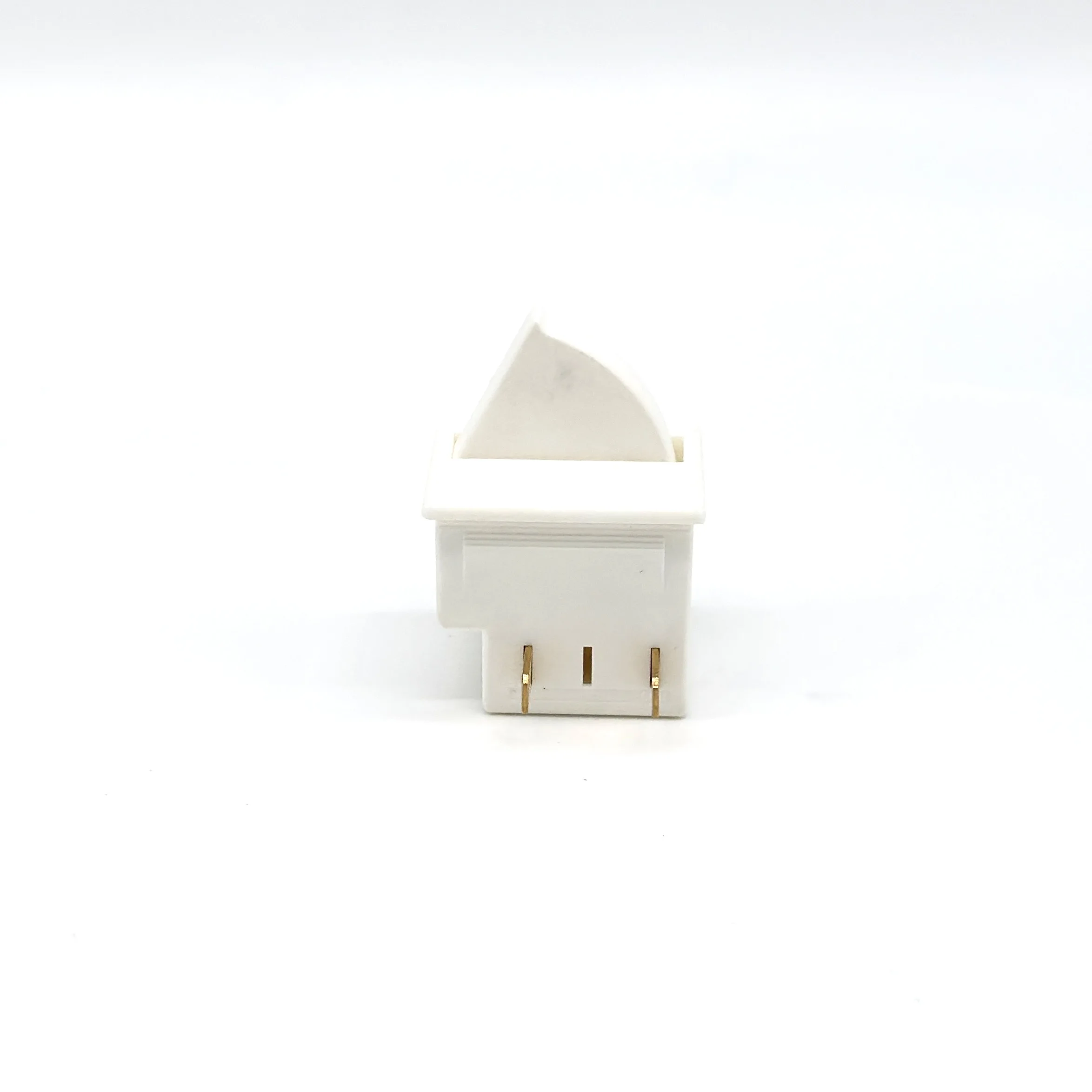

Our factory-direct Fan-shaped White Refrigerator Door Switches are a top choice for refrigerator manufacturers and suppliers worldwide. These switches are expertly crafted with a focus on durability and performance, making them stand out from competitors. Key specifications include a maximum current of 4A and a voltage of 250V AC, ensuring reliable operation. With an electronic life of 10,000 cycles and a mechanical life of 50,000 cycles, these switches are built to last. The contact resistance is ≤50MΩ, and the insulation resistance is 100MΩ, providing excellent electrical performance. The switches also feature a dielectric strength of 1000V and an IP40 protection level, ensuring safety and reliability in various environments. Operating temperature ranges from 25°C to 55°C, making them suitable for a wide range of applications. Our switches are available in 1NO, 1NC, and 1NO1NC configurations, offering flexibility to meet different needs. As a factory supplier, we offer competitive wholesale prices and ensure high-quality products. Choose our refrigerator door switches for their superior performance, durability, and value.
|

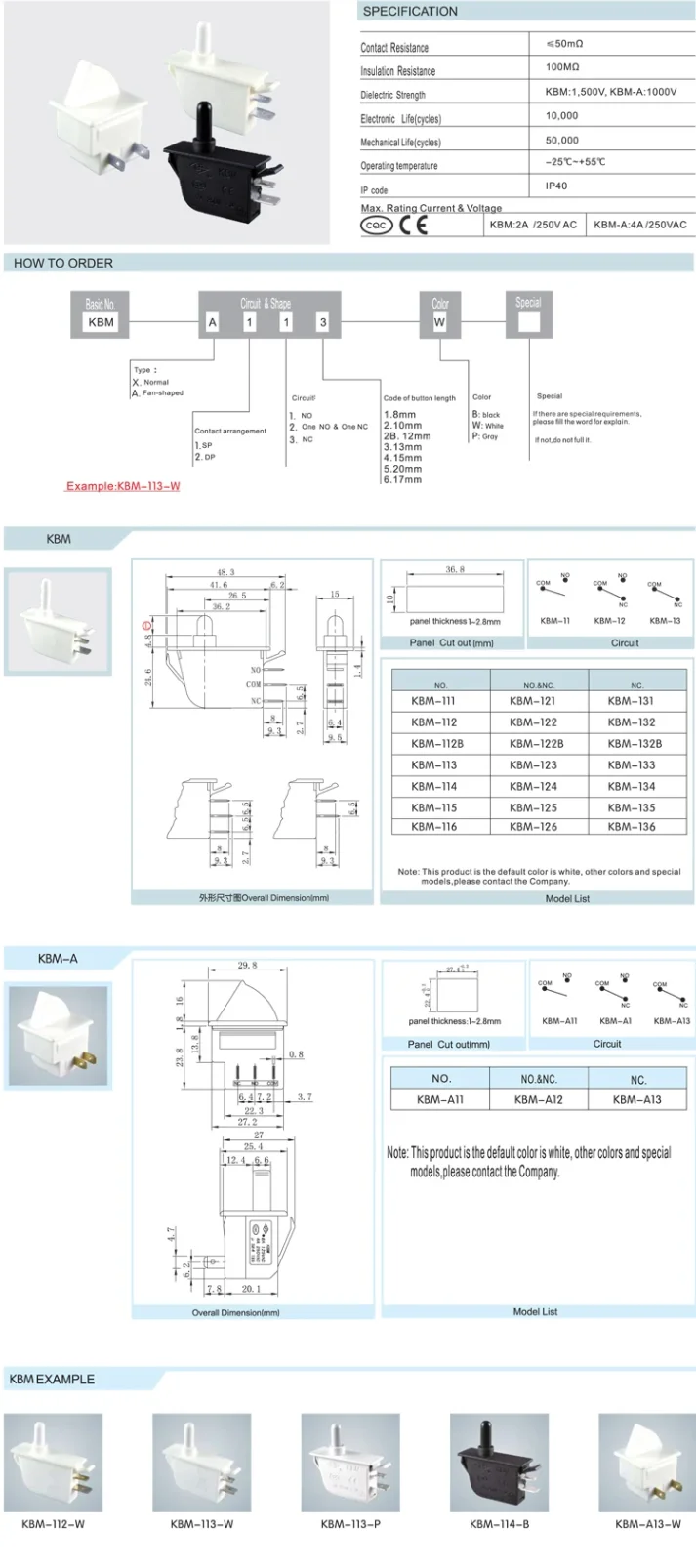

max.rating current & voltage
|
4A 250V AC
|
electronic life(cycles)
|
10000
|
|
contact resistance
|
≤50MΩ
|
mechanical life(cycles)
|
50000
|
|
insulation resistance
|
100MΩ
|
operating temperature
|
25T55
|
|
dielectric strength
|
1000V
|
IP code
|
IP40
|
Why Choose Our Refrigerator Door Switches?
Our refrigerator door switches are designed for durability and reliability, ensuring long-lasting performance in various environments. With a high electronic and mechanical life cycle, they offer excellent value for money.
Key Features and Benefits
The switches have a maximum current of 4A and a voltage of 250V AC, making them suitable for a wide range of refrigerators. The IP40 protection level ensures safety, and the high insulation resistance guarantees reliable operation.
Factory Wholesale Advantages
As a factory supplier, we offer competitive wholesale prices and ensure high-quality products. Our switches are customizable to meet specific needs, providing flexibility and convenience for our customers.
