Factory Wholesale Custom LED Push Button Switch | Supplier

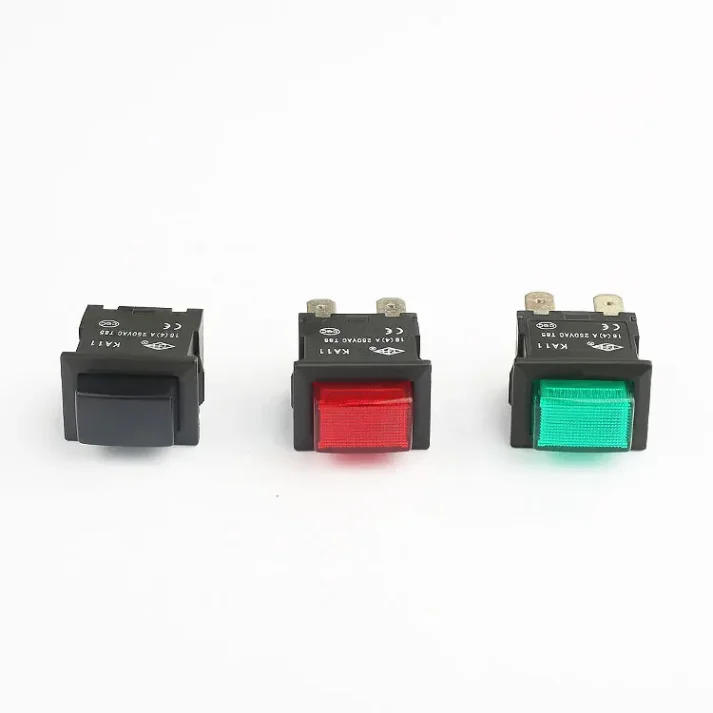

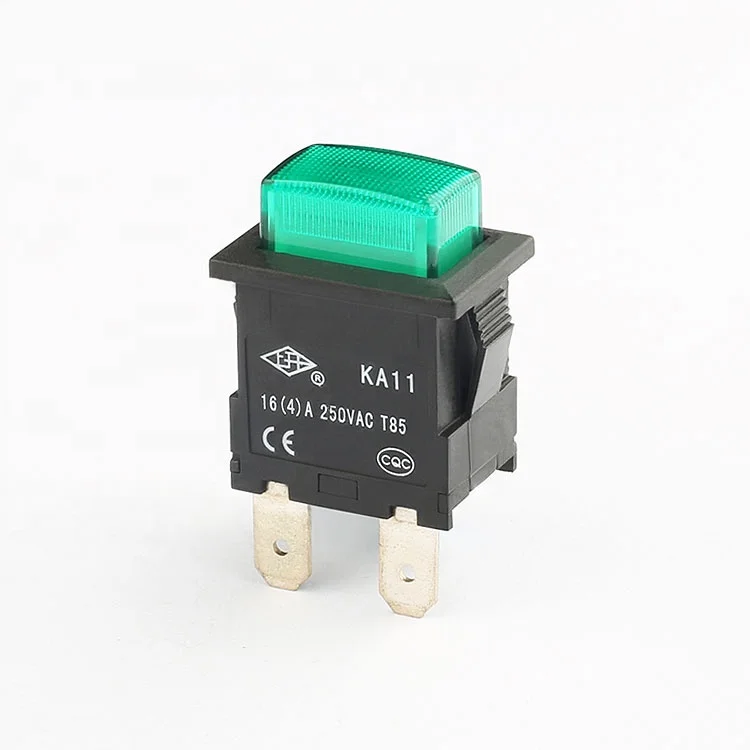

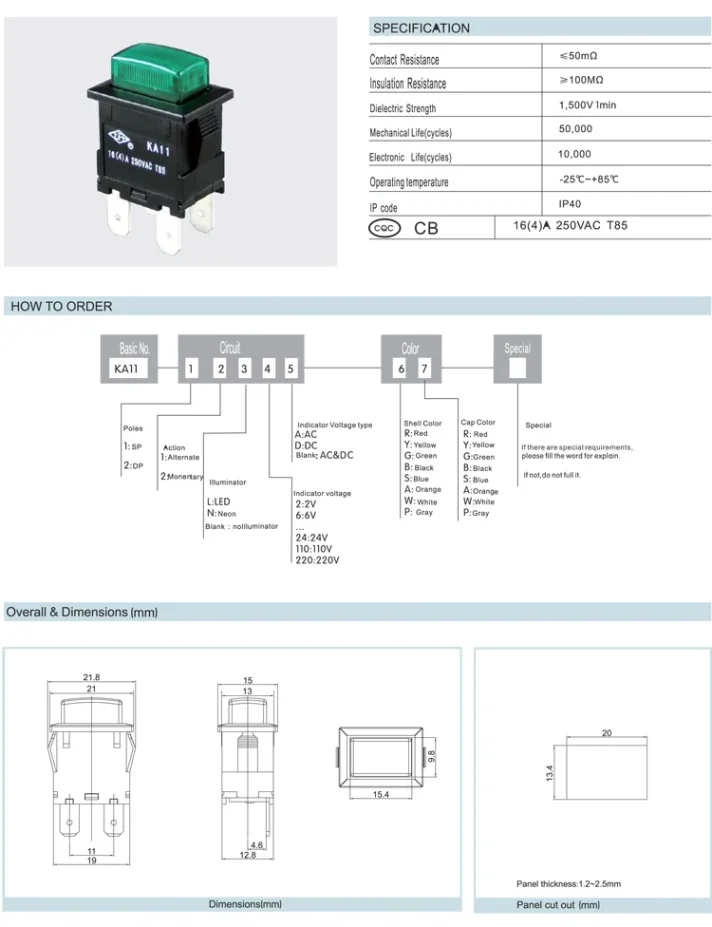

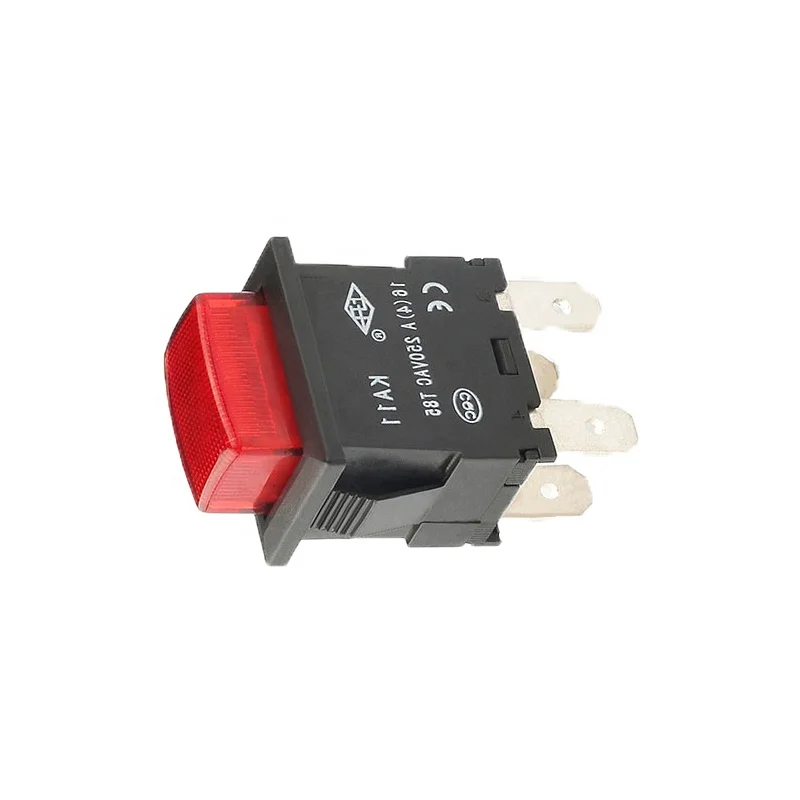

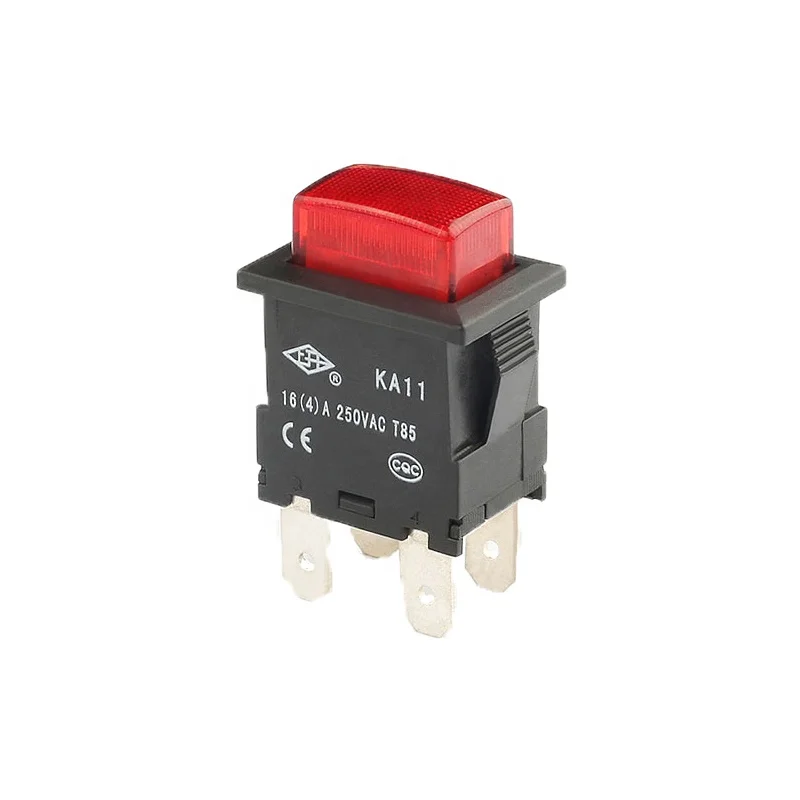

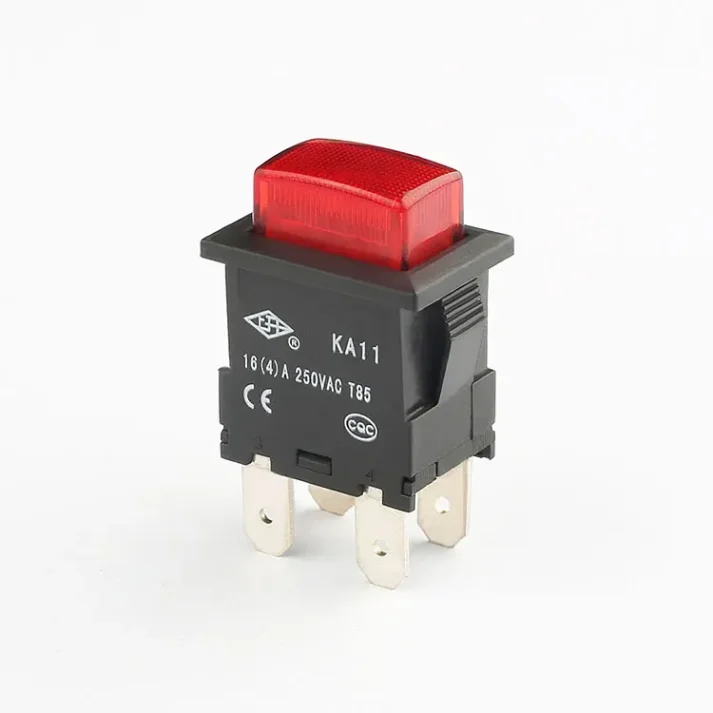

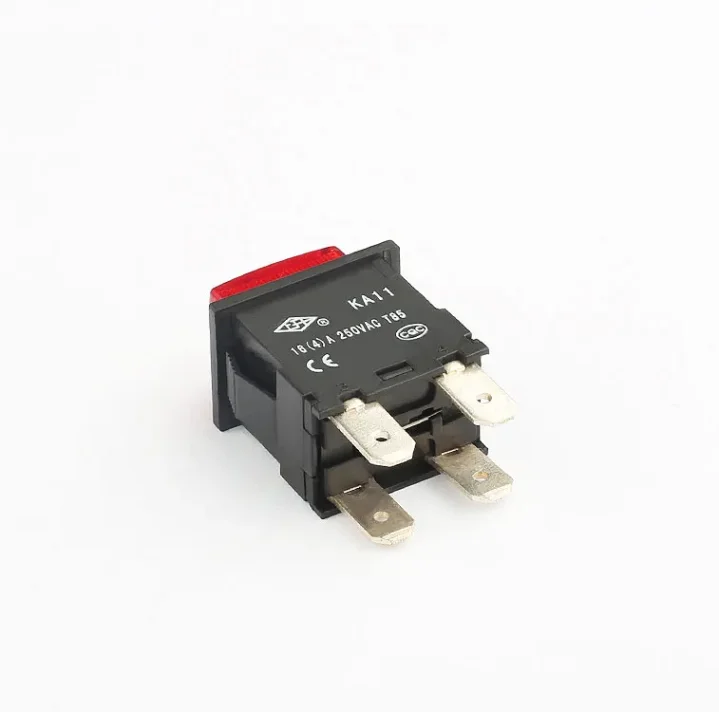

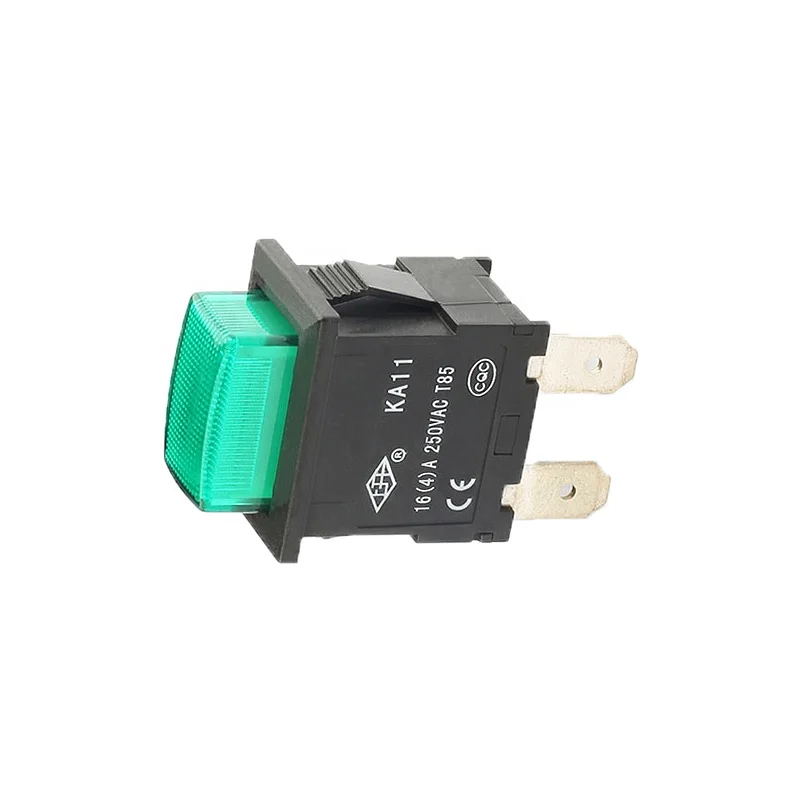

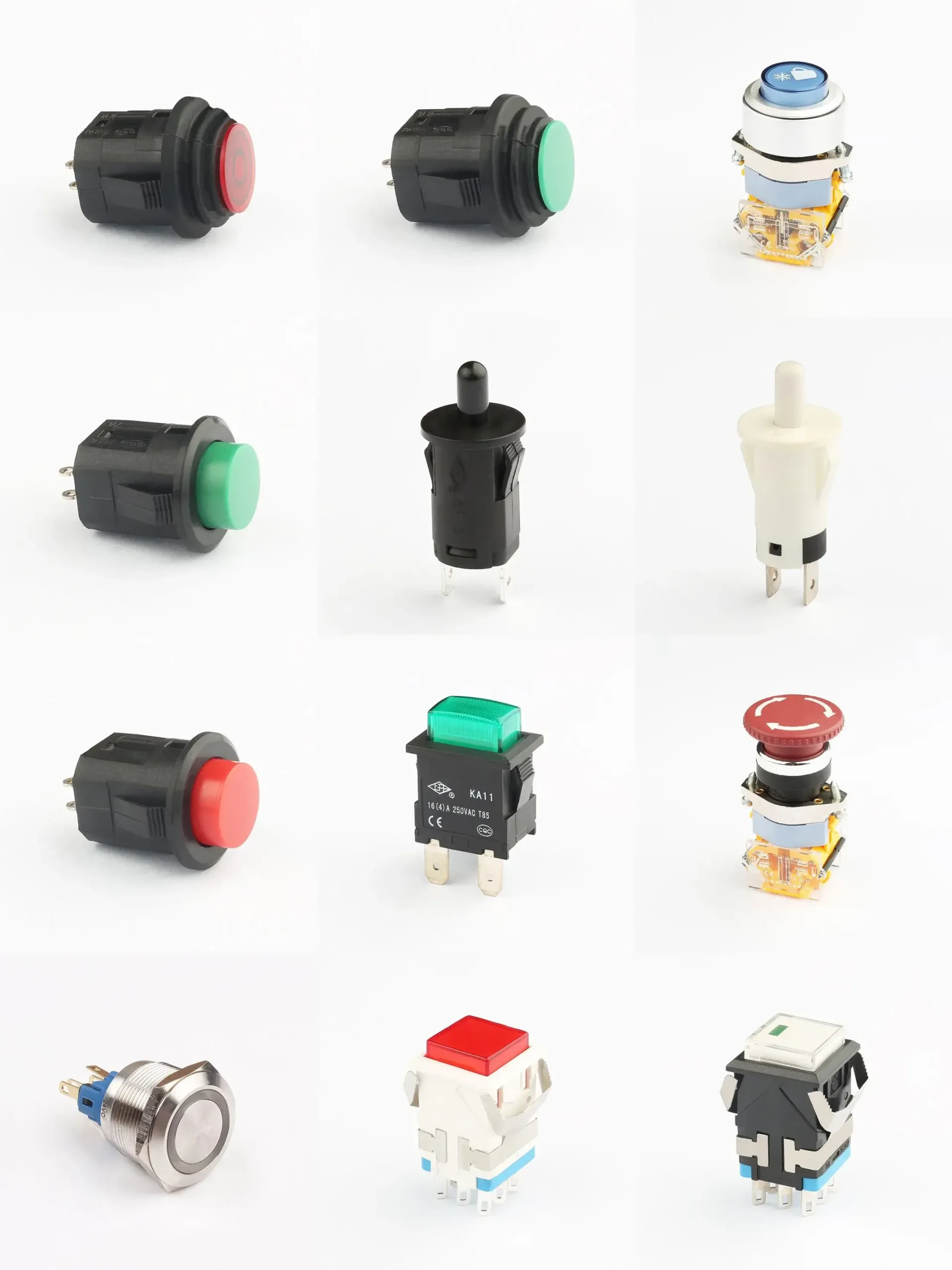

Introducing our high-quality Custom LED Push Button Switch, a versatile and reliable solution for various applications. As a factory supplier, we offer wholesale pricing and customization options to meet your specific needs. This switch features a sleek square design with an illuminated LED button, available in a black housing with a red button for easy visibility. It is perfect for use in industrial controls, machinery, automation systems, and more. Our switch boasts a protection level of IP40 (customizable), a maximum current of 16A, and a maximum voltage of 250V AC, ensuring durability and safety. With a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and dielectric strength of 1500V 1min, it provides excellent electrical performance. The switch has an electrical life of 10,000 times and operates within a temperature range of -25℃ to +85℃, making it suitable for various environments. It comes with certifications including CQC, CB, ROHS, and ISO9001, guaranteeing quality and compliance. The mounting hole size is 20*13.4 mm, and it accommodates panel thicknesses from 1.2-2.5mm. Choose our factory-direct, wholesale LED Push Button Switch for unbeatable value and performance.
