Description
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
Key Features and Advantages

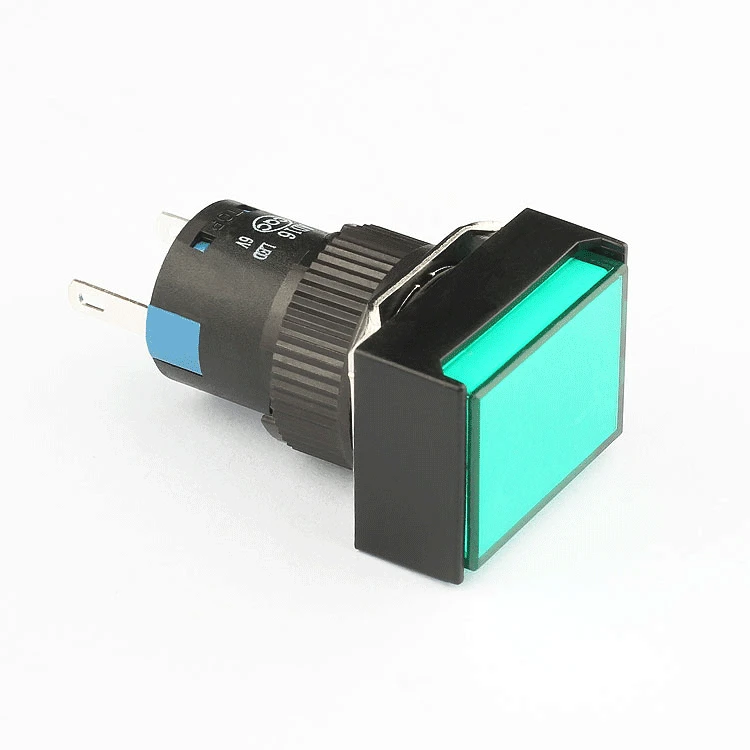

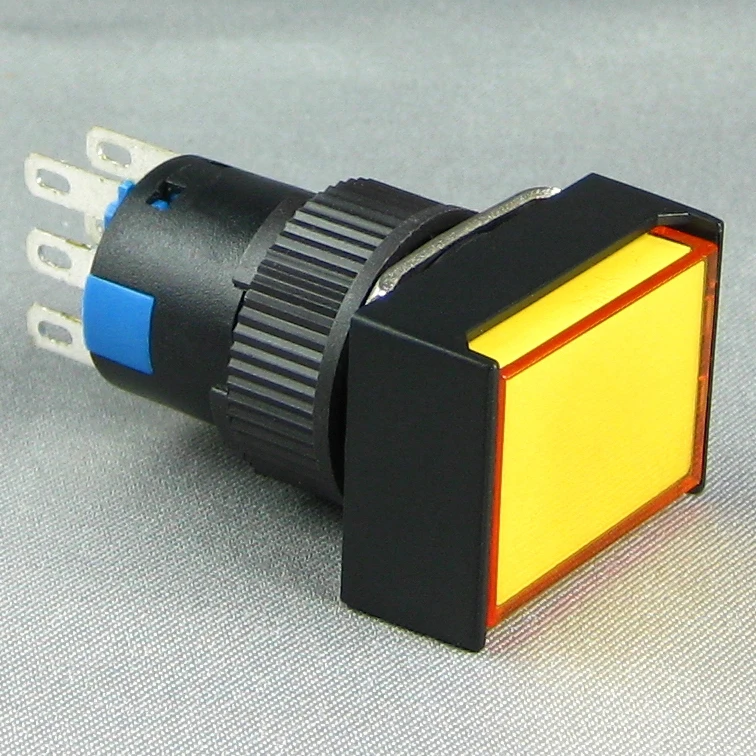

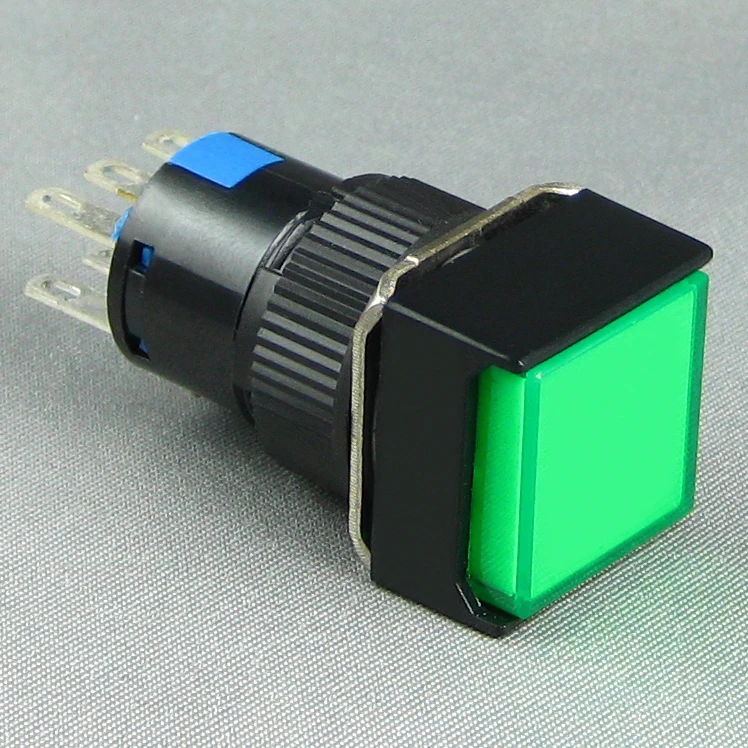

Our Push Button Switch stands out with its durable plastic construction, ensuring longevity and reliability. The illuminated design with clear LED indicators makes it ideal for low-light environments, enhancing safety and usability. With a wide range of configurations available, including single pole, double pole, NO, NC, 5-pin, and 6-pin, our switches cater to diverse industrial and commercial needs.
Why Choose Our Push Button Switch?
As a factory-direct supplier and wholesaler, we offer competitive pricing without compromising on quality. Our switches are certified by CQC, CE, and RoHS, meeting the highest industry standards. With a mechanical life of up to 200,000 cycles and an electrical life of 25,000 cycles, our switches are built to withstand the rigors of daily use. Additionally, our switches operate within a wide temperature range and offer excellent insulation and dielectric strength, ensuring safe and reliable performance.
Application Scenarios
Our Push Button Switch is perfect for a variety of applications, including industrial control systems, commercial equipment, and any scenario where reliable and durable switching is required. The illuminated design and clear LED indicators make it particularly suitable for low-light environments, enhancing user safety and convenience.
