Description
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green wire connector electric terminal block |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V 5.08 terminal block |
| Rated current | 16A brass terminal block |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/1Min |

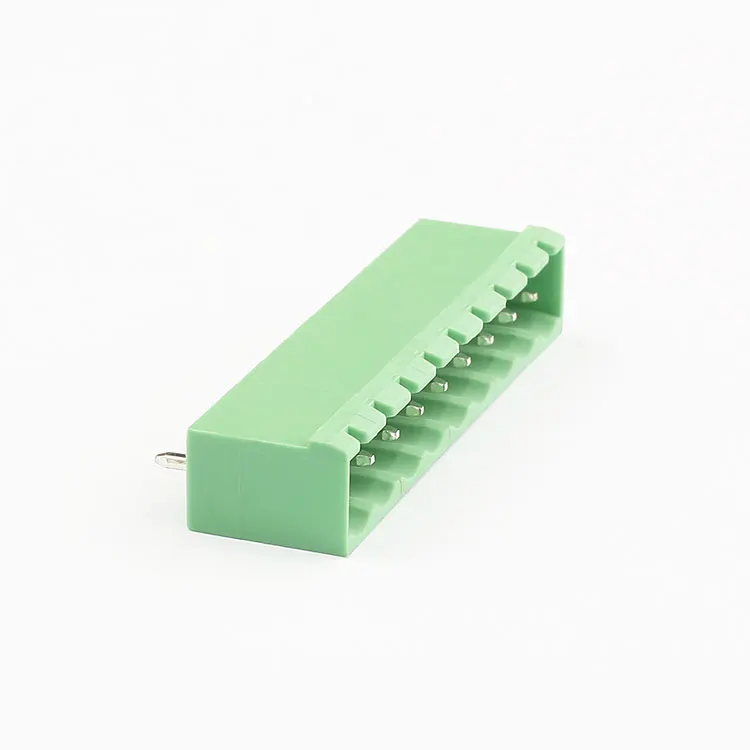

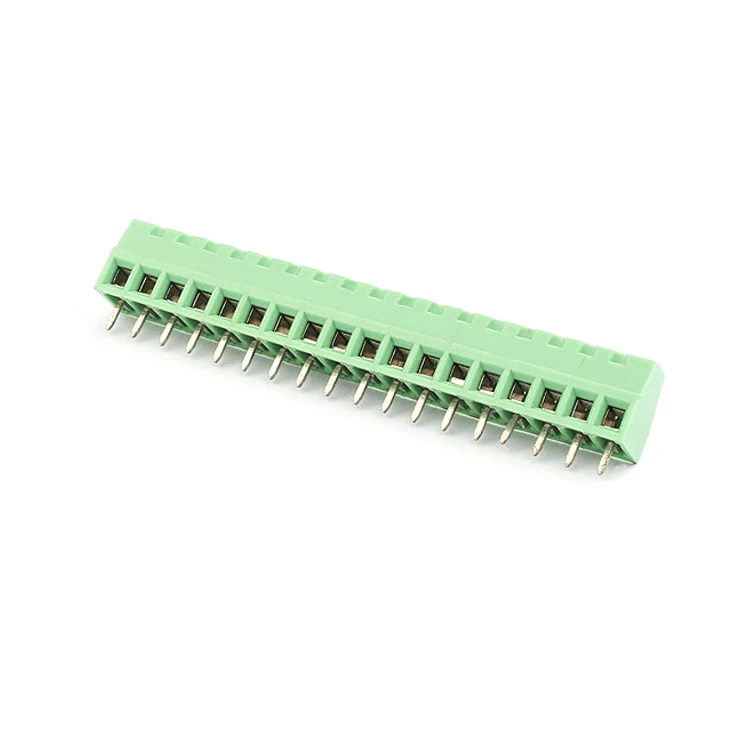

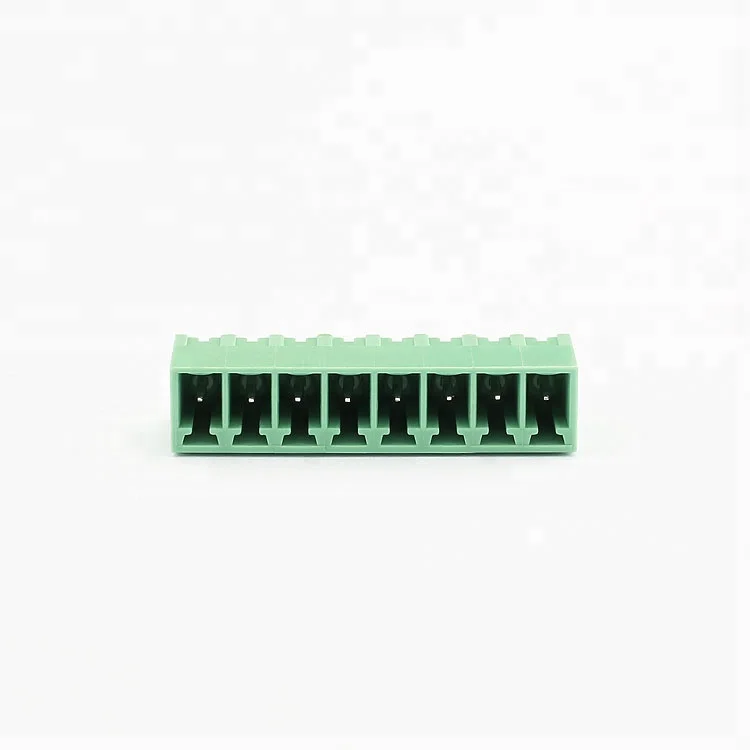

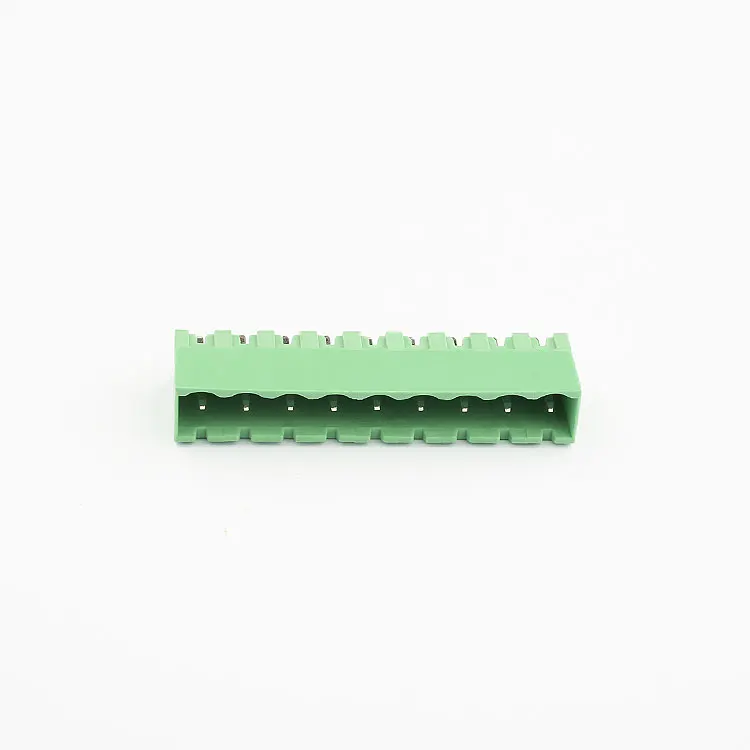

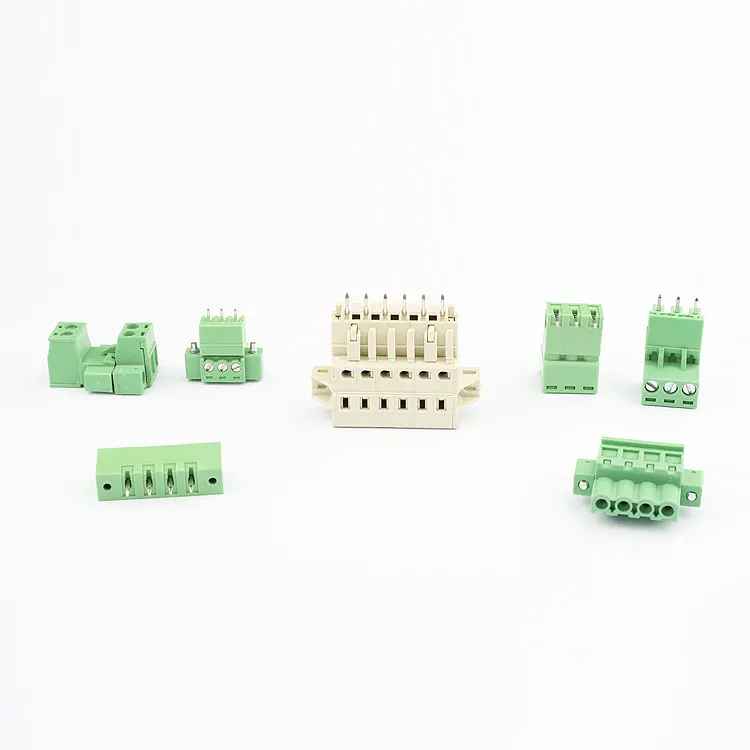

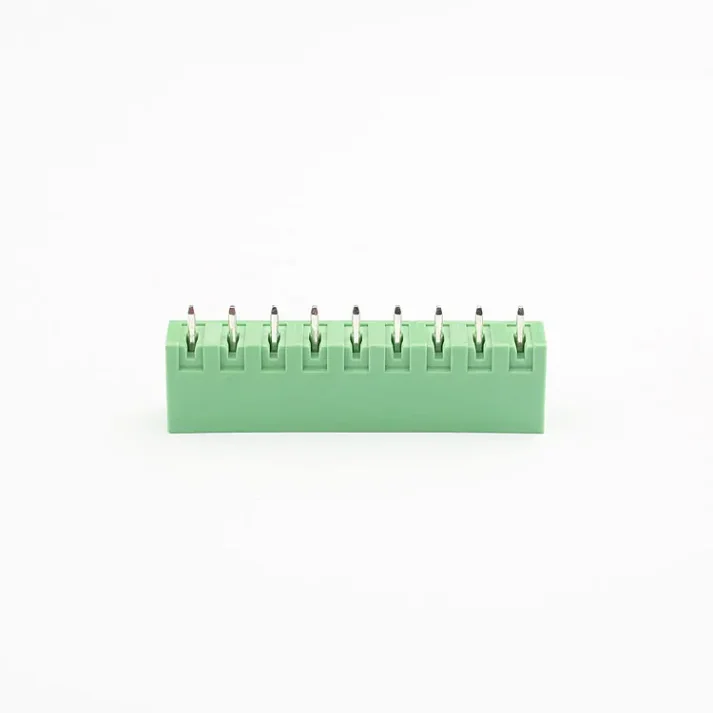

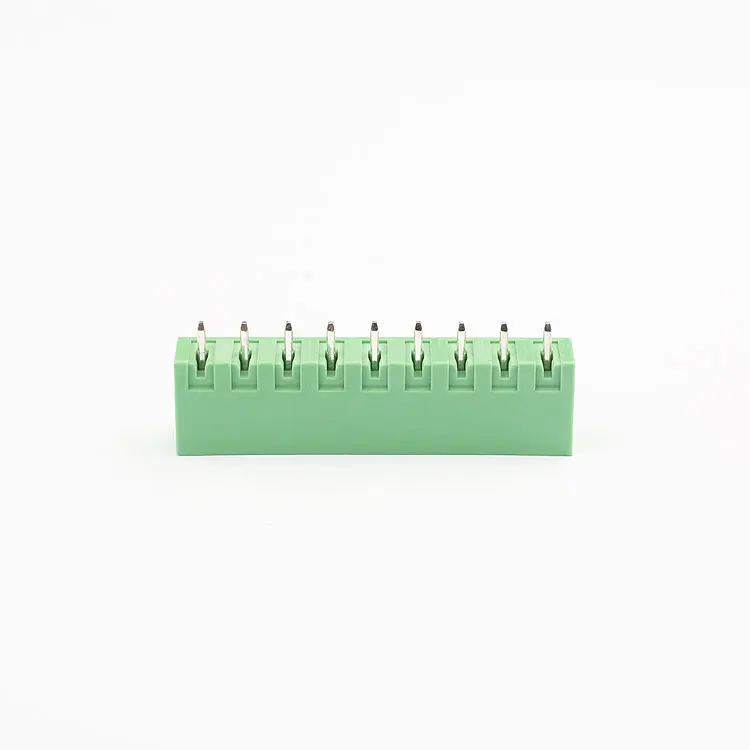

Why Choose Our Green 5.08mm Brass Terminal Block?
Our Green 5.08mm Brass Terminal Block stands out for its exceptional quality, durability, and affordability. As a factory-direct supplier, we eliminate the middleman, offering you the best prices without compromising on quality. The brass contacts, tin-plated for corrosion resistance, ensure long-lasting and reliable electrical connections. The PA66, UL94V-0 rated housing provides excellent insulation and fire resistance, making it safe for use in various environments.
What Are the Key Features of Our Terminal Block?
Our terminal block supports a wide range of conductor sizes, from 21 to 30 AWG, and is rated for 300V and 16A, making it suitable for a variety of applications. The green color not only adds a touch of style but also signifies its environmental compliance. With a low contact resistance and high insulation resistance, it ensures efficient and safe electrical connections. Additionally, its wide operating temperature range and short-time temperature tolerance make it suitable for use in harsh conditions.
How Can Our Terminal Block Benefit Your Business?
By choosing our factory-direct wholesale terminal blocks, you can significantly reduce your procurement costs while ensuring the highest quality standards. Our reliable after-sales service ensures that you have peace of mind knowing that any issues will be promptly addressed. Whether you're in the electrical, industrial, or home automation sector, our terminal blocks are the perfect choice for your electrical connection needs.
