Description
Key Specifications:
- Max. Rating Current & Voltage: 1A 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: 100MΩ
- Dielectric Strength: 1,500V
- Electronic Life (Cycles): Momentary: 10,000 | Alternate: 5,000
- Mechanical Life (Cycles): Momentary: 50,000 | Alternate: 10,000
- Certification: CQC, CE
- Operating Temperature: -25℃~+55℃
- IP Code: IP40 (with IP41 option)
- Color Options: Red, Green, White
- Switch Combination: 1NO1NC, 1NO, 1NC
- LED Indicator: Yes
Advantages:
- High Durability: With a long mechanical and electronic life, this switch is built to last.
- Waterproof Design: IP40/IP41 rating ensures protection against dust and limited water exposure.
- Versatile Application: Suitable for a wide range of industrial and commercial uses.
- Factory Direct Pricing: As a factory supplier, we offer competitive wholesale prices.
After-Sales Service: We provide comprehensive after-sales support, including technical assistance and warranty coverage, ensuring your satisfaction with our products.

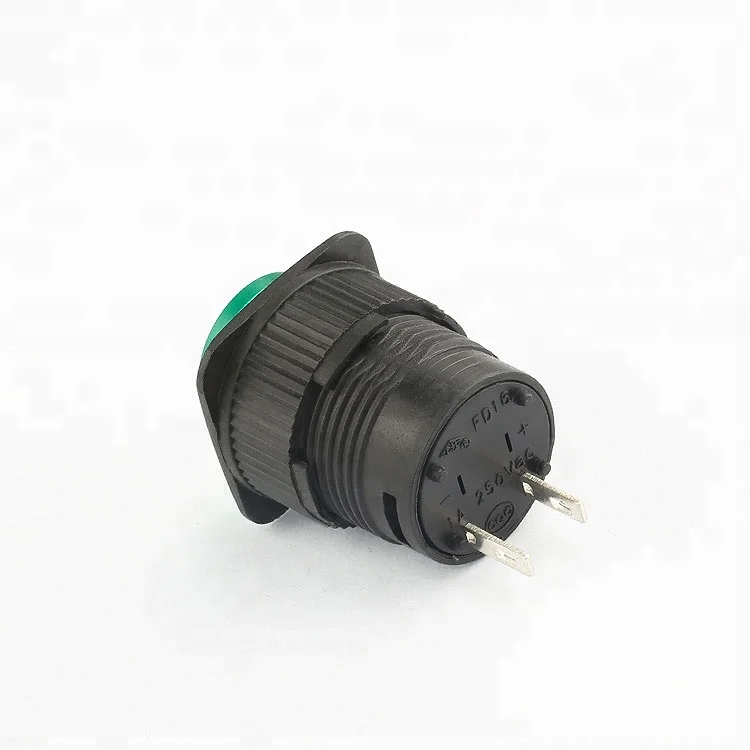

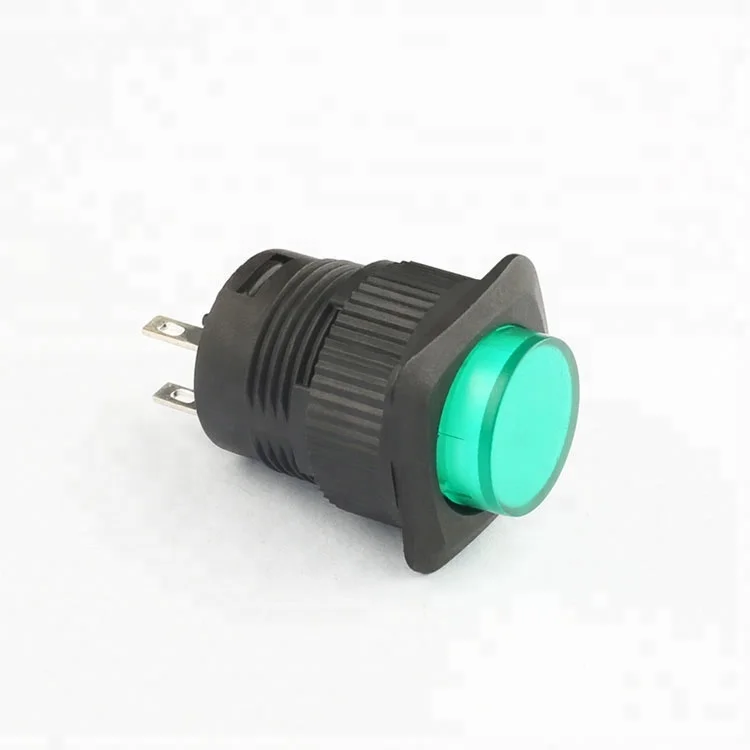

Choose our factory-supplied Green LED Momentary Push Button Switch for quality, reliability, and value.
| Max. Rating Current & Voltage |
1A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Resistance | 1,500V automatic reset pressure switch |
| Electronic life(cycles) | Momentary:10,000 Alternate:5,000 |
| Mechanical life(cycles) | Momentary:50,000 Alternate:10,000 |
| Certification |
CQC , CE |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 small waterproof push button switch |
Why Choose Our Green LED Momentary Push Button Switch?
Our Green LED Momentary Push Button Switch stands out for its durability, versatility, and value. With a long mechanical and electronic life, it ensures reliable performance in your electrical circuits. The IP40/IP41 rating provides protection against dust and limited water exposure, making it suitable for a wide range of industrial and commercial applications.
What Are the Key Features of This Switch?
This switch offers both momentary and alternate operation types, a maximum rating of 1A at 250V AC, and a LED indicator for easy status monitoring. It also comes with multiple switch combinations (1NO1NC, 1NO, 1NC) and color options (Red, Green, White) to suit your specific needs.
Why Buy from Our Factory?
As a factory supplier, we offer competitive wholesale prices and comprehensive after-sales support. Our products are certified by CQC and CE, ensuring quality and compliance with international standards. Choose us for quality, reliability, and value.
