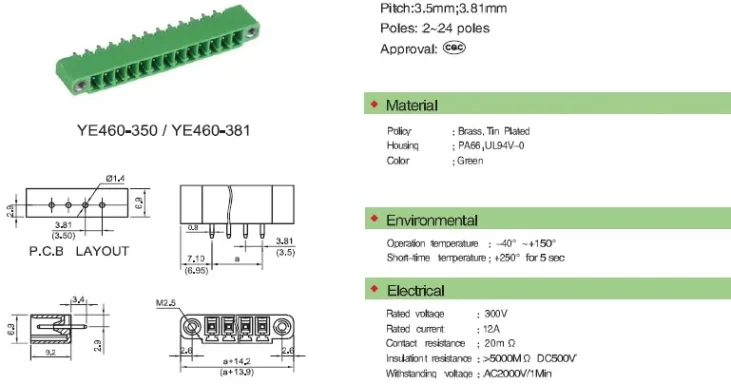

Description
|
pitch
|
3.5mm
|
max.rating current & voltage
|
12A 300V
|
|
color
|
green
|
contact resistance
|
20MΩ
|
|
poles
|
2-24 poles
|
operating temperature
|
-40° to +150°
|
Why Choose Our Terminal Blocks?
Our terminal blocks are designed for durability and reliability, making them ideal for industrial and automotive applications. The green PA66 material ensures resistance to environmental factors, while the UL approval guarantees safety standards. With a wide range of poles and a push-in connection method, installation is quick and easy. Our factory-direct pricing and wholesale availability make them a cost-effective choice for large projects.
What Are the Key Features?
Key features include a 3.5mm/3.81mm pitch, 2-24 poles, and a maximum continuous current of 12A. The terminal blocks can handle up to 300V and operate in temperatures ranging from -40°C to +150°C. They also feature low contact resistance and high insulation resistance, ensuring stable performance.
How Do We Ensure Quality?
As a factory supplier, we have strict quality control measures in place. Each terminal block undergoes rigorous testing to ensure it meets our high standards. We also offer free samples, allowing you to test the product before making a bulk purchase. Our after-sales service is available to assist with any issues or questions you may have.
